LG LW9422 series Owner's Manual

OWNER'S MANUAL

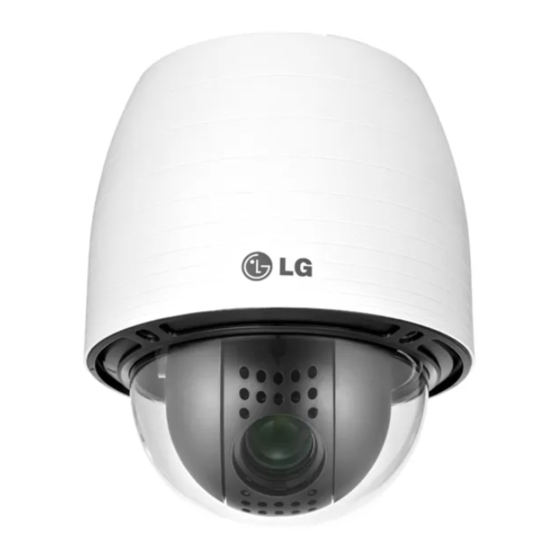

Network Dome Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
LW9422 series
Specifications
Item LW9422 Series
Image Sensor 6.49 mm (1/2.8 Type) CMOS Sensor
Total Pixels 1 920(H) X 1 080(V), 2M
Lens F1.6(Wide) to F2.1(Tele), f=5.3 to 63.6mm
x12 Optical Zoom, x12 Digital Zoom
Day&Night ICR Day & Night (Day / Night / Auto)
Mininum Color 1 lx (AGC High, Sens-up Off )
Illumination
B/W 0.1 lx (AGC High, Sens-up Off )
(30IRE)
White Balance Auto / ATW / One Push / Manual
Shutter Speed 1/160 to 1/10 000
Iris Auto / Manual
BLC Off / WDR/ BLC
3D-DNR OFF / LOW / MIDDLE / HIGH
AGC OFF / LOW / MIDDLE / HIGH
Privacy Mask 8 Masks
Multi-Streaming Dual Streaming
Video Out 1xBNC
Resolution (Maximum) Up to 1 920 x 1 080
Frame Rate (Maximum) 30 fps @ 1 080p (1 920 x 1 080)
Bit Rate 256 kbps to 10 240 kbps
Audio Compression G.711, G726
Audio In/Out 1/1
Sample Rate 8 KHz
Audio Bit Rate G.711: 64 kbps, G.726: 24 kbps, 32 kbps
Ethernet 10/100 Ethernet
Protocol TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this
product in the end user.
• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to
the manufacturer's instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces
or shall be provided with brushings.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
AB28
Remote S/W LG Ipsolute VMS or Web Client
Pan/Tilt Travel Range Pan:360˚(Endless), Tilt:180˚
Speed Preset 500˚/second
Jog 0.1˚ to 360˚/second
Preset 128
Pattern 4 Patterns (760 command/Pattern)
Auto Pan 2 points to 8 points
Group 9 Groups (8 presets/Group)
Sensor / Sensor 4 Inputs, Photo-Coupler Input
Alarm
Alarm 2 Relay Outputs, Max Load : DC 30 V 1 A / AC 125 V 0.3 A
IP Reset Button Support
Misc. Mount Accessory Mount Adaptor
Material Dome Polycarbonate
Internal Polycarbonate, ABS
External Aluminum
Rated Power PoE+ / AC 24 V (49 W)
Waterproof IP66
Fan Always ON
Heater Operation start from Internal Temperature 10˚C
Operation -20˚C to 50˚C
Temperature
Weight about 3.3 Kg
Dimension Ø 195.8 mm x 229 mm
Warning Disposal of your old appliance
• Do not install this equipment in a
1. When this crossed-out
confined space such as a bookcase or
wheeled bin symbol is
similar unit.
attached to a product
• Wiring methods shall be in accordance
it means the product is
with the National Electric Code, ANSI/
covered by the European
NFPA 70.
Directive 2002/96/EC.
2. All electrical and electronic
• This is a class A product. In a domestic
environment this product may cause products should be
disposed of separately from
radio interference in which case the
the municipal waste stream
user may be required to take adequate
via designated collection
measures.
facilities appointed by the
• To reduce a risk of fire or electric shock,
government or the local
do not expose this product to rain or
authorities.
moisture.
3. The correct disposal of
Caution
your old appliance will help
prevent potential negative
• This installation should be made by a
consequences for the
qualified service person and should
conform to all local codes. environment and human
health.
• To avoid electrical shock, do not open
4. For more detailed
the cabinet. Refer servicing to qualified
information about disposal
personnel only.
of your old appliance,
• The apparatus shall not be exposed to
please contact your city
water (dripping or splashing) and no
office, waste disposal
objects filled with liquids, such as vases,
service or the shop
shall be placed on the apparatus.
where you purchased the
product.
To disconnect power from mains, pull
EEE Compliance with Directive.
out the mains cord plug. When installing
(for Turkey only)
the product, ensure that the plug is easily
accessible.
Important Safety Instructions
LG Electronics hereby declares
1. Read these instructions.
that this/these product(s) is/are
2. Keep these instructions.
in compliance with the essential
3. Heed all warnings.
requirements and other relevant
4. Follow all instructions.
provisions of Directive 2004/108/
5. Do not use this apparatus near water.
EC, 2006/95/EC, and 2009/125/EC.
6. Clean only with dry cloth.
European Standards Centre:
7. Do not block any ventilation openings.
Krijgsman 1, 1186 DM
Install in accordance with the
Amstelveen The Netherlands
manufacturer's instructions.
Part Names and Functions
a
b
c
d
e
f
g
h
i
Handling of the unit
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
Be careful not to spill water or other liquids on
apparatus (including amplifiers) that
the unit. Be cautious not to get combustible or
produce heat.
metallic material inside the body. If used with
9. Do not defeat the safety purpose of
foreign matter inside, the camera is liable to
the polarized or grounding-type plug.
fail or to get cause of fire or electric shock.
A polarized plug has two blades with
one wider than the other. A grounding • Remove dust or dirt on the surface of the
type plug has two blades and a third lens with a blower.
grounding prong. The wide blade or the
• Use a dry soft cloth to clean the body. If it
third prong are provided for your safety.
is very dirty, use a cloth dampened with a
If the provided plug does not fit into
small quantity of neutral detergent then
your outlet, consult an electrician for
wipe dry.
replacement of the obsolete outlet.
• Avoid the use of volatile solvents such
10. Protect the power cord from being
as thinners, alcohol, benzene and
walked on or pinched particularly at
insecticides.
plugs, convenience receptacles, and the
They may damage the surface finish and/
point where they exit from the apparatus.
or impair the operation of the camera.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand, tripod, Operating and storage
bracket, or table specified by the
location
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
Avoid viewing a very bright object (such as
moving the cart/apparatus combination
light fittings) during an extended period. Avoid
to avoid injury from tip-over.
operating or storing the unit in the following
locations.
• Extremely hot or cold places (operating
temperature -10 °C to 50 °C, however, we
recommend that the unit be used within
a temperature range of 0 °C to 45 °C)
• Damp or dust place
13. Unplug this apparatus during lightning
storms or when unused for long periods • Places exposed to rain
of time.
• Places subject to strong vibration
14. Refer all servicing to qualified service
• Close to generators of powerful
personnel. Servicing is required when
electromagnetic radiation such as radio
the apparatus has been damaged in any
or TV transmitters.
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
a BNC connector cover cap
b Video output BNC connector
c Data Port A (RJ-45)
Input data port for alarm (relay) signal. RS-485 data communication is not available.
d Data Port B (RJ-45)
Output data port for alarm (relay) signal.
e AUDIO IN (Line Level Input)
Input for a mono microphone, or a line-in mono signal.
f AUDIO OUT (Line Level Output)
Connect to an active speaker with a built-in amplifier.
g Power input jack
h ETHERNET Port
Connects to a PC or a network via a hub with a 10 BASE-T/100 BASE-TX cable attached
RJ-45 connector.
i Dome Cover
Accessories
• Software Installation CD
• Cover adaptor
• Mount adaptor
• RJ-45 Cable
• RJ-45 adaptor cable
• Wrench
• M3 SAMS Screws
