7 MODE SETTING BY THE ON SCREEN DISPLAY

Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The
contents once set are memorized in the scene files (A, B, C, D, E) selected, so if the power turns off, it is
unnecessary to set again when using the unit next time. When the setting is performed, select the menu of
the item to be set.

7 1 Using the Menus

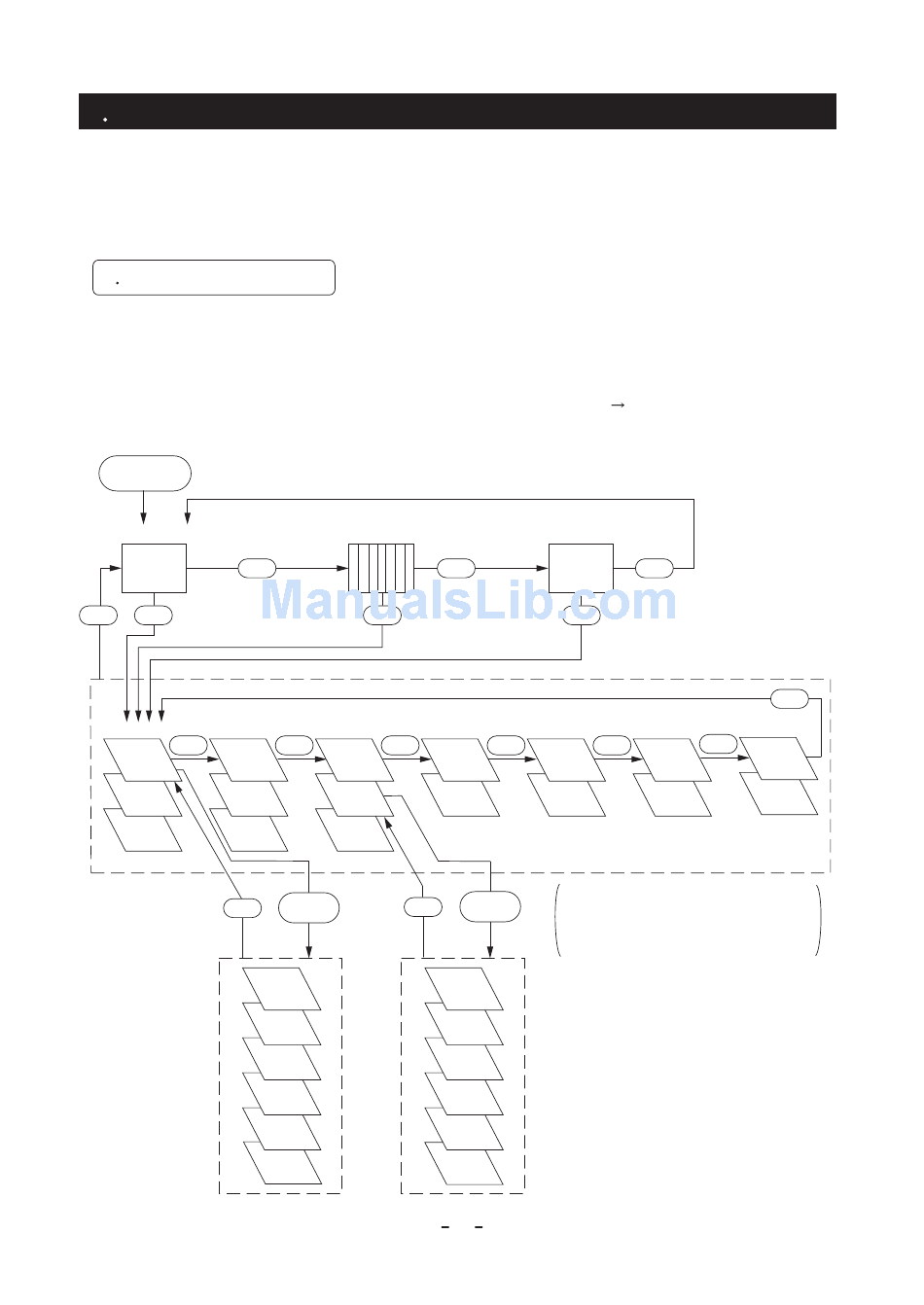

When the power turns on, the normal screen showing only the video signal appears. Change the output to
each screen (video signal output, color bar screen, Index menu, menus, and area menu) by using the [DISP],
[PAGE], [MENU UP], and [MENU DOWN] buttons.
* A menu is selected when pushing the [PAGE] button after moving the " " on the screen by the [MENU
UP], [MENU DOWN] button while the Index menu is displayed.
POWER SW
ON
Video signal output
DISP
DISP PAGE
1.SHUTTER 2.GAIN
PAGE
AUTO AUTO
MANU MANU
SS
OFF
DISP
Area menu
Color bar screen
PAGE
Menus
3.WHT BAL 4.PROCESS
PAGE PAGE
GAMMA
AWB
GAMMA
ATW
MANU
DATA
DISP
UP/DOWN
Area menu
A
B
C
D
E
USER
Index menu
DISP
PAGE
5.MATRIX
PAGE PAGE
O N
ON
OFF
OFF
The screen is changed to the area screen by
DATA
selecting AUTO in the 1.SHUTTER menu and
UP/DOWN
AWB in the 3.WHT BAL menu in the setting
screen For more details, refer to the item "7.2
Menus".
A
B
C
D
E
USER
16
DISP
PAGE
7.OPTION
6.SYNC
PAGE
Y/P /P
INT
b r
RGB
EXT.
