KD-CDA6 Operating Instructions
521 East 3rd Street, Mount Vernon, NY 10553
::
::
Phone
914.667.9700 Fax
914.668.8666
::
Web
www.keydigital.com
KD-CDA6_Manual.indd 2-1
Key Digital
, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
is at the forefront of the video industry for Home
Theater Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers. We
provide total video system solutions because we
know and help drive the technology, the industry, the
business, and all the latest up-and-coming standards.
But most of all, we know exactly what you need for your
unique application - the right solution.
Rev 1 – Sept 2006
KD-CDA6
6 Channel Component/RGBHV Video/Audio Distribution Amplifier

Operating Instructions

Xplosion Series

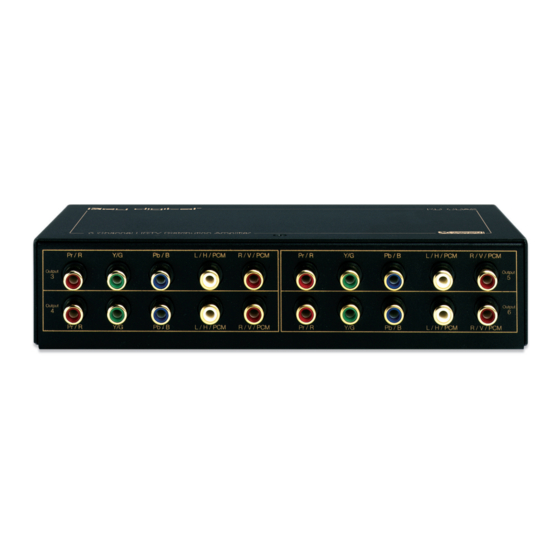

KD-CDA6 is the perfect choice for high-quality and economical 6-channel
video and audio signal distribution from any HDTV or SDTV component video source, including
1080p. It delivers color-rich, artifact-free, and pristine HDTV and SDTV images to component
HDTV-ready monitors. KD-CDA6 is the ideal product for driving your HD and SD sources to
plasma displays, front and rear projectors, direct view monitors, and video walls.
