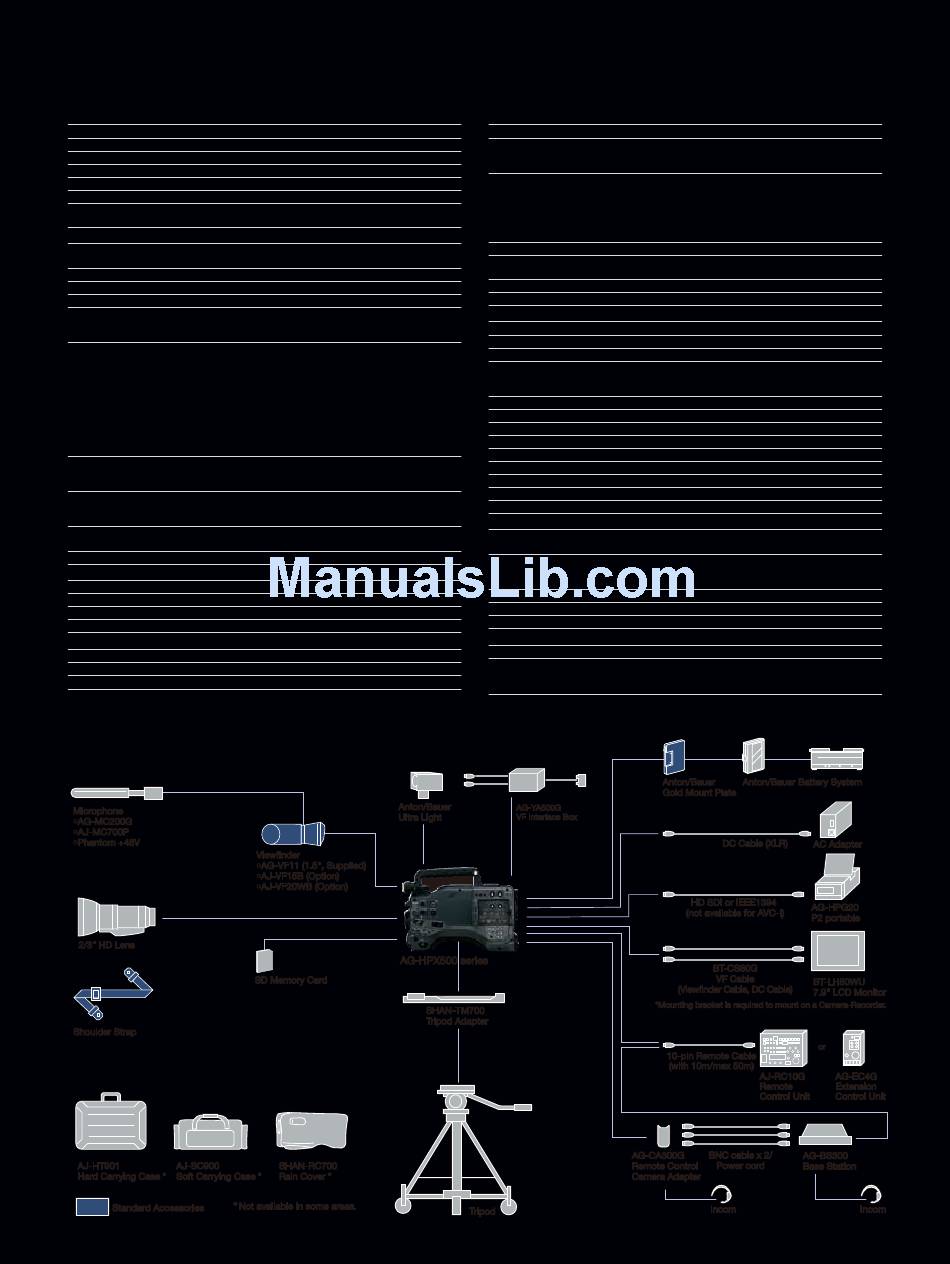

Specifications

General
Supply Voltage:
DC12V (11V to 17V)
Power Consumption:
Approx. 23W (when 1.5"CRT viewfinder, 3.5" LCD monitor used)
Operating Temperature: 32°F to +104°F (0°C to +40°C)
Storage Temperature:
−4°F to +140°F (−°20°C to +60°C)
Operating Humidity:
10% to 85% (no condensation)
Weight:
Approx. 8.38 lbs (3.8kg) excluding battery and accessories
Dimensions (WxHxD):
5-5/8" x 10-3/8" x 12-5/8" (140 mm x 261 mm x 318 mm)
excluding handle and prominent parts
Camera
Pick-up Device:
3CCD (2/3-inch interline transfer type
and progressive modes supported)
Lens Mount:
2/3" bayonet type
Optical Color Separation: Prism system
ND Filter:
4 position (Clear, 1/4, 1/16, 1/64)
Gain Selection:
60i/60p/50i/50p mode: 0/+3/+6/+9/+12/+18 dB
30p/24p/24pA/25p mode: 0/+3/+6/+12dB
[Slow Shutter Mode, Gain fix (0dB)]
Shutter Speed (Preset): 60i/60p mode: 1/60 (OFF) sec., 1/100 sec., 1/120 sec., 1/250 sec.,
1/500 sec., 1/1000 sec., 1/2000 sec.
30p mode:
1/30(OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec.
24p/24pA mode: 1/24(OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec.
50i/50p mode: 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec.,
1/500 sec., 1/1000 sec., 1/2000 sec.
25p mode:
1/25(OFF), 1/50, 1/60, 1/120, 1/250, 1/500,
1/1000 sec.
Shutter Speed (Variable): 60i mode: 1/60.0 to 1/249.8
24p/24pA mode: 1/24.0 to 1/249.8
50i/50p mode: 1/50.0 to 1/249.8
Shutter Speed (Slow):
60i/60p mode: 1/15, 1/30
24p/24pA mode: 1/12 (720p mode only)
50i/50p mode: 1/12, 1/25
Variable Frame Rate :
60 Hz mode: 12/18/20/22/24/26/30/32/36/48/60 fps (frame/sec.)
50 Hz mode: 12/18/20/23/25/27/30/32/37/48/50 fps (frame/sec.)
Sensitivity:
F10 (Typical) at 2000 lx
Video P2 HD General
Sampling Frequency:
Y: 74.25MHz P
B
Quantizing:
8 bits
Compression:
Compression ratio 1/6.7, DCT + variable length code
Recording Bit Rate:
100Mbps
Audio P2 HD General
Sampling Frequency:
48 kHz
Quantizing:
16 bit/4CH
Head Room:
20 dB/18 dB (Selectable)
Microphone
Microphone
•AG-MC200G
•AG-MC200G
•AJ-MC700P
•AJ-MC700P
•Phantom +48V
•Phantom +48V
2/3" HD Lens
2/3" HD Lens
Shoulder Strap
Shoulder Strap
AJ-HT901
AJ-HT901
AJ-SC900
AJ-SC900
Hard Carrying Case *
Hard Carrying Case *
Soft Carrying Case *
Soft Carrying Case *
*
*
Not available in some areas.
Not available in some areas.
Standard Accessories
Standard Accessories
30p mode: 1/30.0 to 1/249.8
25p mode: 1/25.0 to 1/249.8
30p mode: 1/15
25p mode: 1/12
/P
: 37.125Mhz
R
Anton/Bauer
Anton/Bauer
Ultra Light
Ultra Light
Viewfinder
Viewfinder
•AG-VF11 (1.5", Supplied)
•AG-VF11 (1.5", Supplied)
•AJ-VF15B (Option)
•AJ-VF15B (Option)
•AJ-VF20WB (Option)
•AJ-VF20WB (Option)
AG-HPX500 series
AG-HPX500 series
SD Memory Card
SD Memory Card
SHAN-TM700
SHAN-TM700
Tripod Adapter
Tripod Adapter
SHAN-RC700
SHAN-RC700
Rain Cover *
Rain Cover *
Memory Card Recorder
Recording Format:
DVCPRO HD/DVCPRO 50/DVCPRO/DV selectable
Audio Recording Format: PCM digital recording 48 kHz /16 bits
4ch (DVCPRO HD / DVCPRO 50),
2ch/4ch selectable (DVCPRO / DV)
Recording Time*:
DVCPRO HD, 4CH:
(Approx.)
64 minutes with one 64GB P2 Card (AJ-P2C064AG)
32 minutes with one 32GB P2 Card (AJ-P2C032RG)
16 minutes with one 16GB P2 Card (AJ-P2C016RG)
* Time shown above is when you record a series of 1 shot to P2 card. Depending on numbers of
shots you record, time will get shorter than the number shown above.
P2 Card Slot:
4 Slot (4G, 8G, 16G Card)
SD Card Slot:
SD Format standard (MMC not used)
1 Slot (Camera setup, Reading/Writing)
Recording File:
MXF File
File System:
FAT32
Input/Output Signal
Gen Lock:
BNC x 1, 1.0Vp-p, 75Ω,
Component Out:
D4 terminal (Component) , Y: 1.0Vp-p, 75 Ω, P
Video Out:
BNC x 1, 1.0Vp-p, 75Ω
SDI Out:
BNC x 1, 0.8Vp-p, 75Ω
(HD:SMPTE292M/296M/299M/
SD:SMPTE259M-C/272M-A/ITU-R.BT656-4 Standard)
TC In:
BNC x 1, 0.5 to 8Vp-p, 10kΩ
TC Out:
BNC x 1, Low impedance, 2.0 ±0.5V p-p
IEEE 1394:
6 pin, Digital In/Out, based on IEEE 1394 Standard
DC In:
XLR x 1, 4-pin, DC12V (DC11.0V to 17.0V)
DC Out:
4-pin, DC12V (DC11.0V to 17.0V), max 1.5 A.
Remote:
10 pin
Lens:
12 pin
EVF:
20 pin
USB 2.0 (Device):
Type-B, 4-pin (USB ver2.0)
Audio lnput
MIC IN:
XLR x 2 (FRONT1, FRONT2), High impedance, +48V compatible
MIC: −40/−50/−60 dBu (Switch on Menu)
AUDIO IN:
XLR x 2 (REAR1, REAR2), High impedance,
LINE/MIC/+48V switchable
LINE: 0 dBu, MIC: −50/−60 dBu (Switch on Menu)
Line Out:
Pin Jack x 2 (CH1/CH2), Out: 600Ω, 316 mV
Phones:
Stereo Mini Jack, 0.14" (3.5mm) diameter
Internal Speaker:
1.1" (28mm) round shape x 1
Monitor, Speaker and Other packages
LCD Monitor:
3.5", LCD color Monitor, 210,000 pixels, 4:3
Supplied Accessories: 1.5", CRT B/W Viewfinder (4:3 CRT, NTSC/PAL switchable),
Component Video Cable, Shoulder strap,
P2 card software driver (CD-ROM )
* Product image and the specifications are subject to change without notice.
The content of this catalog is a thing as of September 2009.
AG-YA500G
AG-YA500G
VF Interface Box
VF Interface Box
AG-CA300G
AG-CA300G
Remote Control
Remote Control
Camera Adapter
Camera Adapter
Tripod
Tripod
/P
: 0.7Vp-p, 75Ω
B
R
Anton/Bauer
Anton/Bauer
Anton/Bauer Battery System
Anton/Bauer Battery System
Gold Mount Plate
Gold Mount Plate
DC Cable (XLR)
DC Cable (XLR)
AC Adapter
AC Adapter
HD SDI or IEEE1394
HD SDI or IEEE1394
AG-HPG20
AG-HPG20
(not available for AVC-I)
(not available for AVC-I)
P2 portable
P2 portable
BT-CS80G
BT-CS80G
VF Cable
VF Cable
BT-LH80WU
BT-LH80WU
(Viewfinder Cable, DC Cable)
(Viewfinder Cable, DC Cable)
7.9" LCD Monitor
7.9" LCD Monitor
*Mounting bracket is required to mount on a Camera-Recorder.
*Mounting bracket is required to mount on a Camera-Recorder.
or or
10-pin Remote Cable
10-pin Remote Cable
(with 10m/max 50m)
(with 10m/max 50m)
AJ-RC10G
AJ-RC10G
Remote
Remote
Control Unit
Control Unit
BNC cable x 2/
BNC cable x 2/
AG-BS300
AG-BS300
Power cord
Power cord
Base Station
Base Station
Incom
Incom
AG-EC4G
AG-EC4G
Extension
Extension
Control Unit
Control Unit
Incom
Incom
