Panasonic AG-HPX500P Quick Manual

Ag-hpx500 series
Hide thumbs

Advertisement

AG-HPX500
series
Memory Card Camera-Recorder
(AG-HPX500P/AG-HPX500E/AG-HPX500EN)

Advertisement

Table of Contents
loading

  Related Manuals for Panasonic AG-HPX500P

  Summary of Contents for Panasonic AG-HPX500P

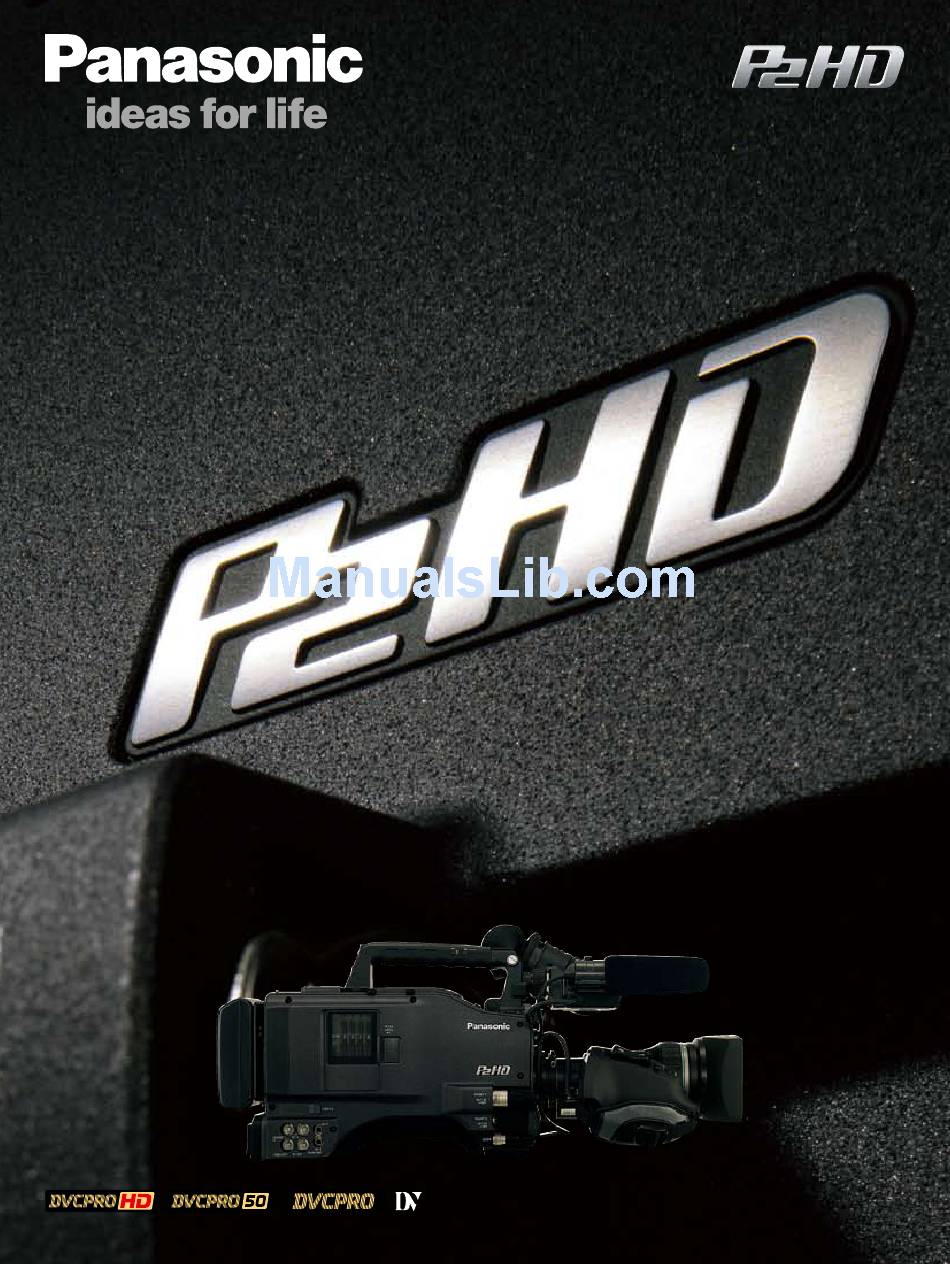

  • Page 1 AG-HPX500 series Memory Card Camera-Recorder (AG-HPX500P/AG-HPX500E/AG-HPX500EN)
  • Page 2 Users can also take advantage of a special reduce storage media expenses. And Initialization five-year free-repair service program that because a memory card recorder has no Panasonic offers for P2 HD equipment. moving mechanism, it uses less power. Recording For example, the AG-HPX500 series uses P2 Card about 41% less power than the tape-based AJ-HDX900 camcorder.
  • Page 3 A P2HD Camera-Recorder That's Built for Professionals • Supports worldwide HD/SD recording formats at the price of an SD camera-recorder • Advanced P2 technology provides fast, rugged performance plus IT connectivity • 2/3-inch interchangeable lens system • Variable frame rate function •...
  • Page 4 Professional HD Quality Progressive 3CCD and 2/3-inch Interchangeable Lens System for Full-Fledged HD Video Production 2/3-Inch Interchangeable Lens System The camera process scans at full 1080/60 (or 50) progressive frames a second. It is this initial capture that is the foundation for all of the The 2/3-inch bayonet mount allows use of a wide assortment of formats that this camera generates.
  • Page 5 Video format and codec supported by AG-HPX500 series HD/SD Multi-Format Capabilities Supporting 32 HD/SD video recording formats, the AG-HPX500 Recording Video Format * Rec. Time* Codec series meets professional needs in news acquisition and in the 1080/60i production of TV programming, independent films and other demanding video content.
  • Page 6 * For compatibility details, visit https://eww.pavc.panasonic.co.jp/pro-av/sales_o/ieee1394 stream from the IEEE 1394 connector as it records. This lets you produce a backup copy using a connected external hard disk recorder, such as the Panasonic AJ-HD1400 DVCPRO HD recorder or AG-HPG20 P2 portable recorder.
  • Page 7 Memory Card for loading into another AG-HPX500 series so the Cine-Like Gamma (Eight-Mode Gamma) cameras will match. Drawing on technologies developed for the VariCam, Panasonic has Shooting Assist Functions equipped the AG-HPX500 series with advanced gamma functions that address eight different shooting scenarios and expand your •...
  • Page 8 *2: When using the P2 card E Series, software updates are necessary for certain P2 subsequently record, up to 3 seconds in HD (7 seconds in SD). devices. For details, visit the Panasonic website at https://eww.pavc.panasonic.co.jp/ In effect, this lets you record footage of the beginning of an event pro-av/.
  • Page 9: Sd Memory Card Slot

    Shot Marker and Text Memo • One-shot rec: Convenient for producing animation, this mode records for a set time (from 1 frame to 1 second) each time you A shot mark, which allows convenient OK and NG marking, can be press the Start button.
  • Page 10 “P2 Portable” AVCCAM DVCPRO HD VTR AG-HPG20 Portable Recorder AJ-HD1400 HPX2100, the AG-HPX500 series is compatible with nonlinear AG-HMR10 editing systems that support our other P2HD cameras. *The latest compatibility test report with NLEs is shown at https://eww.pavc.panasonic.co.jp/pro-av/ (P2 compatibility table)
  • Page 11 Bound Cable made by Canare Electric Return Video, Tally AG-CA300G V2PCS25-5CFWCE-SF-SC (82’/25m) Remote Control V2PCS50-5CFWCE-SF-SC (164’ /50m) Camera Adapter AG-YA500G V2PCS100-5CFWCE-SF-SC (328’ /100m) Remote Cable VF interface Box AG-BS300 (bundled to AG-CA300G) Power supply AJ-RC10G Base Station Remote Controller G/L, Return Video, Tally HD/SD HD/SD G/L Return...
  • Page 12 (Download Free* *1: P2 card E series may require to update the software of P2 equipment. please go to the P2 support page from the Panasonic web page https://eww.pavc.panasonic.co.jp/pro-av/ *2: Before using P2 card E series, you must install the latest version of the software in the AJ-PCD35.
  • Page 13: Optional Accessories

    Optional Accessories ( As of October 2009 ) AJ-VF20WB AG-CA300G BT-LH2550 2" EVF Remote Control Camera Adapter 25.5" Wide 16:9/4:3 switchable HD/SD LCD monitor AG-BS300 Base Station AJ-VF15B 1.5" EVF for 4:3 BT-LH1760 17" Wide HD/SD LCD monitor AG-EC4G Extension Control Unit (ECU) KJ10ex4.5B IRSD PS12 Camera Studio System KJ16ex7.7B IRSD PS12...
  • Page 14 Profiles...
  • Page 15: Specifications

    Specifications General Memory Card Recorder Supply Voltage: DC12V (11V to 17V) Recording Format: DVCPRO HD/DVCPRO 50/DVCPRO/DV selectable Power Consumption: Approx. 23W (when 1.5"CRT viewfinder, 3.5" LCD monitor used) Audio Recording Format: PCM digital recording 48 kHz /16 bits 4ch (DVCPRO HD / DVCPRO 50), Operating Temperature: 32°F to +104°F (0°C to +40°C) 2ch/4ch selectable (DVCPRO / DV) Storage Temperature:...
  • Page 16: Document Library

    Note that each software places specific requirements on the operating environment, and the operating environment must meet additional requirements to play and edit HD content on Windows PCs and Macs. For P2 Viewer or P2 CMS download and operating requirement information, visit https://eww.pavc.panasonic.co.jp/pro-av/. For operating requirements and details of other P2 editing software, visit the website of the relevant software manufacturer.
