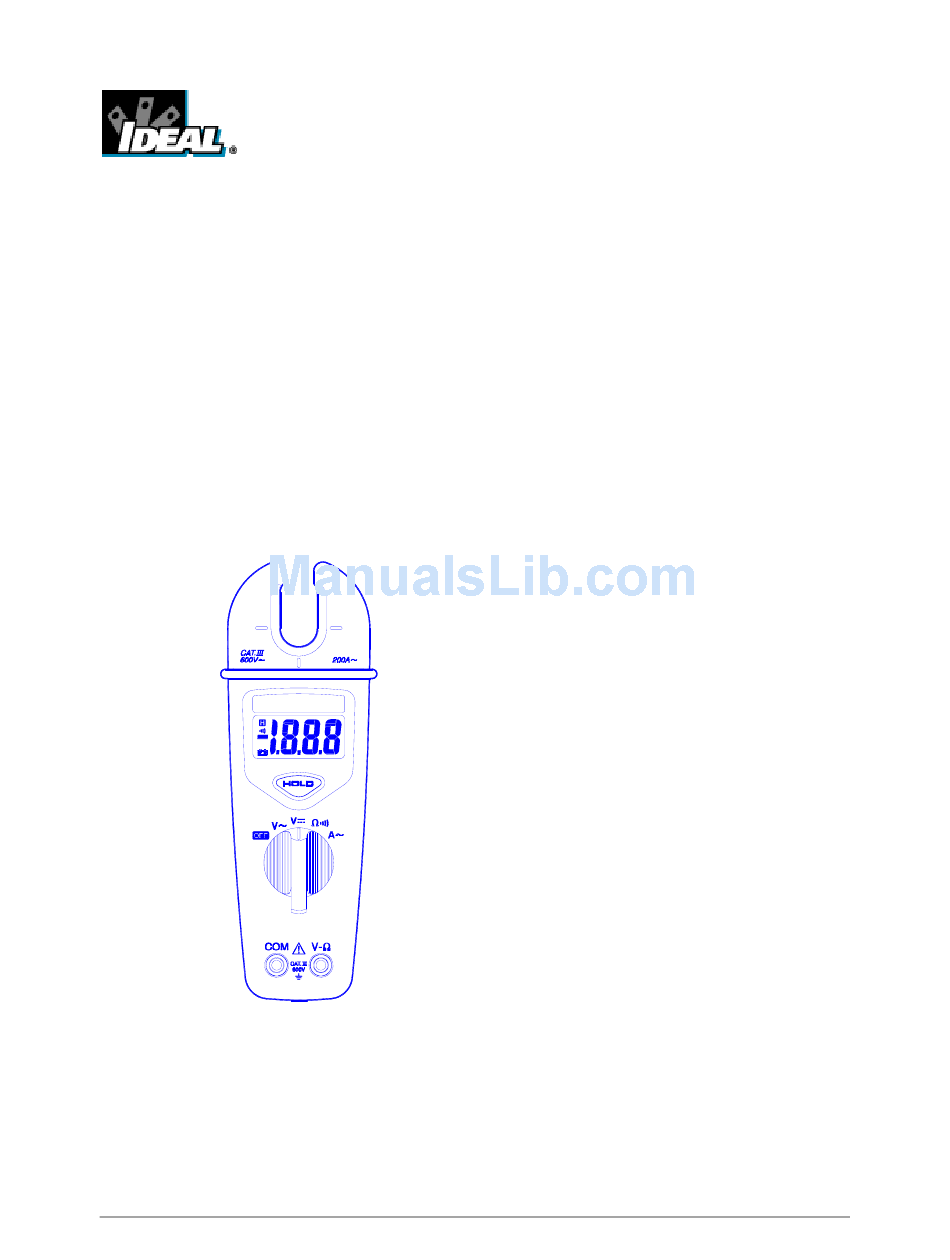

TECHNICAL MANUAL
MODEL: 61-095
The Service Information provides the following information:
• Precautions and safety information
• Specifications
• Performance test procedure
• Calibration and calibration adjustment procedure
• Basic maintenance (cleaning, replacing the battery)
Form number: TM61095
Revision: 2. Date: Sep 2002
Form number TM61095
Rev 2 September 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61-095 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IDEAL INDUSTRIES 61-095

  • Page 1 IDEAL INDUSTRIES, INC. TECHNICAL MANUAL MODEL: 61-095 The Service Information provides the following information: • Precautions and safety information • Specifications • Performance test procedure • Calibration and calibration adjustment procedure • Basic maintenance (cleaning, replacing the battery) Form number: TM61095 Revision: 2.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page # Title Introduction Precautions and Safety Information Symbols Safety Specifications General Specification Voltage Specifications Resistance and Continuity Specifications Current Specifications Physical and environment characteristics Certification and compliance Required Equipment Basic Maintenance Opening the Meter Case Replacing the Battery Cleaning Performance Tests Testing the Voltage Function...
  • Page 3: Introduction

    The information provided in this document is for the use of qualified personnel only. Caution The 61-095 contains parts that can be damaged by static discharge. Follow the standard practices for handling static sensitive devices. For additional information about IDEAL INDUSTRIES, INC. and it’s products, and services, visit IDEAL INDUSTRIES, INC.
  • Page 4: Safety

    Page 2 SAFETY Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use the product only as specified. CAUTION. These statements identify conditions or practices that could result in damage to the equipment or other property.
  • Page 5: Specifications

    Page 3 SPECIFICATIONS All specifications are warranted unless noted typical and apply to the 61-095. Stated accuracies are at 23ºC ± 5ºC at less than 80% relative humidity and without the battery indicator displayed. General specifications Characteristics Description LCD display digits 3 ½...
  • Page 6: Voltage Specifications

    Page 4 Measurement Characteristics Accuracy is ±(% reading + number of digits) at 23ºC ± 5ºC, less than 80% R.H. Voltage Function Range Accuracy Overload protection 600 Vrms ± (1.5%+ 3 dgt) 40Hz ~ 500Hz 600 Vrms 600 V ± (1% + 2 dgt) Input impedance: 1MΩ...
  • Page 7: Physical And Environment Characteristics

    Page 5 Physical and Environmental Characteristics Physical Characteristics Description Dimensions (H x W x D) 188mm x 66mm x 42mm Weight (with battery) 0.3Kg Environmental Characteristics Description Temperature operating 0 to + 50ºC Non-Operating -20 to + 60ºC Humidity (operating) <...
  • Page 8: Required Equipment

    Page 6 Required Equipment Required equipment is listed in Table B. If the recommended models are not available, equipment with equivalent specifications may be used. Repairs or servicing should be performed only by qualified personnel. Table B. Required Equipment Equipment Required Characteristics Recommended Model AC Voltage Range: 0-750V AC...
  • Page 9: Basic Maintenance

    Page 7 Basic Maintenance Warning To avoid shock, remove the test leads and any input signals before opening the case or replacing the battery or fuses. Opening the Meter Case Caution To avoid unintentional short circuit, always place the uncovered meter assembly on a protective surface.
  • Page 10: Performance Tests

    Page 8 Performance Tests The following performance tests verify the complete operability of the meter and check the accuracy of each meter function against the meter’s specifications. Accuracy specifications are valid for a period of one year after calibration, when measured at an operating temperature of 18ºC to 28ºC and at a maximum of 80% relative humidity.
  • Page 11: Testing The Resistance Function

    Page 9 Testing the Resistance Function To verify the accuracy of the resistance function, do the following: 1. Connect the calibrator to VΩ and COM on the meter. 2. Turn the rotary switch to Ω. 3. Apply the inputs for step 1-4 in Table 3. 4.
  • Page 12: Calibration

    Calibrate the meter once a year to ensure that it performs according to specifications. Perform calibration at an ambient temperature of 23ºC ± 2ºC and relative humidity of 75% or less. Calibration for the Model 61-095: 1. Disconnect the test leads from any circuit under test and turn off tester.
  • Page 13: Calibration Adjustment Points

    Page 11 Figure 3 - Calibration Adjustment Points Form number TM61095 Rev 2 September 2002...
