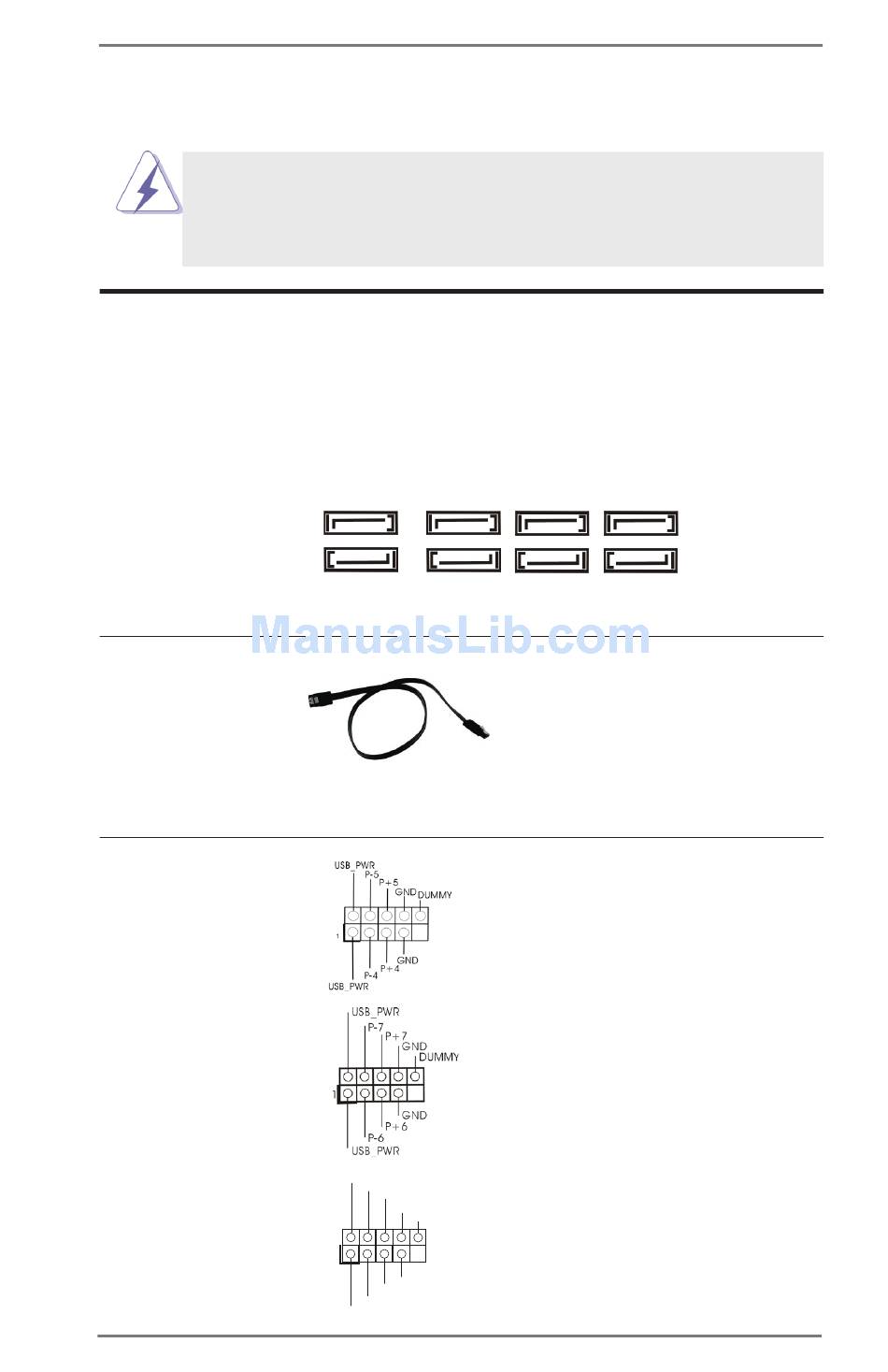

2.9 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors
(SATA3_0: see p.10, No. 21)
(SATA3_1: see p.10, No. 20)
(SATA3_2: see p.10, No. 19)
(SATA3_3: see p.10, No. 18)
(SATA3_4: see p.10, No. 17)
(SATA3_5: see p.10, No. 16)
(SATA3_A0: see p.10, No. 23)
(SATA3_A1: see p.10, No. 22)
Serial ATA (SATA)
Data Cable
(Optional)
USB 2.0 Headers
(9-pin USB4_5)
(see p.10, No. 26)
(9-pin USB6_7)
(see p.10, No. 25)
(9-pin USB8_9)
(see p.10, No. 24)
SATA3_A1 SATA3_1
SATA3_A0 SATA3_0
USB_PWR
P-9
P+9
GND
DUMMY
1
GND
P+8
P-8
USB_PWR
28
These Serial ATA3 (SATA3)
connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
SATA3_5
SATA3_3
SATA3_2 SATA3_4
Either end of the SATA data
cable can be connected to the
SATA / SATA2 / SATA3 hard
disk or the SATA2 / SATA3
connector on this motherboard.
Besides four default USB 2.0
ports on the I/O panel, there are
three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
