Q87WS-DL / H87WS-DL
1
9

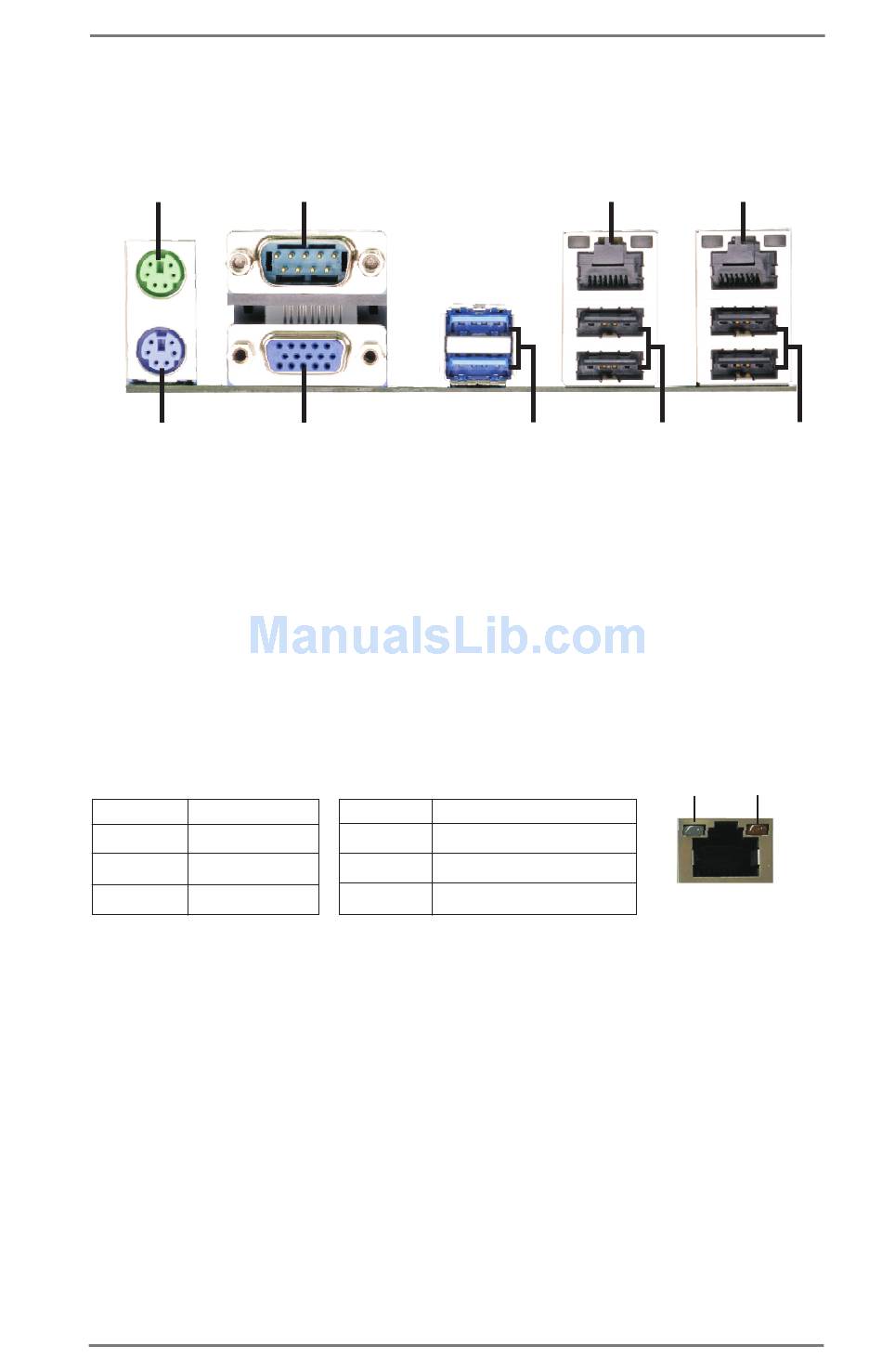

1 PS/2 Mouse Port (Green)
2 COM Port (COM1)
3 LAN RJ-45 Port (LAN1)*
4 LAN RJ-45 Port (LAN2)*
5 USB 2.0 Ports (USB23)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
2
8
SPEED LED
Status Description
Off 10Mbps connection
Orange 100Mbps connection
Green 1Gbps connection
12
3
7 6
6 USB 2.0 Ports (USB01)
7 USB 3.0 Ports (USB3_01)
8 VGA Port (VGA1)
9 PS/2 Keyboard Port (Purple)
ACT/LINK
LED
4
5
SPEED
LED
LAN Port
