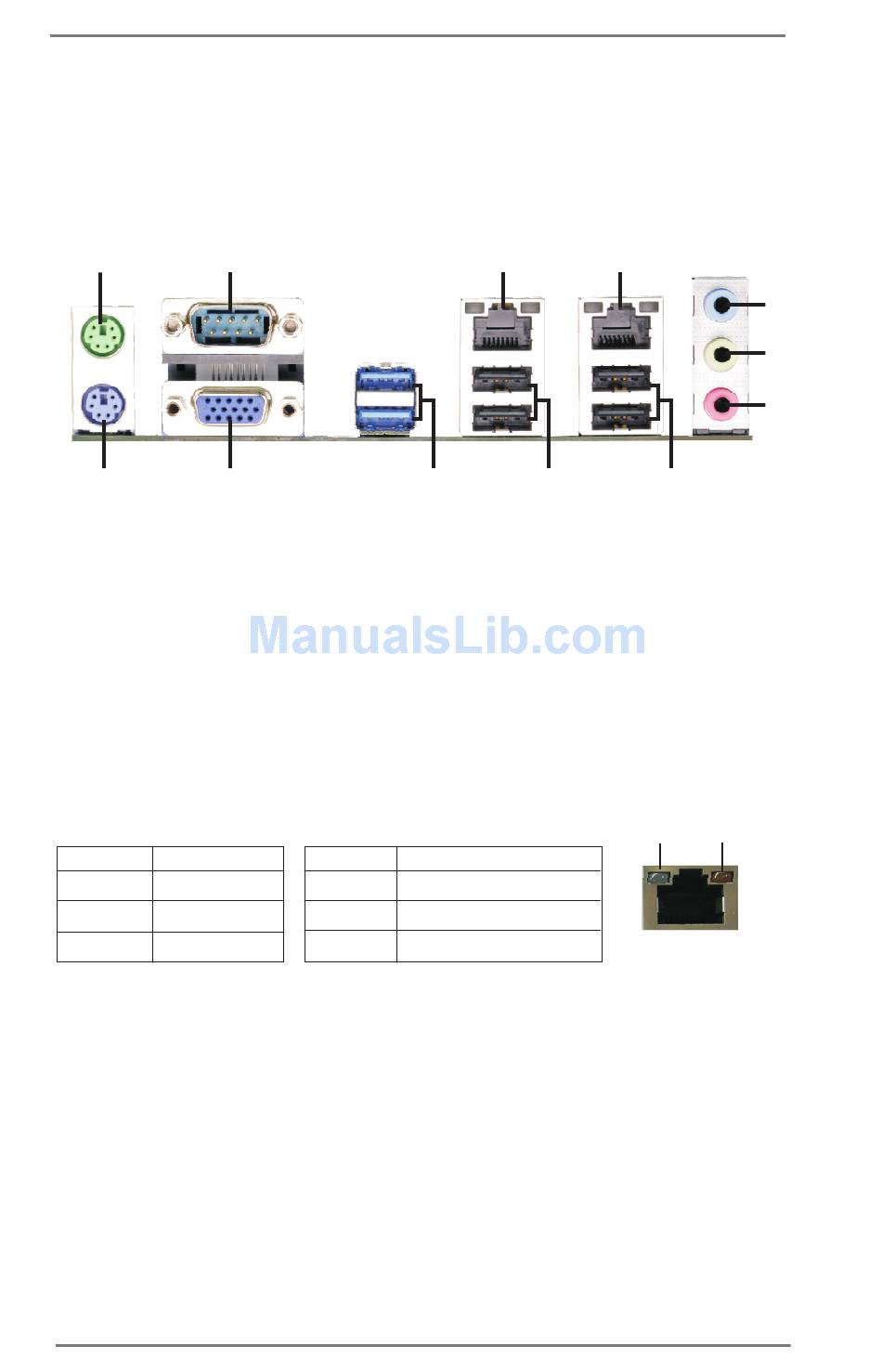

1.5 I/O Panel

Q87WSA-DL / H87WSA-DL
1
12 11
1 PS/2 Mouse Port (Green)
2 COM Port (COM1)
3 LAN RJ-45 Port (LAN1)*
4 LAN RJ-45 Port (LAN2)*
5 Line In (Light Blue)
6 Front Speaker (Lime)**
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
After restarting your computer, please double-click "Realtek HD Audio Manager" on the
system tray. Set "Speaker Configuration" to "Quadraphonic" or "Stereo". Click "Device
advanced settings", choose "Make front and rear output devices playbacks two different audio
streams simultaneously", and click "ok". Then reboot your system.
2
Status
Off
Orange
Green
3
10 9
7 Microphone (Pink)
8 USB 2.0 Ports (USB23)
9 USB 2.0 Ports (USB01)
10 USB 3.0 Ports (USB3_01)
11 VGA Port (VGA1)
12 PS/2 Keyboard Port (Purple)
SPEED LED
Description
10Mbps connection
100Mbps connection
1Gbps connection
11
4
5
6
7
8
ACT/LINK SPEED
LED LED
LAN Port
