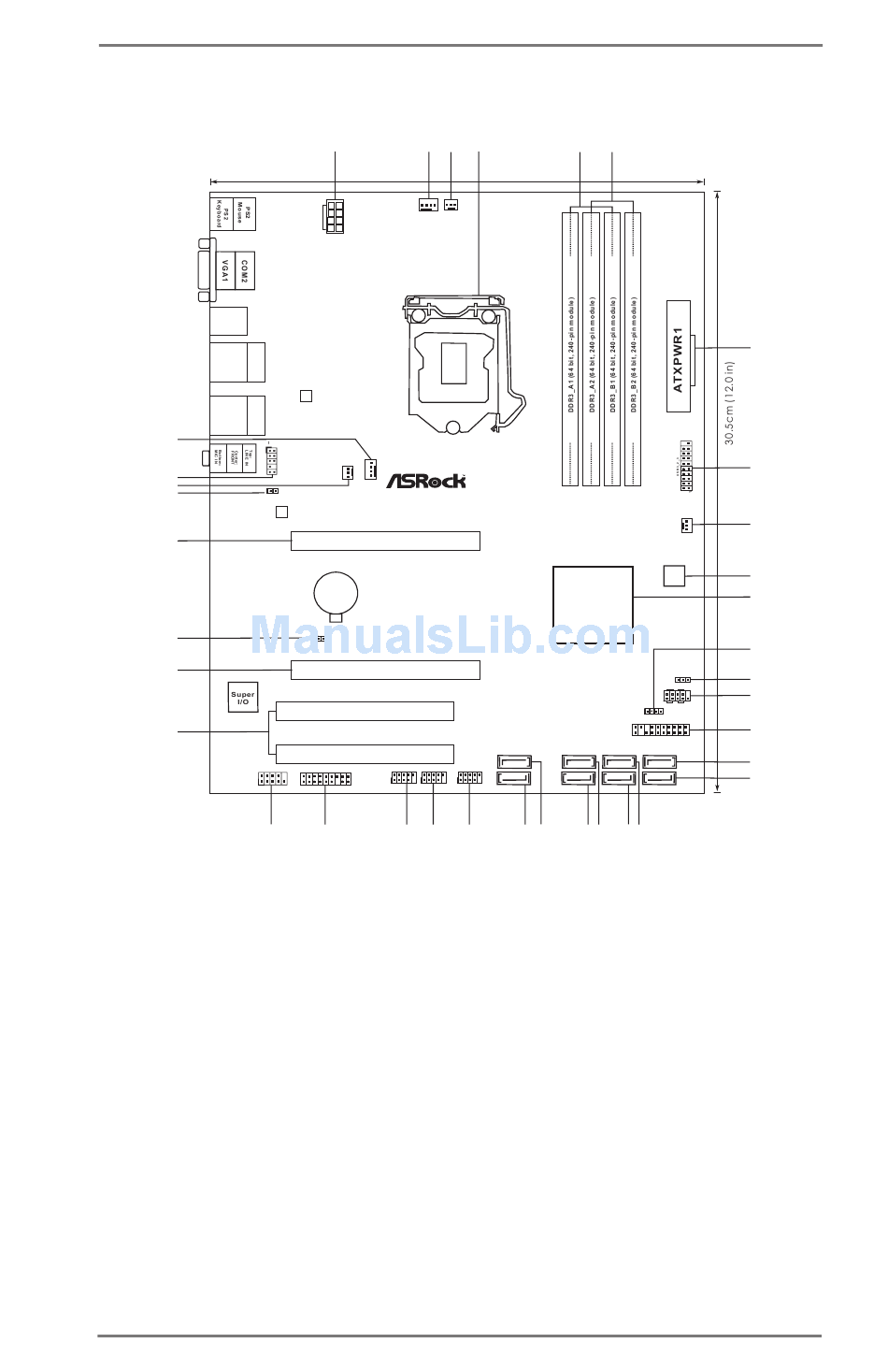

1.4 Motherboard Layout

USB 3.0
T: USB0
B: USB1
USB 2.0
Top:
T: USB0
RJ-45
B: USB1
USB 2.0
Top:
T: USB2
RJ-45
B: USB3
36
35
34
1
33
HDMI_SPDIF2
32
31
30
29
1
28
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 CPU Fan Connector (CPU_FAN2)
4 1150-Pin CPU Socket
5 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Blue)
6 2 x 240-pin DDR3 DIMM Slots
(DDR3_A2, DDR3_B2, White)
7 ATX Power Connector (ATXPWR1)
8 USB 3.0 Header (USB3_2_3)
9 Chassis Fan Connector (CHA_FAN2)
10 SPI Flash Memory (64Mb)
11 Intel Q87/H87 Chipset
12 Chassis Speaker Header (SPEAKER1)
13 Power LED Header (PLED1)
14 System Panel Header (PANEL1)
15 Auxiliary Panel Header (AUX_PANEL1)
16 SATA3 Connector (SATA3_5)
17 SATA3 Connector (SATA3_4)
* HDMI_SPDIF header, front panel audio header, and the audio jacks on the I/O panel are for Q87WSA-DL
/ H87WSA-DL only.
1 2
24.4cm (9.6 in)
CPU_FAN1
ATX12V1
LAN
CHA_FAN1
PWR_FAN1
HD_AUDIO2
LAN
PCIE6
CMOS
Battery
CLRCMOS1
1
PCIE3
PCI2
PCI1
USB6_7
TPMS1 USB4_5
COM1
1 1
1
27 26 25
3 4 5 6
CPU_FAN2
RoHS
Intel
Q87/H87
SATA3_A1 SATA3_1 SATA3_3
USB8_9
1
SATA3_A0 SATA3_0 SATA3_2
24 23 22 21 20
18 SATA3 Connector (SATA3_3)
19 SATA3 Connector (SATA3_2)
20 SATA3 Connector (SATA3_1)
21 SATA3 Connector (SATA3_0)
22 SATA3 Connector (SATA3_A1)
23 SATA3 Connector (SATA3_A0)
24 USB 2.0 Header (USB8_9)
25 USB 2.0 Header (USB6_7)
26 USB 2.0 Header (USB4_5)
27 TPM Header (TPMS1)
28 COM Port Header (COM1)
29 PCI Slots (PCI1-2)
30 PCI Express 2.0 x16 Slot (PCIE3)
31 Clear CMOS Jumper (CLRCMOS1)
32 PCI Express 3.0 x16 Slot (PCIE6)
33 HDMI_SPDIF Header (HDMI_SPDIF2)*
34 Power Fan Connector (PWR_FAN1)
35 Front Panel Audio Header (HD_AUDIO2)*
36 Chassis Fan Connector (CHA_FAN1)
