7.3.2 Jumper positions

7.3.2.1 16 logical head default (normal use)

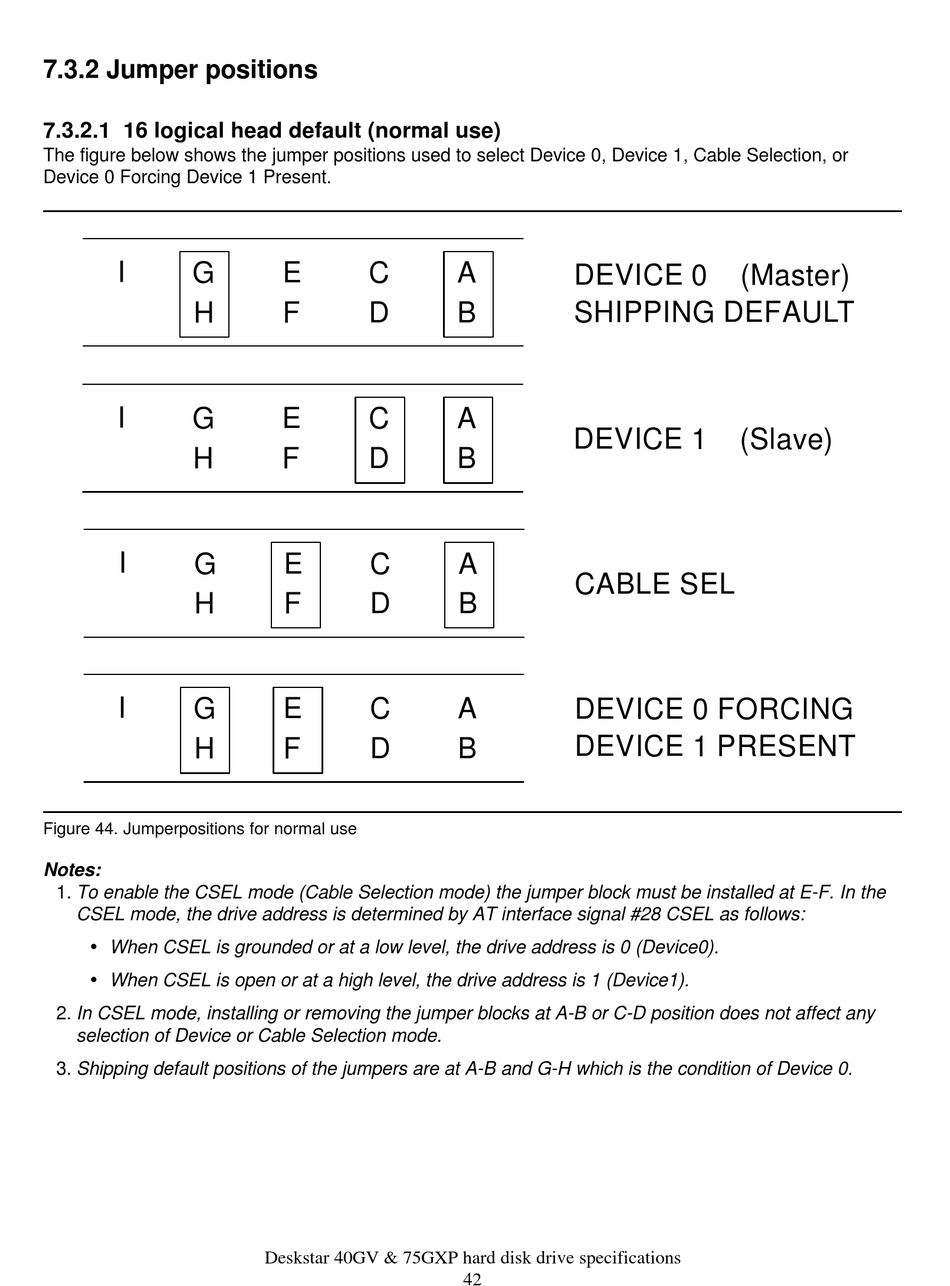

The figure below shows the jumper positions used to select Device 0, Device 1, Cable Selection, or
Device 0 Forcing Device 1 Present.
I
G
H
I G
H
I
G
H
I
G
H

Figure 44. Jumperpositions for normal use

Notes:
1. To enable the CSEL mode (Cable Selection mode) the jumper block must be installed at E-F. In the
CSEL mode, the drive address is determined by AT interface signal #28 CSEL as follows:
Ÿ When CSEL is grounded or at a low level, the drive address is 0 (Device0).
Ÿ When CSEL is open or at a high level, the drive address is 1 (Device1).
2. In CSEL mode, installing or removing the jumper blocks at A-B or C-D position does not affect any
selection of Device or Cable Selection mode.
3. Shipping default positions of the jumpers are at A-B and G-H which is the condition of Device 0.
E C
F D
E C
F D
E C
F D
E C
F D
Deskstar 40GV & 75GXP hard disk drive specifications
A
DEVICE 0
B SHIPPING DEFAULT
A
DEVICE 1
B
A
CABLE SEL
B
A DEVICE 0 FORCING
DEVICE 1 PRESENT
B
42
