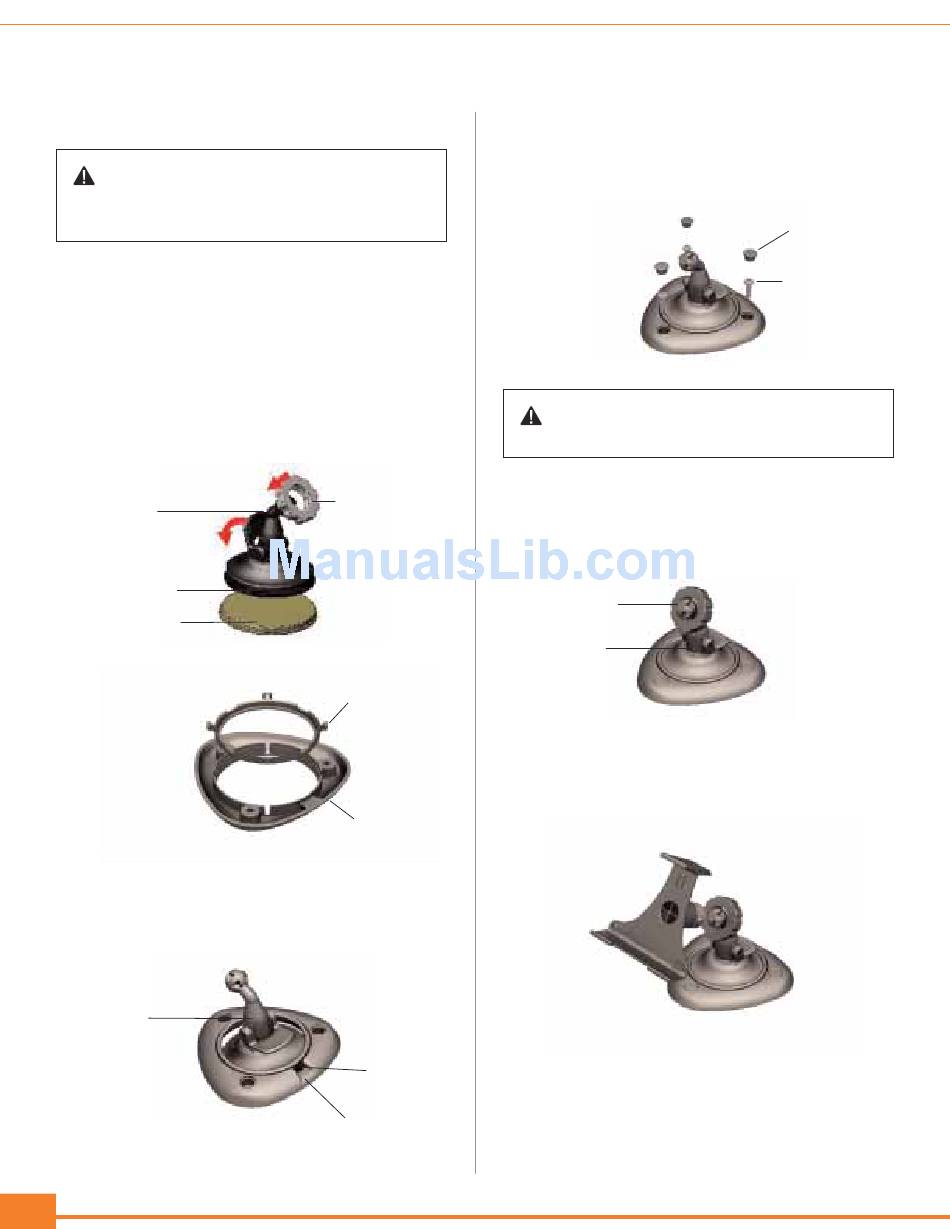

Screw mount to dash

Warning: To avoid personal injury, follow the safety guidelines and
installation instructions provided so that Delphi Mobile Navigation does
not obstruct the view of the driver, interfere with the operation of any airbags
and safety features in the vehicle, or become airborne in the case of an acci-
dent. Do not attempt to install the Delphi Mobile Navigation unit while driving.
1. Choose a position on the dash where Delphi Mobile
Navigation will be clearly visible to the driver without
obstructing the driver's view.
2. Center the suction cup on the suction pad. Press the
lever down until it snaps shut.
3. Fit the retainer ring inside the screw plate by sliding
the four locating tabs into the corresponding slots on
the underside of the screw plate.
Note: Do not use the screw plate without the retainer ring and suction pad.
Lever
Suction cup
Suction pad
4. Bring the ball foot up through the center of the screw
plate. Position the ball foot by sliding the release tab
through the slot on the screw plate.
Ball foot
14
5. Place the assembly into position on the dash. Use the
three screws provided to fix the assembly firmly to the
dash. Press the screw caps over the screw heads.
using screws may cause permanent damage to dash surface.
6. The ball foot should now be securely fixed. Slip the
Locking nut
locking nut loosely over the ball foot with the flat side
facing upward.
Retainer ring
7. Making sure the short side of the socket clip is at the
top, push the socket clip onto the ball foot until it clicks.
Screw plate
8. Adjust the position of the socket clip so that Delphi
Release tab
Mobile Navigation will be clearly visible to the driver.
9. Thread the locking nut onto the socket clip; turn
Slot for
clockwise until tight.
release tab
Warning: Screw mount is not suitable for all dash surfaces. Dashes
with soft padding may not hold the unit firmly in place. Mounting unit
Locking nut
Ball foot
Screw cap
Screw
