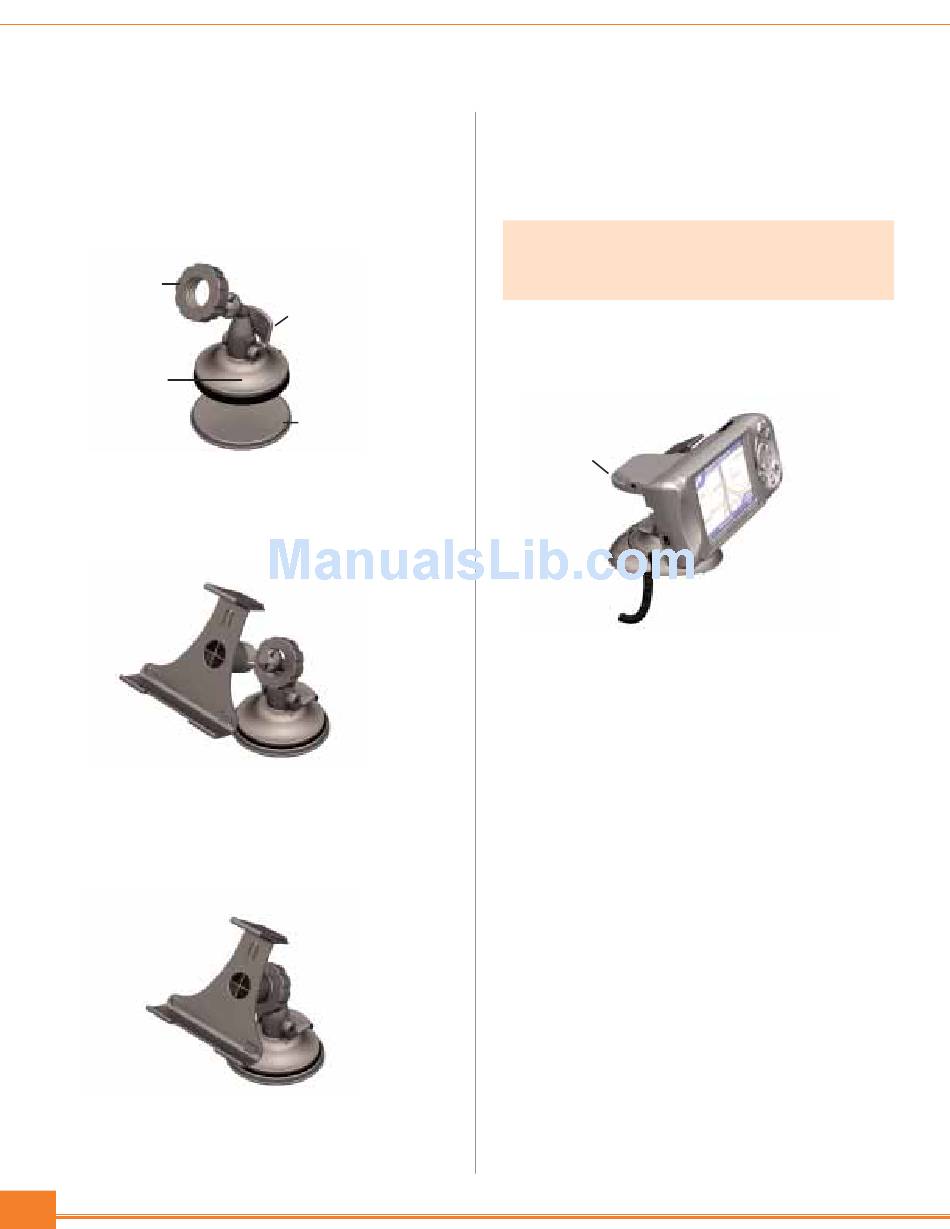

4. Hold the suction cup firmly against the dash or center
on the suction pad. Press the lever down until it
snaps shut. (To remove the suction cup, pull the lever
up. Pull the release tab to release the suction.)
5. The ball foot should now be securely fixed on the dash.
Slip the locking nut loosely over the ball foot, with the
flat side facing upward.
Locking nut
Suction cup
6. Making sure the short side of the socket clip is at
the top, push the socket clip onto the ball foot until
it clicks.
7. Adjust the position of the socket clip so that Delphi
Mobile Navigation will be clearly visible to the driver.
8. Thread the locking nut onto the socket clip; turn
clockwise until tight.
13
Lever
Suction pad
9. Snap Delphi Mobile Navigation onto the socket clip.
First, position the two locating tabs (found on the
bottom of the unit) into the corresponding slots on the
socket clip. Then, snap the top side of Delphi Mobile
Navigation onto the clip.
To unclip Delphi Mobile Navigation from the mounting bracket,
press down on the back of the upper plastic clip. Release the top
of the unit. Then lift the unit out of the bottom two slots.
10. Flip the GPS antenna outward so that the antenna
points horizontally.
Antenna points
up and out
11. Plug the 12/24V power adaptor into the cigarette
lighter socket.
12. Plug the other end of the power cable into the socket
on the left side of Delphi Mobile Navigation.
13. Verify that Delphi Mobile Navigation is positioned such
that the GPS antenna has a clear view of the sky.
Note: In most vehicles, you will need to have the engine idling in order to
program your destination. You also can turn on the unit with just the
accessory power (i.e., your ignition key turned to the ACC "on" position).
When you turn on the engine, power may be interrupted to the unit but
the programmed destination will be saved. In vehicles where accessory
power is on permanently, the unit can be turned on and programmed as
soon as the power adaptor is connected. Turning the engine on will not
reset the unit.
