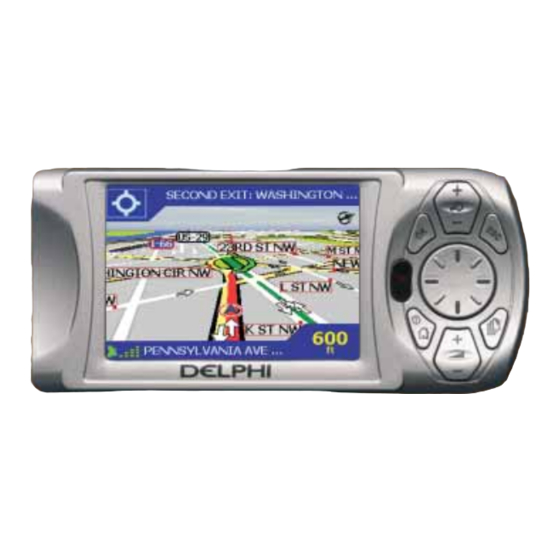

DELPHI MOBILE NAVIGATION
USER MANUAL
Important: This manual and the Delphi Mobile Navigation Quick Start Guide contain important safety and operating information.
Please read and follow the instructions in these manuals. Failure to do so could result in personal injury, death, and/or damage to your
Delphi Mobile Navigation and/or to your vehicle.
Advertisement
Table of Contents
Related Manuals for Delphi NA10000-11B1 - Mobile Navigation - GPS Receiver
Summary of Contents for Delphi NA10000-11B1 - Mobile Navigation - GPS Receiver
-
Page 1: User Manual

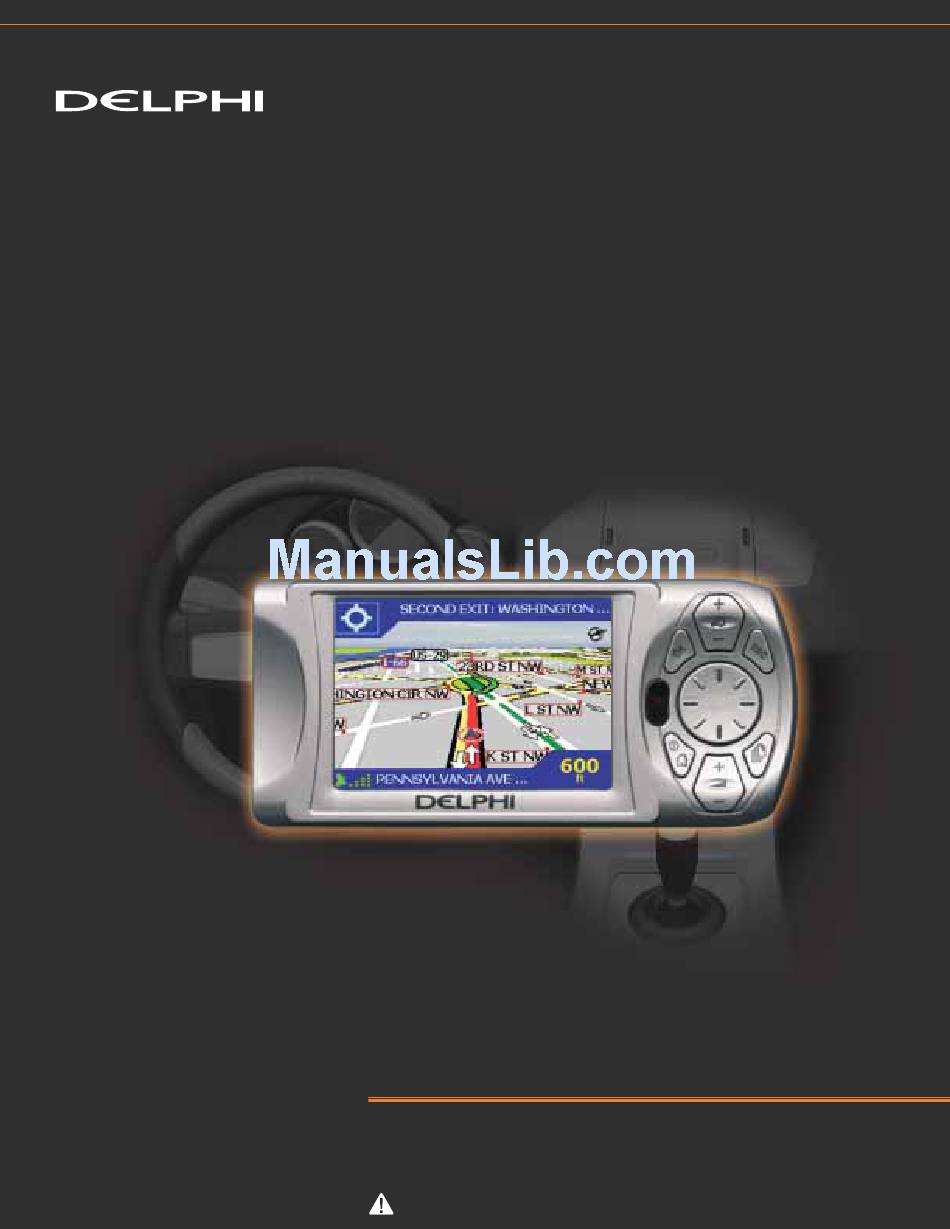

USER MANUAL Important: This manual and the Delphi Mobile Navigation Quick Start Guide contain important safety and operating information. Please read and follow the instructions in these manuals. Failure to do so could result in personal injury, death, and/or damage to your... - Page 2 Failure to do so could result in personal injury, death, and/or damage to your Delphi Mobile Navigation and/or to your vehicle. DELPHI DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE, OR THAT MAY VIOLATE THE LAW.
-
Page 3: Table Of Contents
Editing or Deleting a Favorite ....30 Visit Delphi Website ....10... -
Page 4: What Is Gps
- Mounting clip military applications worldwide. GPS receivers, such as (b) Dash mount Delphi Mobile Navigation, are designed to pick up the - Retainer ring high-frequency radio signals from these satellites and use - Screw plate the information to help determine your exact location. -
Page 5: Memory Cards
A memory card can be plugged into the slot in the top of the Delphi Mobile Navigation unit, and can be purchased with various memory capacities. A memory card with 256 megabytes of memory or less can be used in the Delphi Mobile Navigation unit. -
Page 6: Installing Software And New Maps
2. Plug the power adaptor into a power socket. Plug the Mobile Navigation desktop will start automatically. other end into the socket on the left side of the Delphi Mobile Navigation unit. 3. Turn on Delphi Mobile Navigation by pressing... -
Page 7: Microsoft Windows Xp Users
USB cable (supplied). Plug the USB cable into a USB port on your computer. Plug the other end into the underside of the Delphi Mobile Navigation unit. The display will change to indicate that you are connected and ready to download new software or maps. -
Page 8: Microsoft Windows 2000 Users
Enter the location of the Delphi Mobile Navigation USB Microsoft Windows 2000 users Under Windows 2000, you may see the screens below. driver disk D:\USBDRIVER. If you do not see these screens, then the installation has Note: The “D” drive may not be your CD-ROM drive. Use the letter completed automatically. -
Page 9: Step 3: Installing Maps
CD. can use on Delphi Mobile Navigation. Your Delphi Mobile Multiple map regions can be selected and copied across to the Delphi Navigation includes three Map CDs: Eastern United Mobile Navigation or memory cards. The total map size is displayed as States, Central United States, and Western United States. -
Page 10: Installing Maps On Mmc Or Sd Memory Cards
• Using your computer mouse, drag and drop the Installer\Backup. region to the PC Removable Media window on the 3. To restore a previously saved backup to your Delphi right side of the screen. Mobile Navigation: • Highlight the backup that you wish to restore. -
Page 11: Installing Delphi Mobile Navigation In Your Vehicle
Do not attempt to install the Delphi Mobile Navigation unit while driving. Lever... -
Page 12: Suction Or Adhesive Mount To Dash
Do not attempt to install the Delphi Mobile Navigation unit while driving. To unclip Delphi Mobile Navigation from the mounting bracket, press down on the back of the upper plastic clip. - Page 13 Note: In most vehicles, you will need to have the engine idling in order to program your destination. You also can turn on the unit with just the 7. Adjust the position of the socket clip so that Delphi accessory power (i.e., your ignition key turned to the ACC “on” position).
-
Page 14: Screw Mount To Dash
Do not attempt to install the Delphi Mobile Navigation unit while driving. Screw cap 1. - Page 15 First, position the two locating tabs (found on the bottom of the unit) into the corresponding slots on the socket clip. Then, snap the top side of Delphi Mobile Navigation onto the clip. To unclip Delphi Mobile Navigation from the mounting bracket, press down on the back of the upper plastic clip.
-
Page 16: Controls And Keyboard
“ESC” returns you to the previous screen or deletes the text you entered. With the Warning: For your safety, program your Delphi Mobile Navigation and enter information about your destination BEFORE you start your journey. -
Page 17: Using The Menus
Using the menus Entering text with the on-screen keyboard Many of the screens used with Delphi Mobile Navigation To enter your destination information, you will use the contain a menu of options. controls and an on-screen keyboard. You can enter a... -
Page 18: Changing The Brightness And Volume
Changing the brightness and volume To change the brightness of the display: 1. Press until you see the brightness bar on the display. This can be done at any time. 2. Press to make the display brighter, or dim the display. Note: The unit heats up more quickly if the display brightness is set higher than 70 percent. -
Page 19: Getting Started
Do not operate Delphi Mobile Navigation while driving. Park the vehicle first. DELPHI DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE, OR THAT MAY VIOLATE THE LAW. Note: This screen can be disabled in the settings function. For more information, refer to page 35. -
Page 20: Getting A Gps Fix
Getting a GPS fix Delphi Mobile Navigation receives GPS signals every second via the antenna. In order for your antenna to receive signals, ensure that: 1. The unit is outside or in a vehicle parked outside. 2. The antenna is pointing horizontally out through your windshield and has a clear view of the sky. -
Page 21: Setting Your Destination
SECTION 7: SETTING YOUR DESTINATION button to choose from the list. Then press confirm your selection. Warning: For your safety, program Delphi Mobile Navigation and enter information about your destination BEFORE you start your journey. Do not operate Delphi Mobile Navigation while driving. -
Page 22: Heading To An Intersection
1. From the main menu, select “Destination” and then 7. Choose one of the following: “Address.” • Select “Save.” This allows you to save the destination as a shortcut or favorite. Refer to section 9, beginning on page 29. • Select “Show.” The unit does not calculate the route, but will simply display the address using the map browser mode. -
Page 23: Heading To A Settlement
6. When the unit has enough information, the details are 5. Choose one of the following: displayed. If you wish to change the intersection, simply • Select “Save.” This allows you to save the press or select “ESC” on the screen to re-enter destination as a shortcut or favorite. -
Page 24: Heading To A Zip Code
Refer to Heading to a recently used address section 9, beginning on page 29. Delphi Mobile Navigation saves the last 30 locations that • Select “Show.” The unit does not calculate the route, you have traveled to. -
Page 25: Straight From The Map
Straight from the map Delphi Mobile Navigation lets you scroll across a map and pick a destination point on the map. 1. From the main menu, select “Map.” You are now in automatic map browser mode. -
Page 26: Viewing Your Route
This screen will timeout after 3 seconds or when any key is Warning: For your safety, program your Delphi Mobile Navigation and enter information about your destination BEFORE you start your journey. -
Page 27: Next Instruction
Next instruction Back-On-Track™ feature The information that you need for the next turn—the Delphi Mobile Navigation is designed to replan your route direction and distance to the turn—is displayed clearly in automatically if you take a wrong turn or are detoured. -
Page 28: Instruction List
1. From the main menu, select “Route Information.” 2. Select “Show Route.” 3. Zoom in and out as required using 4. You can cancel your current route at any time. To return to the main menu, press and select “Route Information” followed by “Cancel Route.” Instruction list Selecting “Instruction List”... -
Page 29: Shortcuts And Favorites
• On the text entry screen, scroll to the text entry Warning: For your safety, program your Delphi Mobile Navigation and enter information about your destination BEFORE you start your journey. line and press to delete the existing text. -
Page 30: Favorites
5. If you attempt to save your new shortcut over the top • Settlement—follow the instructions in “Heading to a of an existing shortcut, a warning screen is displayed. settlement” on page 23. • Point of interest—follow the instructions in “Heading to a point of interest”... - Page 31 2. Using the up/down function of the eight-way toggle button, select the favorite that you want to edit or delete. Press to confirm your selection. 3. To change the name of a favorite: • Scroll to the “Name” box and press to go to the text entry screen.
-
Page 32: Using The Gps Status Information
• Green circle—good signal being received and Delphi Mobile Navigation displays the status for up to 12 satellite being used to fix your position satellites. Each segment on the display represents the •... -
Page 33: Modifying The Settings
If you find that the display is difficult to see in certain lighting, use this function to change the brightness and Warning: For your safety, program your Delphi Mobile Navigation and color scheme. enter information about your destination BEFORE you start your journey. -
Page 34: Points Of Interest Settings
GPS settings This function allows you to modify the format of some of the information displayed in the GPS status screens. 2. Use the “Route” screen to: • Select either “Quickest Time” or “Shortest Distance” from the “Route” menu. • Enable or disable “Avoid Toll Roads” and “Avoid Urban Areas”... -
Page 35: User Settings
“Driver Protection” is enabled or disabled. DELPHI DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE, OR THAT MAY VIOLATE THE LAW. 4. If you wish to clear any of the information that you have stored, simply scroll to the appropriate button in the “Clear Lists”... -
Page 36: Automatic Route Simulator
SECTION 12: AUTOMATIC ROUTE Enable recording SIMULATOR Enabling this function records your travel route for product evaluation feedback purposes. This is not a The automatic route simulator allows you to program a recommended function for normal use. route without a GPS fix, and view the route without going anywhere. -
Page 37: Troubleshooting
Check that you have followed the instructions in the “Installing Software and New Maps” section, beginning Your Delphi Mobile Navigation unit is designed and built to on page 6. If necessary, reinstall the software following provide you with trouble-free performance. If it does not these steps. -
Page 38: Fcc Statement
FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a normal installation. -
Page 39: Warranty
Delphi will not be responsible for damage resulting from any (i) deviation from Delphi’s operating instructions as printed in Delphi’s catalog or on any packaging, labels or other literature provided with a Product, (ii) installation of a Product in a manner which is inconsistent with Delphi’s... - Page 40 Delphi Corporation 1441 West Long Lake Road Troy, Michigan 48098-5090 U.S.A. Technical Service Support: [1] 877.667.8700 www.delphi.com ©2004 Delphi Corporation. All rights reserved. DPSS-04-E-016...
