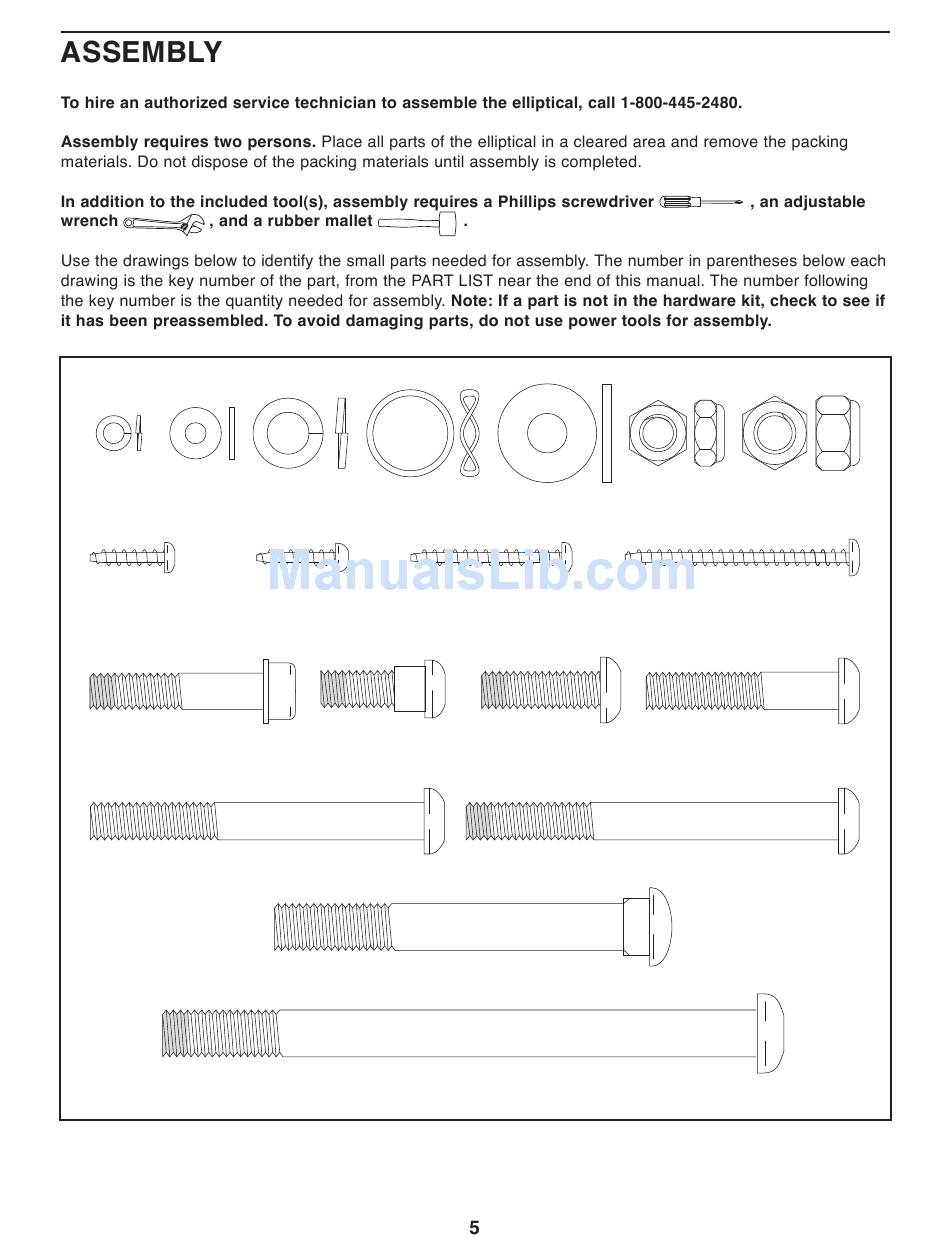

Assembly - ProForm 500 Le Elliptical Manual

M4 Split
M4
Washer Washer
(102)–8
(112)–8
M4 x 16mm
M4 x 16mm
Round Head
Blunt Screw
Screw (101)–10
(104)–8
Hub Patch
Screw (87)–8
M8 x 69mm Button Bolt (80)–1
M8 Split
Wave Washer
Washer
(111)–2
(90)–3
M4 x 32mm
Round Head
Screw (105)–6
M8 x 23mm Shoulder
Patch Screw (115)–4
M10 x 80mm Carriage Bolt (82)–2
M10 x 127mm Patch Screw (83)–2
M8 Jam Nut
M8 Washer
(79)–7
(88)–6
M8 x 23mm Button
Patch Screw (84)–4
M8 x 80mm Patch Bolt (116)–2
M10 Locknut
(81)–2
M4 x 50mm Screw
(108)–2
M8 x 41mm Button
Bolt (78)–4
