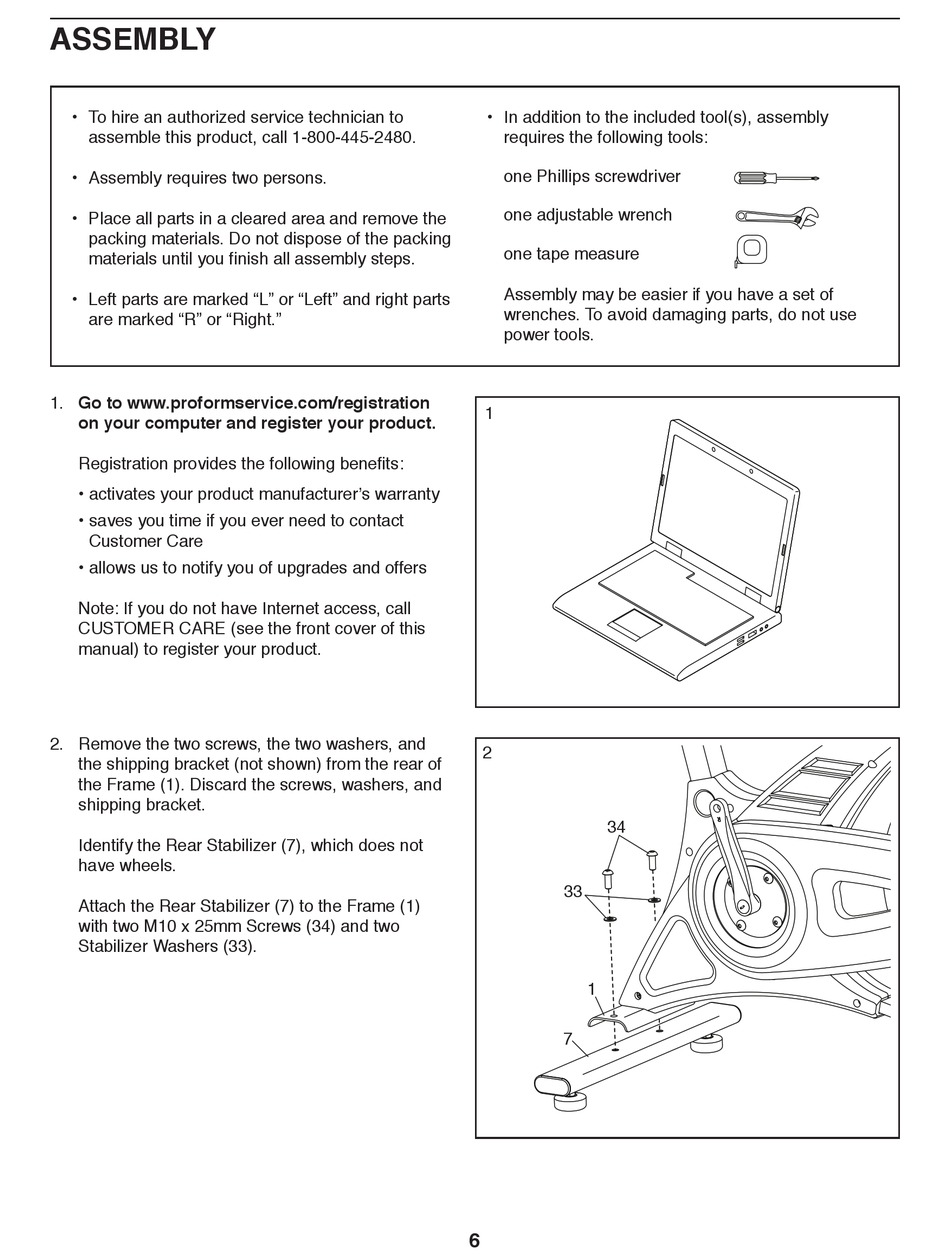

ASSEMBLY

•• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you  nish all assembly steps.
•• Left parts are marked “"L”" or “"Left”" and right parts
are marked “"R”" or “"Right.”"
1. Go to www.proformservice.com/registration
on your computer and register your product.
Registration provides the following benefits:
•• activates your product manufacturer’'s warranty
•• saves you time if you ever need to contact
Customer Care
•• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
CUSTOMER CARE (see the front cover of this
manual) to register your product.

2. Remove the two screws, the two washers, and

the shipping bracket (not shown) from the rear of
the Frame (1). Discard the screws, washers, and
shipping bracket.
Identify the Rear Stabilizer (7), which does not
have wheels.
Attach the Rear Stabilizer (7) to the Frame (1)
with two M10 x 25mm Screws (34) and two
Stabilizer Washers (33).
•• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one tape measure
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2
34
33
1
7
6
