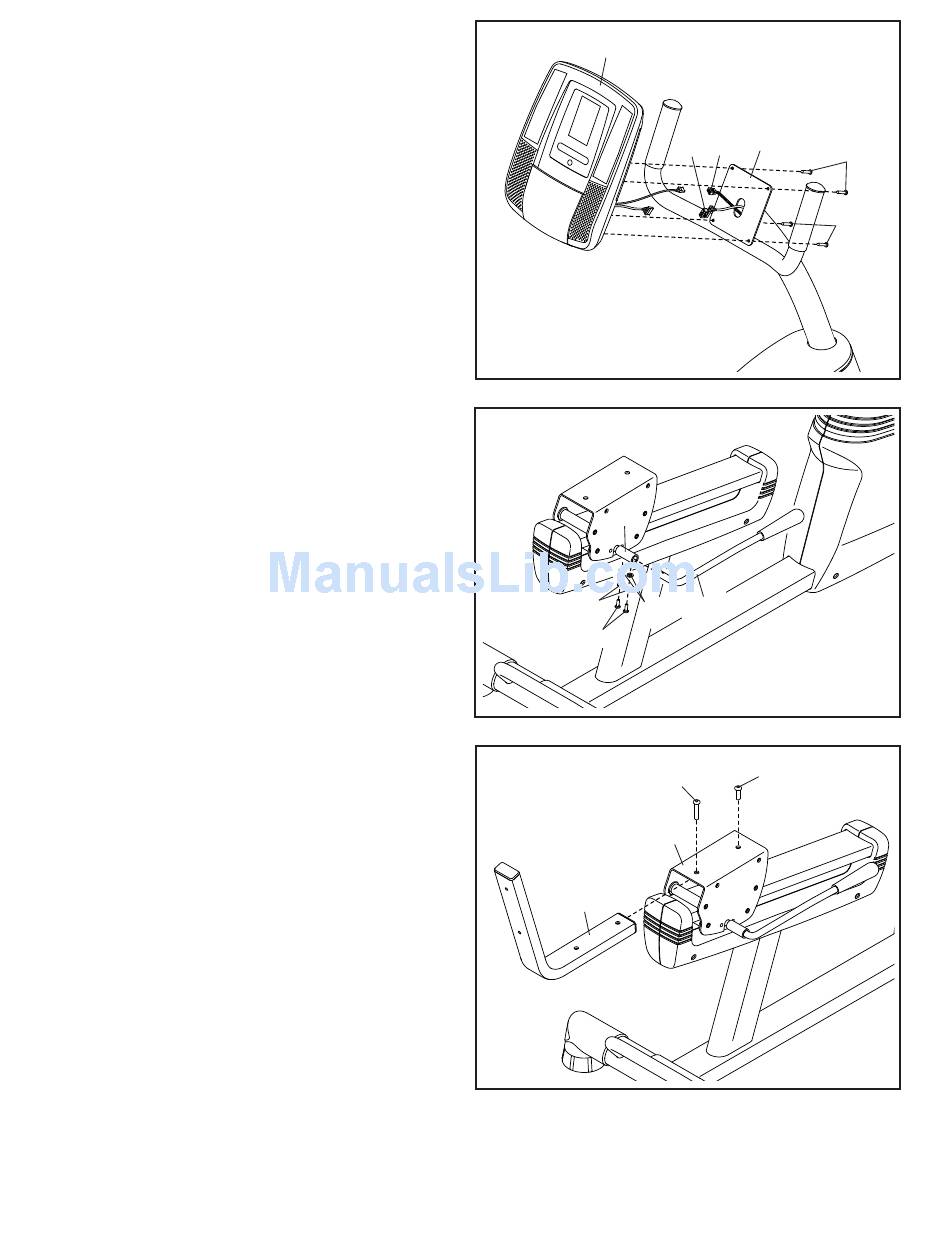

8. While a second person holds the Console (4)
near the Console Plate (11), connect the wires
on the Console to the Main Wire (53) and to the
Frame Pulse Wires (42).
Insert the excess wire into the Console Plate (11)
or into the Console (4).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Console Plate (11) with four
M4 x 16mm Screws (61).
9. Orient the Adjustment Lever (15) as shown.
Attach the Adjustment Lever to the Brake Axle
(16) with two M5 x 16mm Screws (60), two M5
Split Washers (66), and two M5 Washers (73).
10. Orient the Backrest Frame (5) as shown. Attach
the Backrest Frame to the Seat Carriage (3) with
an M8 x 20mm Screw (55) and an M8 x 30mm
Screw (56).
8
4
Avoid pinching
the wires
9
16
66
73
60
10
5
9
11
42
53
61
15
55
56
3
61
