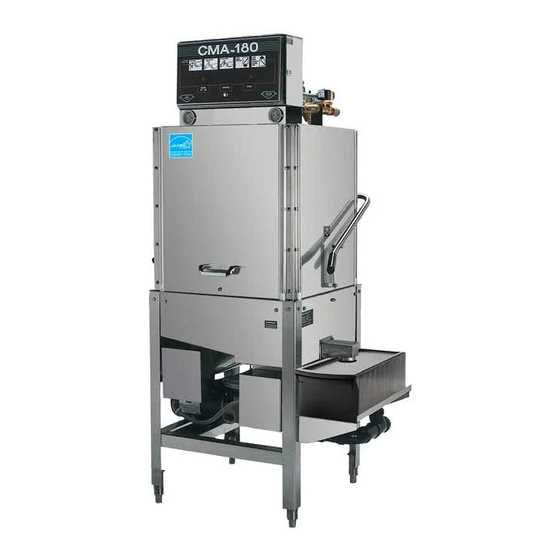

CMA Dishmachines CMA-180 Quick Setup Instructions

CMA-180/180Tall
Quick Setup
Instructions
WARNING: Electrical and plumbing connections
need to be made by a licensed service person
and comply with all Federal, State and Local
Health, Electrical, Plumbing and Safety codes.
STEP
1
8"
WALL
DRAIN
Connect a 2" drain pipe (not supplied) from
scrap accumulator to floor or wall drain.
STEP
2
Connect dishmachine to hot water source-
minimum 140°F if unit is equipped with a
booster heater. If 140°F is not available,
order a 2 minute time cycle (120°F minimum
temperature required). A minimum of 180°F
is required if unit is not equipped with a
booster heater.
STEP
3
3 PHASE OR SINGLE
L1
FOR SINGLE PHASE
L2
L3
3 Phase: Connect power supply wires, L1, L2
and L3 to the appropriate terminals marked
L1, L2 and L3 on the power block. Important:
If one of the three wires has higher voltage it
must be inserted as L-2.
PN: 10130.15
2
FLOOR DRAIN
1
STEP
4
208/240
PHASE
L1 OR L3
R e m o v e t h e p l a s t i c p l u g t o i n s t a l l t h e
d e t e r g e n t f i t t i n g ( p r o v i d e d b y y o u r
d i s p e n s e r s u p p l i e r ; C M A d o e s n o t
s u p p l y ) .

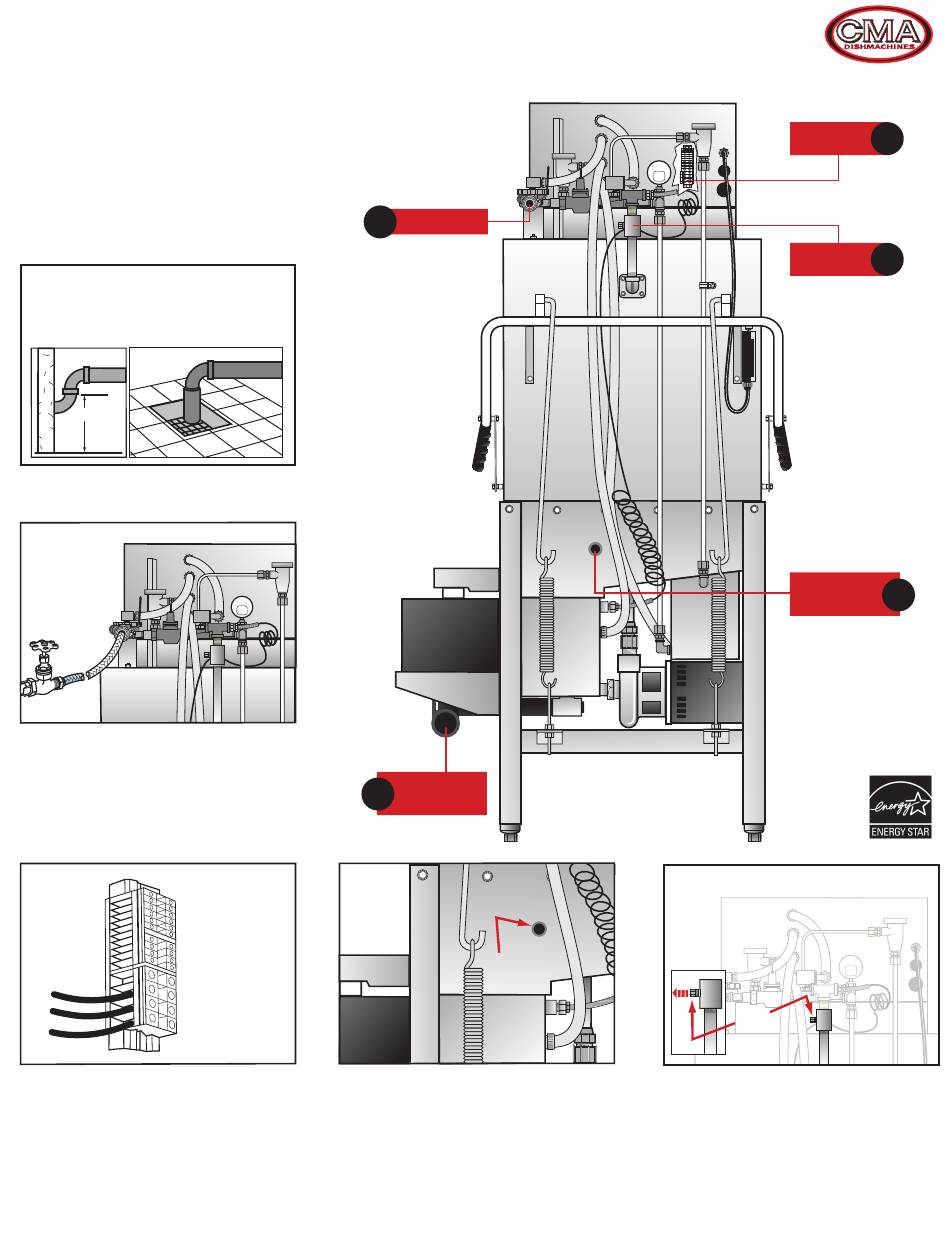

CMA-180
REAR VIEW
WATER INLET
DRAIN
CONNECTION
PLASTIC
PLUG
POWER
BLOCK
MIXING
CHAMBER
DETERGENT
FITTING INLET
STEP
5
PLUG
Remove the plug from the mixing chamber
and install the rinse injection fitting (rinse
injection fitting provided by your dispenser
supplier; CMA does not supply).
3
5
4
11-2016
