Campbell CS300 Instruction Manual

Pyranometer
Hide thumbs Also See for CS300:
Table of Contents

Advertisement

Quick Links

Download this manual
CS300 Pyranometer
Revision: 1/11
C o p y r i g h t
©
1 9 9 4 - 2 0 1 1
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS300 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell CS300

Summary of Contents for Campbell CS300

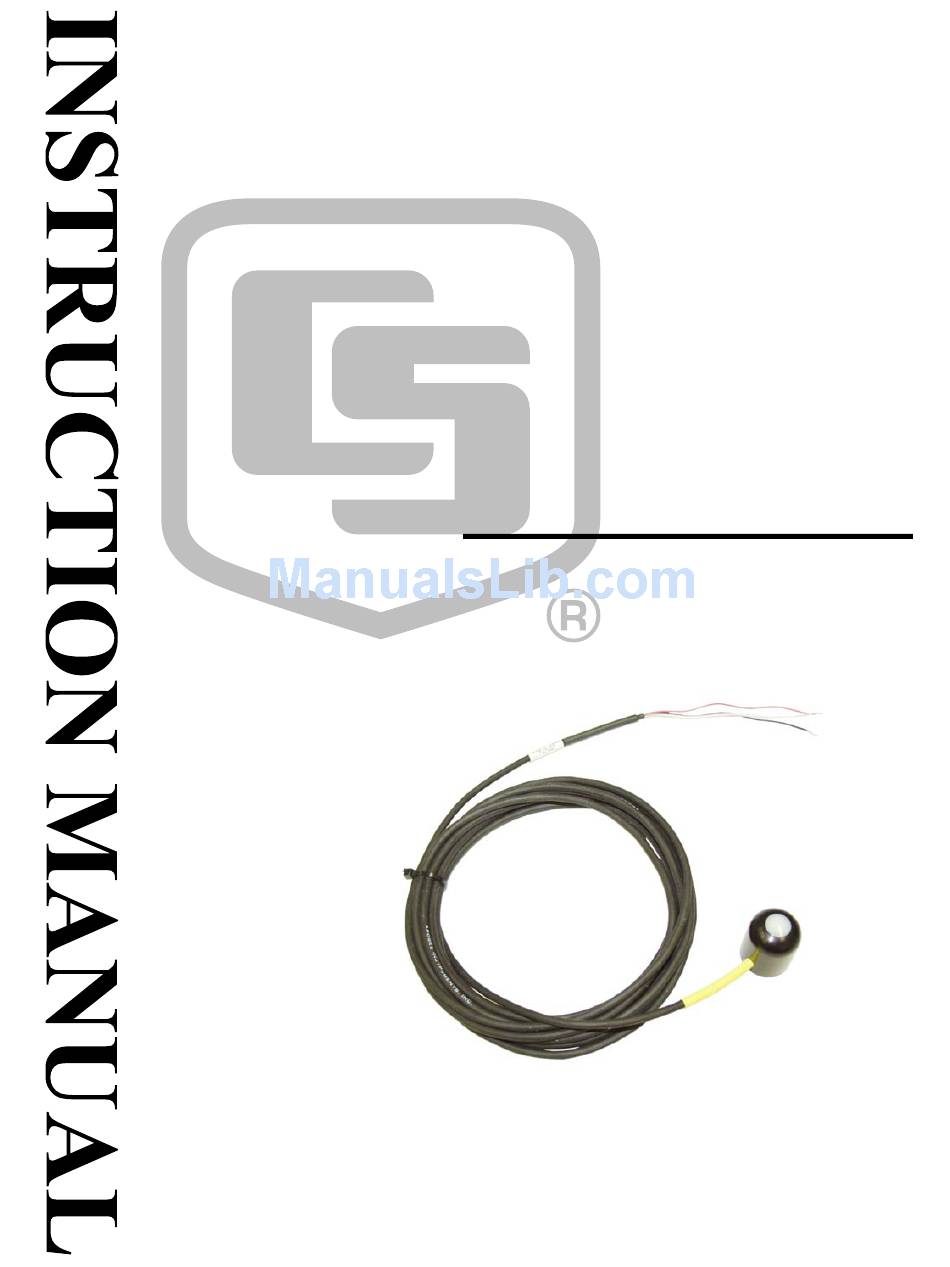

  • Page 1 CS300 Pyranometer Revision: 1/11 C o p y r i g h t © 1 9 9 4 - 2 0 1 1 C a m p b e l l S c i e n t i f i c ,...
  • Page 2 WARRANTY AND ASSISTANCE This equipment is warranted by CAMPBELL SCIENTIFIC (CANADA) CORP. (“CSC”) to be free from defects in materials and workmanship under normal use and service for six (6) months from date of shipment unless specified otherwise. ***** Batteries are not warranted.
  • Page 3 PLEASE READ FIRST About this manual Please note that this manual was originally produced by Campbell Scientific Inc. (CSI) primarily for the US market. Some spellings, weights and measures may reflect this origin. Some useful conversion factors: 1 in (square inch) = 645 mm Area: 1 in.

  • Page 4: Table Of Contents

    3-2. 015ARM Pyranometer Mounting Arm ...........3 4-1. CS300 Schematic ..................4 Tables 4-1. Connections to Campbell Scientific Dataloggers ........4 5-1. Multipliers Required for Average Flux and Total Flux Density in SI and English Units .................5 5-2. Wiring for Example Programs ..............5...

  • Page 6: General Description

    The resistance of the potentiometer is adjusted when the sensor is calibrated so that all sensors have the same output sensitivity. The CS300 is calibrated against a Kipp and Zonen CM21 under natural sunlight to accurately measure sun plus sky radiation (300 to 1100 nm). The CS300 should not be used under vegetation or artificial lights.

  • Page 7: Installation

    CS300 Pyranometer 3. Installation The CS300 should be mounted such that it is never shaded by the tripod/tower or other sensors. The sensor should be mounted with the cable pointing towards the nearest magnetic pole, e.g., in the Northern Hemisphere point the cable toward the North Pole.
  • Page 8 CS300 Pyranometer CS300 Pyranometer PN 18356 Base CM225 Stand CM200 Series Cr ossarm FIGURE 3-1. CM225 Pyranometer Mounting Stand and CM202 Crossarm CS300 Pyranometer PN 18356 Base 015ARM FIGURE 3-2. 015ARM Pyranometer Mounting Arm...

  • Page 9: Wiring

    CS300 Pyranometer 4. Wiring A schematic diagram of the CS300 is shown in Figure 4-1. Single-Ended Analog Input 500 to 600 : typical BLACK Ground/AG CLEAR Ground/G FIGURE 4-1. CS300 Schematic Connections to Campbell Scientific dataloggers are given in Table 4-1. When...

  • Page 10: Example Programs

    60 or 50 Hz rejection integration option as shown in the example programs. 5.1 Example Programs The following programs measure the CS300 every 10 seconds and convert the and MJm . Both programs output an hourly average flux...

  • Page 11: Cr10X Example Program

    5.1.2 CR10X Example Program ;{CR10X} *Table 1 Program 01: 10.0000 Execution Interval (seconds) ; Measure CS300 pyranometer 1: Volt (SE) (P1) 1: 1 Reps 2: 24 250 mV 60 Hz Rejection Range ; use 500 mV range for the CR7 and 21X, 1000 mV range for the CR23X.
  • Page 12 CS300 Pyranometer ; Set negative values to zero 2: If (X<=>F) (P89) 1: 1 X Loc [ SlrW 2: 4 < 3: 0 4: 30 Then Do 3: Z=F x 10^n (P30) 1: 0 2: 0 n, Exponent of 10...

  • Page 13: Total Solar Radiation

    CS300 Pyranometer 13: Real Time (P77) 1: 1220 Year,Day,Hour/Minute (midnight = 2400) 14: Resolution (P78) 1: 1 High Resolution 15: Totalize (P72) 1: 1 Reps 2: 2 Loc [ SlrMJ 16: Resolution (P78) 1: 0 Low Resolution 5.2 Total Solar Radiation...
  • Page 14 CS300 Pyranometer Recalibrate the CS300 every three years. Obtain an RMA number before returning the CS300 to Campbell Scientific, Inc. for recalibration. 7. Troubleshooting Symptom: -9999 or radiation values around 0 Check that the sensor is wired to the Single-Ended channel specified by the measurement instruction.
  • Page 15 CS300 Pyranometer...
