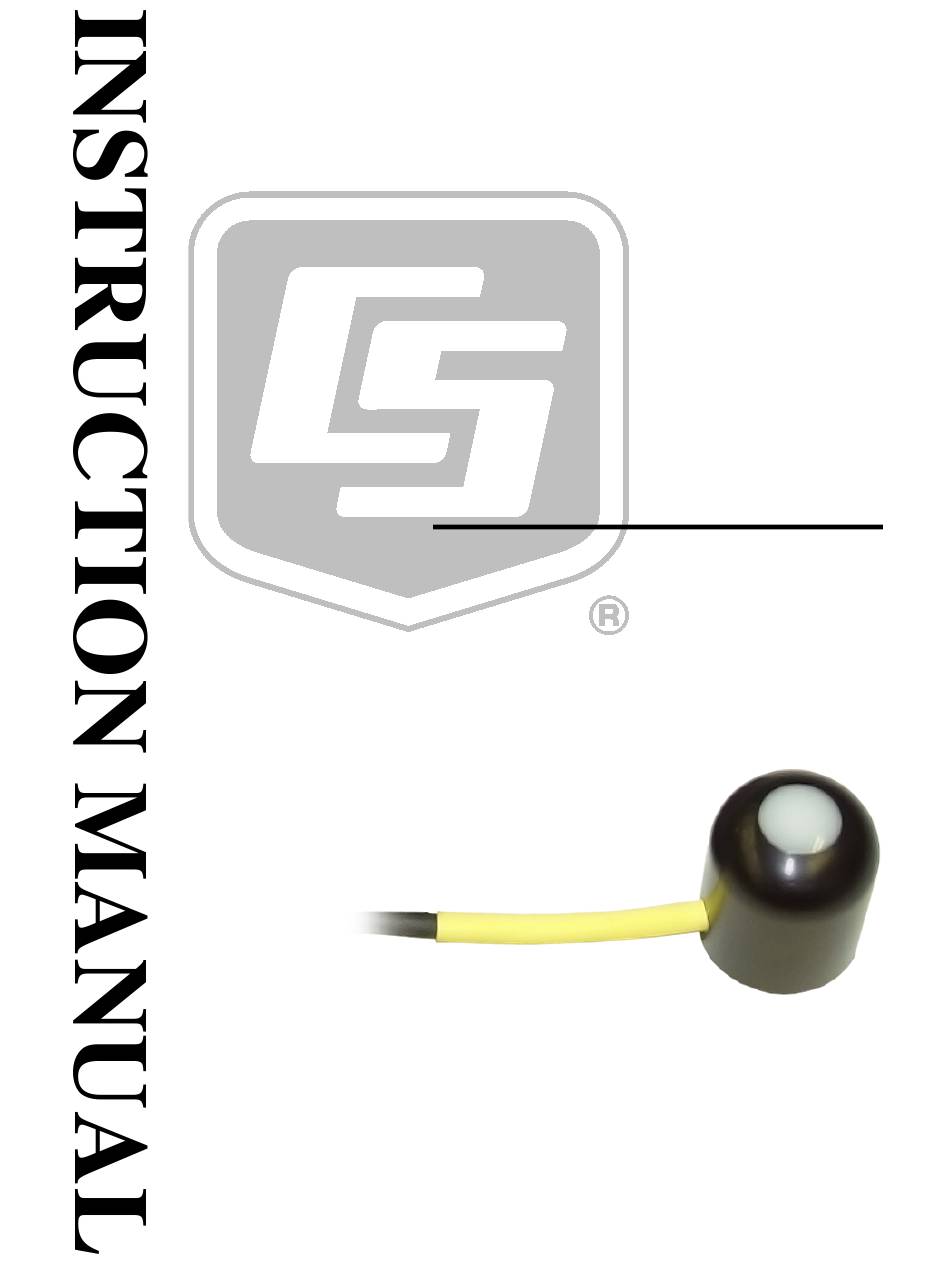

CS300 Pyranometer
Revision: 10/15
C o p y r i g h t
©
1 9 9 4 - 2 0 1 5
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell CS300

Summary of Contents for Campbell CS300

  • Page 1 CS300 Pyranometer Revision: 10/15 C o p y r i g h t © 1 9 9 4 - 2 0 1 5 C a m p b e l l S c i e n t i f i c ,...
  • Page 3 Limited Warranty “Products manufactured by CSI are warranted by CSI to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified in the corresponding product manual. (Product manuals are available for review online at www.campbellsci.com.) Products not manufactured by CSI, but that are resold by CSI, are warranted only to the limits extended by the original manufacturer.
  • Page 4 SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.
  • Page 5 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.

  • Page 7: Table Of Contents

    8. Maintenance and Calibration ........12 9. Troubleshooting............12 Appendices A. Importing Short Cut Code Into a Program Editor ..............A-1 B. Example Programs ..........B-1 CR1000 Program ................B-1 CR6 Program ................... B-2 Figure 7-1. CS300 schematic ................10...
  • Page 8 Table of Contents Tables 7-1. Wire Color, Function, and Datalogger Connection ......10 7-2. Multipliers Required for Average Flux and Total Flux Density in SI and English Units ..............11 B-1. Wiring for Example Programs ............B-1...

  • Page 9: Introduction

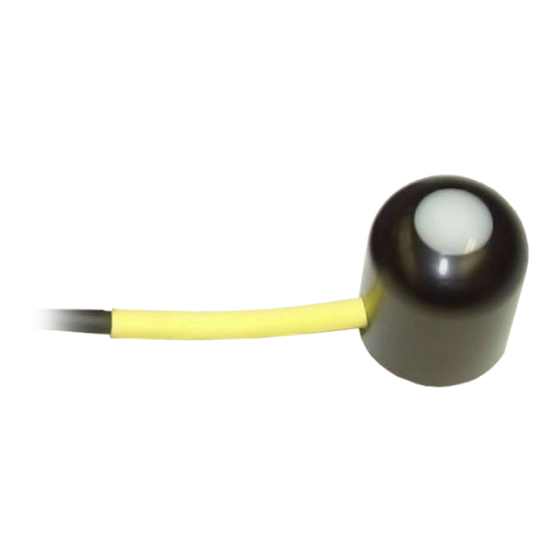

    CS300 Pyranometer Introduction The CS300, manufactured by Apogee Instruments, measures total sun and sky solar radiation for solar, agricultural, meteorological, and hydrological applications. Its spectral range of 360 to 1120 nanometers encompasses most of the shortwave radiation that reaches the Earth’s surface. This pyranometer connects directly to our dataloggers.

  • Page 10: Quickstart

    CS300 Pyranometer QuickStart Short Cut is an easy way to program your datalogger to measure the CS300 and assign datalogger wiring terminals. Use the following procedure to get started. 1. Install Short Cut by clicking on the install file icon. Get the install file from either www.campbellsci.com, the ResourceDVD, or find it in...
  • Page 11 4. Select Datalogger Model and Scan Interval (default of 5 seconds is OK for most applications). Click Next. 5. Under the Available Sensors and Devices list, select Sensors | Meteorological | Solar Radiation folder. Select CS300 Pyranometer. Click to move the selection to the Selected device window. Default...

  • Page 12: Overview

    The resistance of the potentiometer is adjusted when the sensor is calibrated so that all sensors have the same output sensitivity. The CS300 is calibrated against a Kipp and Zonen CM21 under natural sunlight to accurately measure sun plus sky radiation (360 to 1120 nm). The CS300 should not be used under vegetation or artificial lights.

  • Page 13: Specifications

    Dome-shaped head prevents water from accumulating on the sensor head • Compatible with the CWS900-series interfaces, allowing it to be used in a wireless sensor network • Compatible with Campbell Scientific CRBasic dataloggers: CR6, CR200(X) series, CR800 series, CR1000, CR3000, CR5000, and CR9000(X) Power requirements: none, self-powered –2 –1...

  • Page 14: Installation

    (p. 2) Siting The CS300 should be mounted such that no shadows or reflections are cast on it by the tripod/tower or other sensors. The sensor should be mounted with the cable pointing towards the nearest magnetic pole. For example, in the Northern Hemisphere, point the cable toward the North Pole.
  • Page 15 2. Place the CM225’s U-bolt in the bottom holes and secure the CM225 to the crossarm by tightening the U-bolt nuts. CM225 Stand CM200-Series Crossarm U-bolt Nuts 3. Place the CS300 in the center of the 18356 base/leveling fixture. Holes for Mounting Screws Leveling Screws Hole for...

  • Page 16: 015Arm

    4. Loosely mount the 18356 base/leveling fixture on the CM225. Do not fully tighten the three mounting screws. CM225 mounting holes used for the CS300 are indicated in yellow. 5. Turn the leveling screws as required to bring the bubble of the bubble level within the ring.
  • Page 17 CS300 Pyranometer 2. Place the CS300 in the center of the 18356 base/leveling fixture. Holes for Mounting Screws Leveling Screws Hole for Mounting Sensor Bubble Level CS300 18356 Base 3. Loosely mount the 18356 base/leveling fixture on the 015ARM. Do not fully tighten the three mounting screws.

  • Page 18: Wiring To The Datalogger

    8. Remove the green cap after installing the sensor. Save this cap for shipping or storing the sensor. Wiring to the Datalogger A schematic diagram of the CS300 is shown in FIGURE 7-1. Single-Ended Analog Input 500 to 600 Ω...

  • Page 19: Programming

    Programming basics and programming examples for Edlog dataloggers are provided at www.campbellsci.com\old-manuals. –2 The output from the CS300 is 0.2 mV per Wm . The voltage signal from the CS300 is measured using the VoltSE CRBasic instruction. –2 Solar radiation can be recorded as an average flux density (W m ) or daily –2...

  • Page 20: Total Solar Radiation

    Handle the sensor carefully when cleaning. Be careful not CAUTION to scratch the surface of the sensor. Recalibrate the CS300 every three years. Refer to the Assistance page at the beginning of this document for the process of returning the pyranometer to Campbell Scientific for recalibration.

  • Page 21: Importing Short Cut Code Into A Program Editor

    Appendix A. Importing Short Cut Code Into a Program Editor This tutorial shows: • How to import a Short Cut program into a program editor for additional refinement • How to import a wiring diagram from Short Cut into the comments of a custom program Short Cut creates files that can be imported into CRBasic Editor.
  • Page 22 Appendix A. Importing Short Cut Code Into a Program Editor CRXXX–” into the CRBasic program, usually at the head of the file. After pasting, edit the information such that a ' character (single quotation mark) begins each line. This character instructs the datalogger compiler to ignore the line when compiling the datalogger code.

  • Page 23: Example Programs

    Appendix B. Example Programs The following programs measure the CS300 every 10 s and convert the –2 –2 millivolt output to Wm and MJm . Both programs output an hourly average –2 –2 flux (Wm ), and a daily total flux density (MJm ).

  • Page 24: Cr6 Program

    BeginProg 'Main Scan Scan(10,Sec,1,0) 'Default Datalogger Battery Voltage measurement 'BattV' Battery(BattV) 'Default Wiring Panel Temperature measurement 'PTemp_C' PanelTemp(PTemp_C,60) 'CS300 Pyranometer measurements 'SlrMJ' and 'SlrkW' VoltSE(SlrkW,1,mV1000,U1,1,0,60,1,0) If SlrkW<0 Then SlrkW=0 SlrMJ=SlrkW*5E-05 SlrkW=SlrkW*0.005 'Call Data Tables and Store Data CallTable Table1 CallTable Table2...
