System Example; Connecting A Product That Has Rca Video Input Terminals - Alpine ACTIVE VIEW HCE-C305R Owner's Manual

System Example

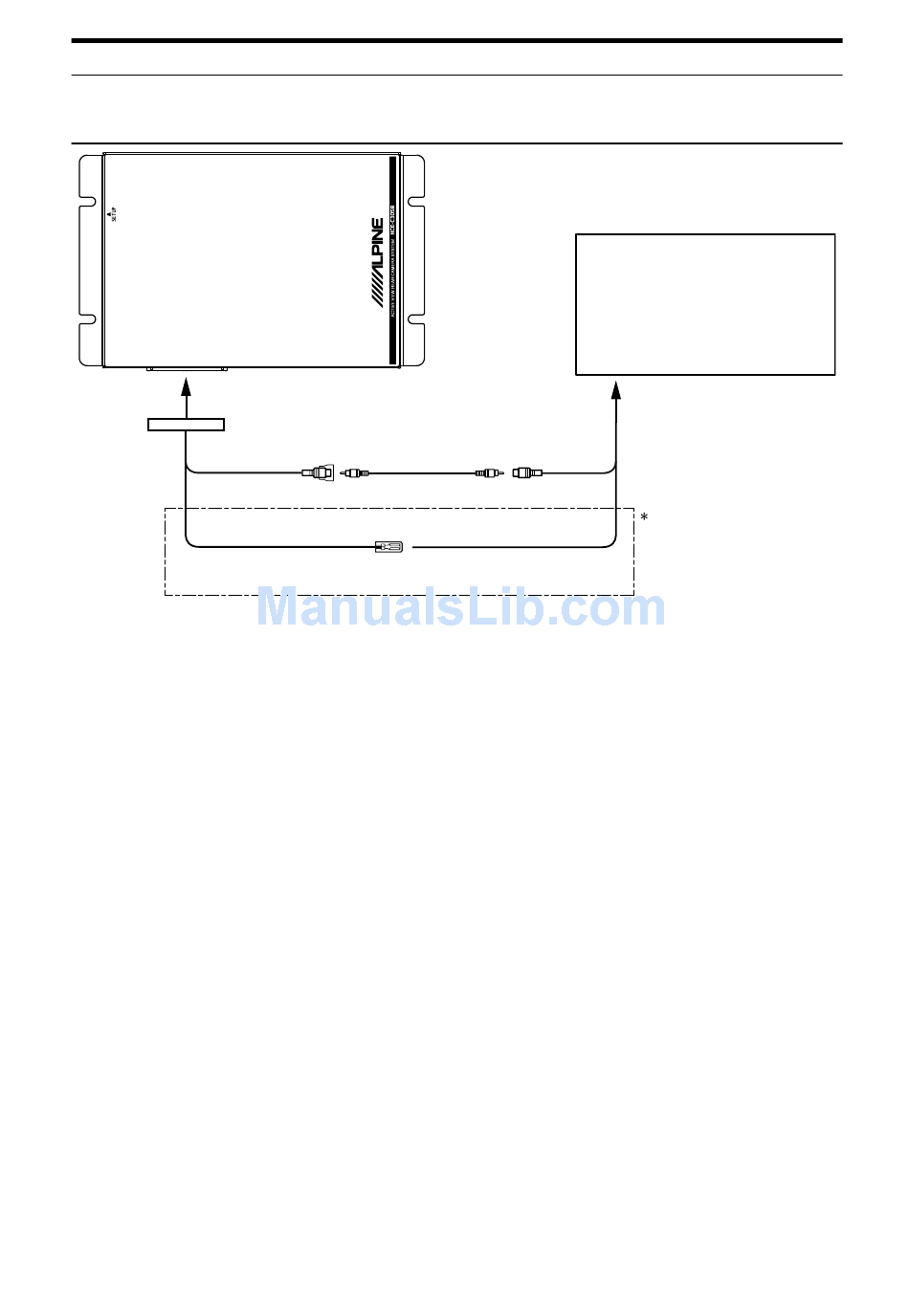

Connecting a product that has RCA video input terminals

* Use this connection for products which only have a Reverse lead trigger for the camera display.
•
When you route and arrange cables around the vehicle interior, do so as to avoid hot/moving parts.
•
Connect the cameras by referring carefully to connection instructions or labels.
24
-EN
Video Output
Connector RCA Extension Cable
Yellow
Orange/Black
Camera Control Lead
Video Input
Connector
Orange/White
Reverse Lead
Navigation or monitor
(commercial product)
