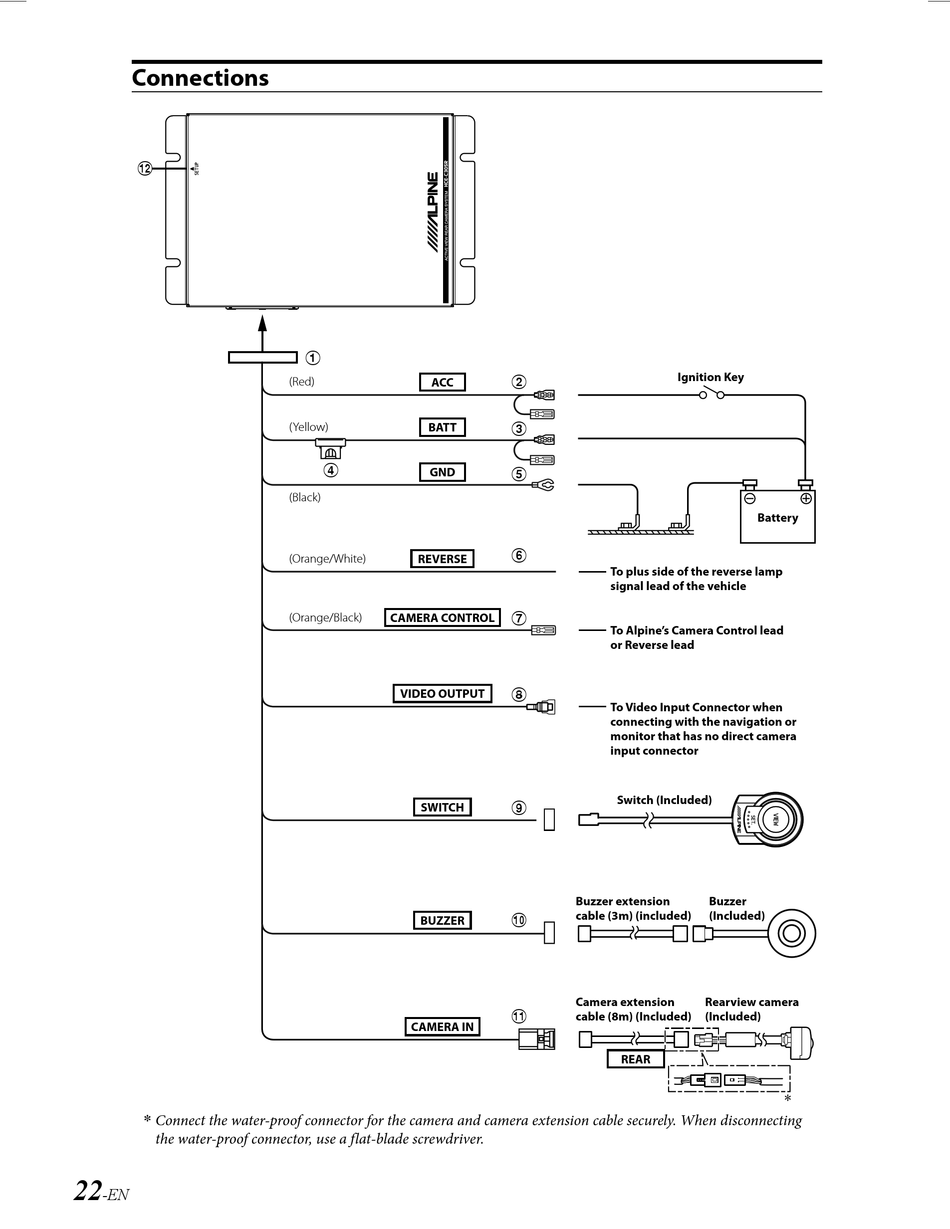

Connections

L
* Connect the water-proof connector for the camera and camera extension cable securely. When disconnecting
the water-proof connector, use a flat-blade screwdriver.
22
-EN
A
(Red)
ACC
(Yellow)
BATT
D
GND
(Black)
(Orange/White)
REVERSE
(Orange/Black) CAMERA CONTROL
VIDEO OUTPUT
SWITCH
BUZZER
CAMERA IN
B
C
E
F
To plus side of the reverse lamp
signal lead of the vehicle
G
To Alpine's Camera Control lead
or Reverse lead
H
To Video Input Connector when
connecting with the navigation or
monitor that has no direct camera
input connector
Switch (Included)
I
Buzzer extension
cable (3m) (included)
J
Camera extension
K
cable (8m) (Included)
REAR
Ignition Key
Battery
Buzzer
(Included)
Rearview camera
(Included)
