Camera Operation

Operation is carried out by pressing the switch, or
shifting the gear lever.
The following settings may be required depending
on the connected navigation/monitor.
•
Rear camera connection: ON setting
Setting to ON is required to display the camera
image on the navigation/monitor.
•
Camera guidelines display: OFF setting
This camera system has its own, calibrated
guidelines. It is not necessary to display the
guidelines found in the navigation/monitor
system being used.
•
Refer also to the owner's manual of the product to
connect.
Turning the Rear Camera On
and Off
Displaying the rear image by
shifting the gear lever
1
Shift the gear lever to the reverse
position (backing up).
The video image behind the car and the
audible warnings depends upon the gear
shift position.
2
If you shift the gear lever to a position
other than reverse (backing up), the
monitor returns to the previous screen.
•
Refer also to the Owner's Manual of the connected
monitor/navigation system.
• Be sure to also check behind and around the car
visually. Use the camera image to assist in showing
conditions behind and around the car.
•
Depending on where the unit is installed, actual
conditions may differ from the displayed image.

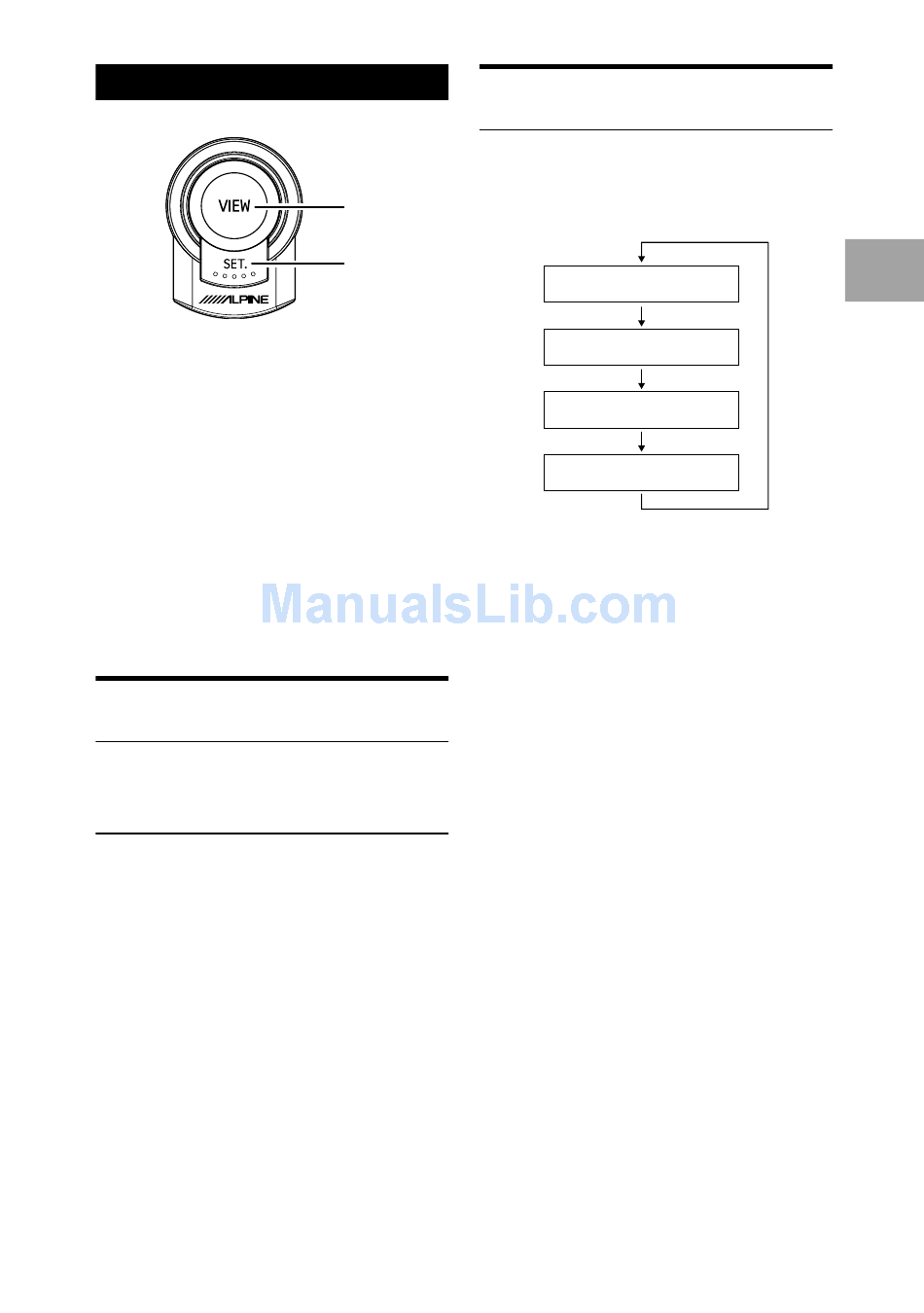

Changing the Rear Image
Configuration
1
Press VIEW.
The image configuration changes every time
VIEW
VIEW is pressed.
SET.
Rear View
Panorama View
Corner View
Ground View
15
-EN
