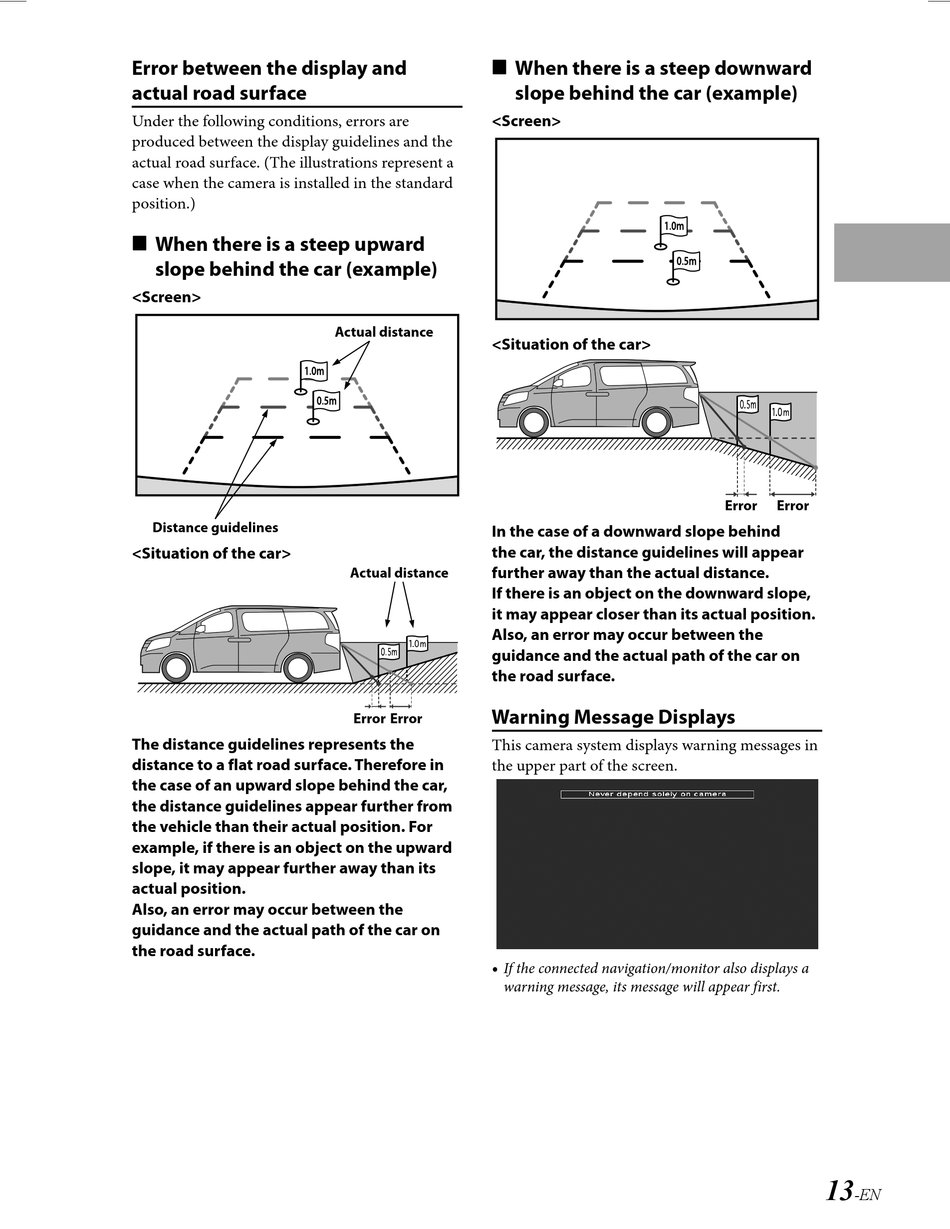

Error between the display and
actual road surface
Under the following conditions, errors are
produced between the display guidelines and the
actual road surface. (The illustrations represent a
case when the camera is installed in the standard
position.)
e
When there is a steep upward
slope behind the car (example)
<Screen>
Distance guidelines
<Situation of the car>
The distance guidelines represents the
distance to a flat road surface. Therefore in
the case of an upward slope behind the car,
the distance guidelines appear further from
the vehicle than their actual position. For
example, if there is an object on the upward
slope, it may appear further away than its
actual position.
Also, an error may occur between the
guidance and the actual path of the car on
the road surface.
e
<Screen>
Actual distance
<Situation of the car>
In the case of a downward slope behind
the car, the distance guidelines will appear
further away than the actual distance.
Actual distance
If there is an object on the downward slope,
it may appear closer than its actual position.
Also, an error may occur between the
guidance and the actual path of the car on
the road surface.

Warning Message Displays

Error Error
This camera system displays warning messages in
the upper part of the screen.
•
When there is a steep downward
slope behind the car (example)
If the connected navigation/monitor also displays a
warning message, its message will appear first.
