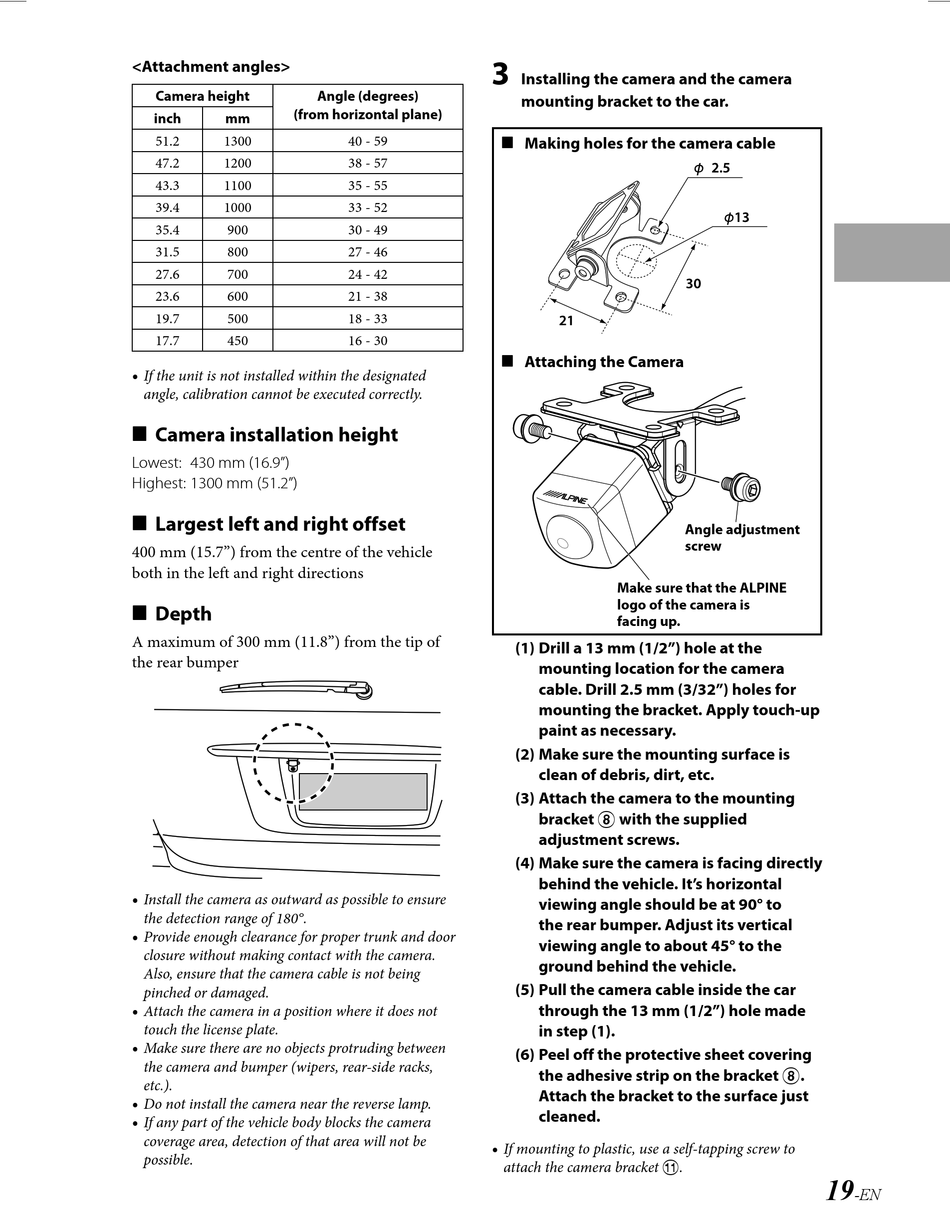

Alpine ACTIVE VIEW HCE-C305R Owner's Manual page 21

<Attachment angles>
Camera height
(from horizontal plane)
inch mm
51.2 1300
47.2 1200
43.3 1100
39.4 1000
35.4 900
31.5 800
27.6 700
23.6 600
19.7 500
17.7 450
•
If the unit is not installed within the designated
angle, calibration cannot be executed correctly.
e
Camera installation height
Lowest: 430 mm (16.9")
Highest: 1300 mm (51.2")
e
Largest left and right offset
400 mm (15.7") from the centre of the vehicle
both in the left and right directions
e
Depth
A maximum of 300 mm (11.8") from the tip of
the rear bumper
•
Install the camera as outward as possible to ensure
the detection range of 180°.
•
Provide enough clearance for proper trunk and door
closure without making contact with the camera.
Also, ensure that the camera cable is not being
pinched or damaged.
• Attach the camera in a position where it does not
touch the license plate.
•
Make sure there are no objects protruding between
the camera and bumper (wipers, rear-side racks,
etc.).
• Do not install the camera near the reverse lamp.
•
If any part of the vehicle body blocks the camera
coverage area, detection of that area will not be
possible.
Angle (degrees)
40 - 59
38 - 57
35 - 55
33 - 52
30 - 49
27 - 46
24 - 42
21 - 38
18 - 33
16 - 30
3
Installing the camera and the camera
mounting bracket to the car.
e
Making holes for the camera cable
e
Attaching the Camera
Make sure that the ALPINE
logo of the camera is
facing up.
(1) Drill a 13 mm (1/2") hole at the
mounting location for the camera
cable. Drill 2.5 mm (3/32") holes for
mounting the bracket. Apply touch-up
paint as necessary.
(2) Make sure the mounting surface is
clean of debris, dirt, etc.
(3) Attach the camera to the mounting
bracket H with the supplied
adjustment screws.
(4) Make sure the camera is facing directly
behind the vehicle. It's horizontal
viewing angle should be at 90° to
the rear bumper. Adjust its vertical
viewing angle to about 45° to the
ground behind the vehicle.
(5) Pull the camera cable inside the car
through the 13 mm (1/2") hole made
in step (1).
(6) Peel off the protective sheet covering
the adhesive strip on the bracket H.
Attach the bracket to the surface just
cleaned.
•
If mounting to plastic, use a self-tapping screw to
attach the camera bracket K.
Angle adjustment
screw
