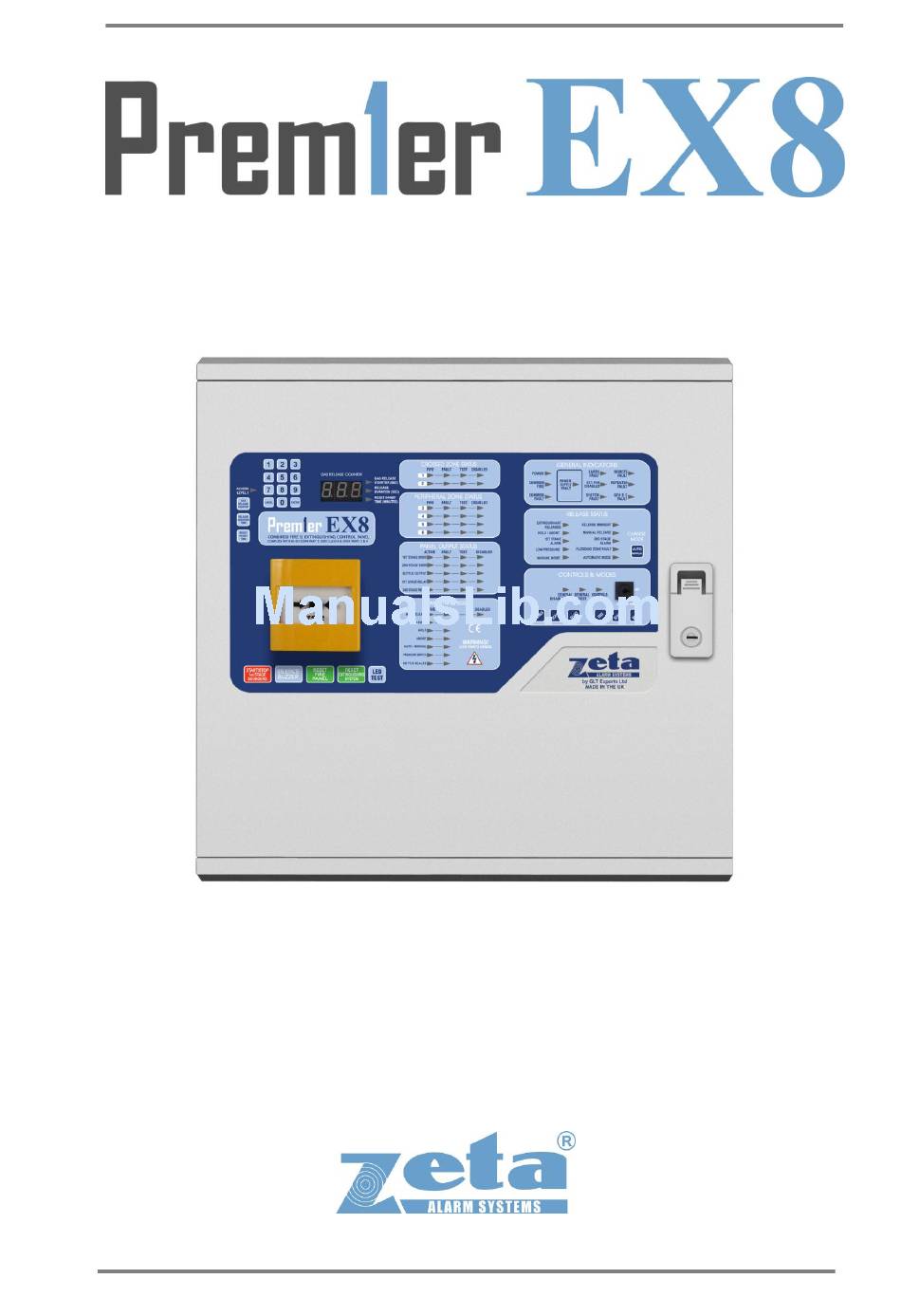

PREMIER EX8 EXTINGUISHING PANEL USER MANUAL COMBINED FIRE & EXTINGUISHING CONTROL PANEL COMPLIES WITH BS EN 12094 PART 1 & EN54 PARTS 2 & 4 USER MANUAL Approved Document No: GLT.MAN-132 Issue : 1.2 Author: NRPJ Date: 06/10/2010... -
Page 2: Table Of Contents
Extinguishing Panel - USER MANUAL INDEX INDEX ............................2 INTRODUCTION ........................3 INDICATIONS & CONTROLS ....................4 Indications ..........................4 Controls ..........................6 PANEL OPERATION ....................... 7 Normal Operation ........................7 Fire Alarm Condition (Peripheral Zones) ................7 What to do in the event of a fire..................7 Resetting from an alarm condition .................. -
Page 3: Introduction
Quiescent condition – ie System Normal Fire condition – ie a fire on one of the peripheral zones o The Premier EX8 will enter the fire condition within 1 second of a detector on a peripheral zone signalling an alarm. ... -
Page 4: Indications & Controls
Extinguishing Panel - USER MANUAL INDICATIONS & CONTROLS Indications Here is the fascia for the Premier EX8 panel. SUPPL Y COMBINED FIRE & EXTINGUISHING CONTROL P ANEL COMPLIES WITH BS EN 12094 P ART 1:2003 CLASS A & EN54 P ARTS 2 & 4... - Page 5 Extinguishing Panel - USER MANUAL The Premier EX8 has the following LED indicators:- COLOUR FUNCTION / MEANING POWER GREEN The panel is supplied with power, either battery, mains or both COMMON FIRE There is an alarm on the system. Check which zone caused the alarm...
-
Page 6: Controls
Note that the controls can only be used after the keyswitch has been turned to the CONTROLS ENABLED (ON) position. As the Premier EX8 is a combined Extinguishing & fire alarm control panel, it is possible that both the extinguishing section, and the fire alarm section are in alarm at the same time. -
Page 7: Panel Operation
7. Record findings in the fire alarm log book. Resetting from an alarm condition After the relevant action has been taken, the Premier EX8 fire alarm panel can be reset by the following:- Press Start/Stop sounder button, This will silence the external sounders. -
Page 8: First Stage Alarm
Extinguishing Panel - USER MANUAL First Stage Alarm On detection of a “FIRE” in either Zone 1 or Zone 2, the zone fire LED will be illuminated and the internal buzzer will be on. The first stage LED and first stage sounder will be on. -
Page 9: Reset
Extinguishing Panel - USER MANUAL Reset To reset panel from an alarm condition, press Start/Stop Sounders, Silence Buzzer, then Reset. If the panel enters the second stage alarm (while in automatic mode), the panel cannot be reset until the reset inhibit timer has finished it`s countdown. The panel can NOT be reset from a fault condition. -
Page 10: Disablement
Extinguishing Panel - USER MANUAL DISABLEMENT The Premier EX8 allows any of the following to be disabled to aid commissioning and assist routine maintenance work:- Crossed zones Peripheral Zones First stage sounders Second stage sounders & Bottle output (Disabled together) ... -
Page 11: Log Book
Extinguishing Panel - USER MANUAL LOG BOOK MAINTENANCE WORK DATE TIME ZONE / LOCATION REASON FOR WORK WORK CARRIED OUT ADDITIONAL WORK REQUIRED SIGNED PAGE 11 Approved Document No: GLT.MAN-132 Issue : 1.2 Author: NRPJ Date: 06/10/2010... -
Page 12: False Alarms
Extinguishing Panel - USER MANUAL FALSE ALARMS DATE TIME ZONE / CAUSE (IF KNOWN) MAINTENANCE MAINTENANCE CATEGORY OF FURTHER SIGNED LOCATION OR ACTIVITIES IN VISIT NEEDED FINDINGS FALSE ALARM ACTION ALARM AREA (YES/NO) REQUIRED PAGE 12 Approved Document No: GLT.MAN-132 Issue : 1.2 Author: NRPJ Date: 06/10/2010... -
Page 13: All Other Events
Extinguishing Panel - USER MANUAL ALL OTHER EVENTS DATE TIME ZONE / LOCATION DETAILS OF EVENT ACTION DATE INITIALS (INCLUDING CAUSE IF KNOWN) REQUIRED COMPLETED PAGE 13 Approved Document No: GLT.MAN-132 Issue : 1.2 Author: NRPJ Date: 06/10/2010...
