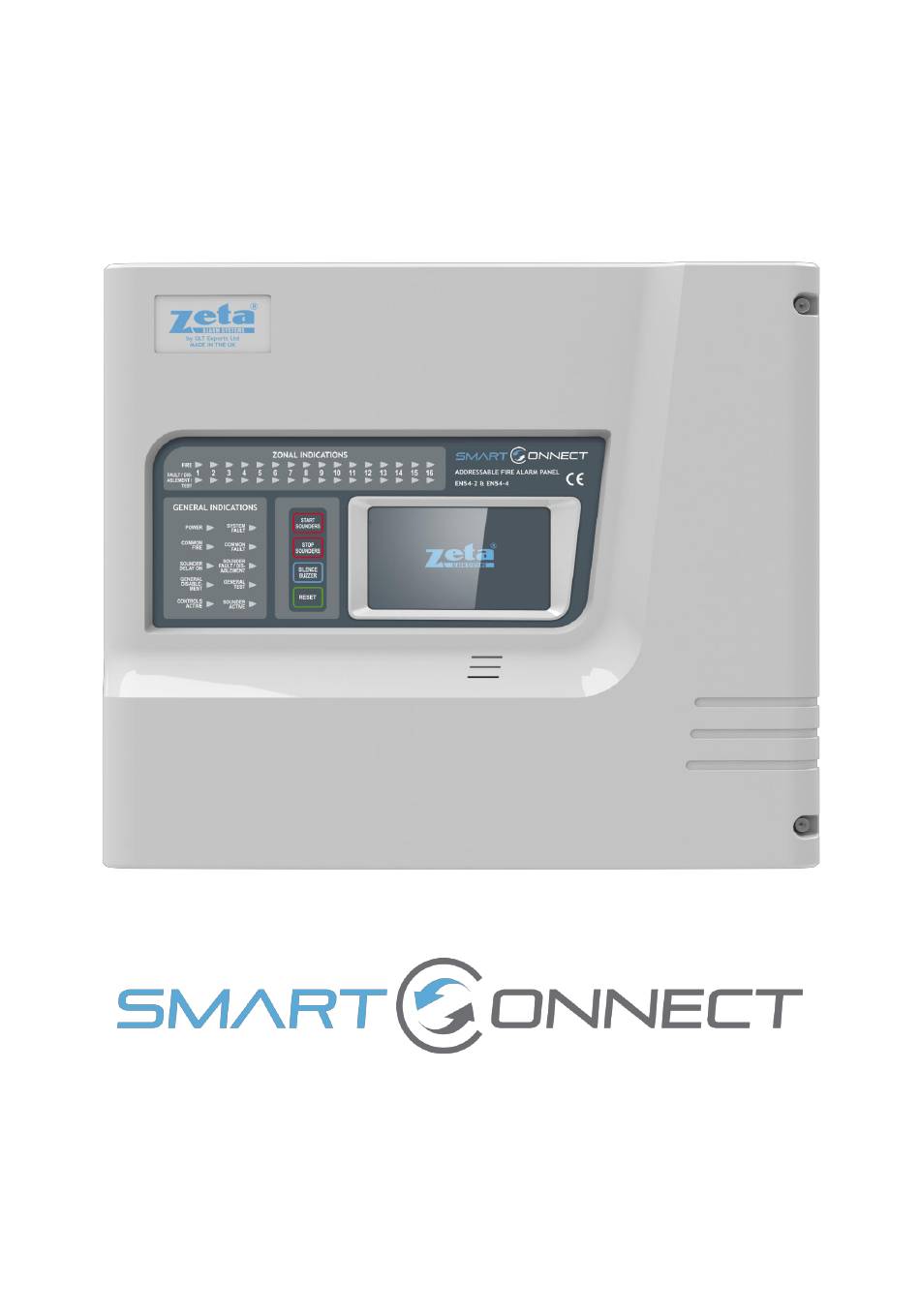

- Page 1 www.acornfiresecurity.com Smart Connect Single loop touch screen panel ONE LOOP TOUCH SCREEN ANALOGUE ADDRESSABLE FIRE ALARM PANEL USER MANUAL www.acornfiresecurity.com...
-
Page 2: Table Of Contents
www.acornfiresecurity.com Smart Connect Single loop touch screen panel TABLE OF CONTENTS WHAT TO DO IF THE FIRE ALARM PANEL SHOWS A FAULT (YELLOW LED)……………………………………..2 1. FIRE ALARM CONTROL PANEL SAFETY ISSUES…………………………………………………………………………..3 2. THE PURPOSE OF A FIRE ALARM SYSTEM…………………………………………………………………………………3 3. USER RESPONSIBILITIES & MAINTAINENCE OF THE FIRE ALARM SYSTEM, INCLUDING THE FACP & ITS INTEGRAL PSE………………………………………………………………………………………………………………………..4 Daily Inspection………………………………………………………………………………………………………………...…...4 Weekly Test (you may wish to temporarily disconnect the Aux relay during the following... -
Page 3: What To Do If The Fire Alarm Panel Shows A Fault (Yellow Led)
www.acornfiresecurity.com Smart Connect Single loop touch screen panel WHAT TO DO IF THE FIRE ALARM PANEL SHOWS AN ALARM (RED LED) Write down the LCD reading and which LEDs are lit (either in the log book, or on a piece of paper for transferring to the log book later). -
Page 4: Fire Alarm Control Panel Safety Issues
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 1. FIRE ALARM CONTROL PANEL SAFETY ISSUES When the Smart Connect panel is operating normally, i.e. not being tended by service personnel, the front cover must be closed. This equipment will operate safely provided it has been installed correctly in compliance with the Installation Manual. It is recommended that the system is serviced frequently. -
Page 5: User Responsibilities & Maintainence Of The Fire Alarm System, Including The Facp
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 3. USER RESPONSIBILITIES & MAINTAINENCE OF THE FIRE ALARM SYSTEM, INCLUDING THE FACP & ITS INTEGRAL PSE According to the British Standard Code for Fire Detection and Alarm Systems for Commercial Buildings (BS 5839-1), the owner or person having control of the premises should appoint a responsible person to oversee the effective operation of the Fire Alarm System. -
Page 6: Every Five Years (To Be Carried Out By Authorised Service Personnel Only)
www.acornfiresecurity.com Smart Connect Single loop touch screen panel Annual Test (to be carried out by authorised service personnel only) Check every detector, call point, sounder and all auxiliary equipment for correct operation. Check Switch Mode cage INPUT Voltage (29.5 VAC), Charger Voltage (27.3V off load, adjusted with VR1) & Battery Voltage (25-27V) Every Five Years (to be carried out by authorised service personnel only) ... -
Page 7: Panel Indications & Controls
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 4. PANEL INDICATIONS & CONTROLS 4.1 PANEL INDICATIONS The LEDs used for zonal fire indication are reserved solely for this purpose. The other LEDs in this zonal range are shared between fault, disable and test. These are accompanied by the Common Fault LED, the General Disablement LED and the Test LED, respectively. - Page 8 www.acornfiresecurity.com Smart Connect Single loop touch screen panel Main Menu Icons Sub menu tabs Numeric keypad Alpha keypad Scroll buttons Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016 www.acornfiresecurity.com...
-
Page 9: In The Event Of An Alarm
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 4.3 IN THE EVENT OF AN ALARM After the site has been deemed safe for return, to return the panel to normal: - Enter the user access code. Press the STOP SOUNDERS button to turn off the alarm sounders. Press the SILENCE BUZZER button to turn off the panel’s buzzer. -
Page 10: What The Leds Mean
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 4.6 WHAT THE LEDS MEAN The LEDs on the Smart Connect can be grouped into the following sections: General Indications: These are Common Fire & Common Fault. This light in conjunction with another LED which indicates the fire or fault condition, as a backup indication. -
Page 11: The Fire Condition
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 5. THE FIRE CONDITION 5.1 HOW THE Smart Connect INDICATES AN ALARM When the Panel is set into alarm by a Detector or Manual Call Point located in a zone that is not already in alarm it will: - ... -
Page 12: Turning On The Alarm Sounders From The Facp (To Evacuate The Building)
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 5.4 TURNING ON THE ALARM SOUNDERS FROM THE FACP (TO EVACUATE THE BUILDING) If a user comes across a fire in the protected building, the alarm can also be raised by operating the START SOUNDERS button on the front of the Fire Alarm Control Panel. -
Page 13: The Fault Condition
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 6. THE FAULT CONDITION The fire alarm panel monitors itself, and any equipment connected to it, for any faults that can occur. If a fault occurs, the panel responds by activating its Internal buzzer and lighting the General Fault light and any other Fault light(s) relevant to the particular fault. -
Page 14: Disablements
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 7. DISABLEMENTS 7.1 REASONS FOR DISABLING CERTAIN PARTS OF A FIRE ALARM SYSTEM Certain parts of this Fire Alarm Panel can be temporarily disabled (i.e. switched off) to suit prevailing conditions. For example, if there is a risk of a False Alarm in a zone, for example, from vehicle exhaust smoke in a loading bay, it is possible for the user to disable that zone during the risk period and then enable it again afterwards. -
Page 15: System Description
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 8. SYSTEM DESCRIPTION FIRE ALARM SYSTEM SUMMARY FIRE ZONE INFORMATION ZONE DESCRIPTION NO. OF NO. OF ZONE NO. NO. OF MCPS NO. OF I/OS A brief description of all the rooms and areas contained in DETECTORS SOUNDERS each zone. - Page 16 www.acornfiresecurity.com Smart Connect Single loop touch screen panel FIRE & FAULT RELAYS INFORMATION TYPE OF OUTPUT CONNECTED WHAT HAPPENS WHEN ACTIVATED? FIRE RELAY YES/NO FAULT RELAY YES/NO ADDITIONAL INFORMATION Any additional information the User needs to know about should be inserted into this box including details of the routing of any additional outputs, details of inputs utilised, etc.
-
Page 17: Detailed Loop Contents
www.acornfiresecurity.com Smart Connect Single loop touch screen panel DETAILED LOOP CONTENTS: This must be fully recorded by an authorised Engineer before system handover. (A Loop Report from the Smart Connect PC Configuration software will also be acceptable) ADDR ZONE TYPE LABEL ADDR ZONE... -
Page 18: Detailed Loop Contents
www.acornfiresecurity.com Smart Connect Single loop touch screen panel DETAILED LOOP CONTENTS: continued ADDR ZONE TYPE LABEL ADDR ZONE TYPE LABEL ADDR ZONE TYPE LABEL Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016 www.acornfiresecurity.com... -
Page 19: Fire Alarm Log Book
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 9. FIRE ALARM LOG BOOK It is recommended that this LOG BOOK section of the Manual be maintained by the responsible person(s) on site, who should ensure every event is properly recorded (including fire alarm conditions, failures, tests, temporary disconnections, disablements, enablement’s, dates of installing engineers’... -
Page 20: Maintenance Work
www.acornfiresecurity.com Smart Connect Single loop touch screen panel MAINTENANCE WORK LOOP & ZONE/ ADDITIONAL WORK DATE TIME REASON FOR WORK WORK CARRIED OUT SIGNED ADDRESS LOCATION REQUIRED Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016 www.acornfiresecurity.com... -
Page 21: Maintenance Work (Continued)
www.acornfiresecurity.com Smart Connect Single loop touch screen panel MAINTENANCE WORK (CONTINUED) LOOP & ZONE/ ADDITIONAL WORK DATE TIME REASON FOR WORK WORK CARRIED OUT SIGNED ADDRESS LOCATION REQUIRED Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016 www.acornfiresecurity.com... - Page 22 www.acornfiresecurity.com Smart Connect Single loop touch screen panel UNWANTED (FALSE) ALARMS CAUSE (IF MAINTENANCE FURTHER LOOP & ZONE/ KNOWN) OR MAINTENAN CATEGORY OF DATE TIME VISIT NEEDED ACTION SIGNED ADDRESS LOCATION ACTIVITIES IN CE FINDINGS FALSE ALARM (YES/NO) REQUIRED ALARM AREA Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016...
-
Page 23: Unwanted (False) Alarms (Continued)
www.acornfiresecurity.com Smart Connect Single loop touch screen panel UNWANTED (FALSE) ALARMS (CONTINUED) CAUSE (IF MAINTENANCE FURTHER LOOP & ZONE/ KNOWN) OR MAINTENAN CATEGORY OF DATE TIME VISIT NEEDED ACTION SIGNED ADDRESS LOCATION ACTIVITIES IN CE FINDINGS FALSE ALARM (YES/NO) REQUIRED ALARM AREA Doc: GLT-229-7-2 Issue: 1... -
Page 24: All Events Other Than Maintenance Work Or False Alarms
www.acornfiresecurity.com Smart Connect Single loop touch screen panel ALL EVENTS OTHER THAN MAINTENANCE WORK OR FALSE ALARMS DETAILS OF EVENT LOOP & ZONE/ DATE DATE TIME (INCLUDING CAUSE IF ACTION REQUIRED INITIALS ADDRESS LOCATION COMPLETED KNOWN) Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016 www.acornfiresecurity.com... -
Page 25: All Events Other Than Maintenance Work Or False Alarms (Continued)
www.acornfiresecurity.com Smart Connect Single loop touch screen panel ALL EVENTS OTHER THAN MAINTENANCE WORK OR FALSE ALARMS (CONTINUED) DETAILS OF EVENT LOOP & ZONE/ DATE DATE TIME (INCLUDING CAUSE IF ACTION REQUIRED INITIALS ADDRESS LOCATION COMPLETED KNOWN) Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016 www.acornfiresecurity.com... -
Page 26: Commissioning The System, Including Power Supply Equipment P.s.e
www.acornfiresecurity.com Smart Connect Single loop touch screen panel 10. COMMISSIONING THE SYSTEM, INCLUDING POWER SUPPLY EQUIPMENT P.S.E. The commissioning of this fire alarm system should be performed by a qualified commissioning engineer, who has an understanding of sections 2, 3, & 4 of BS5839 pt 1 (i.e. Design considerations, Limitations of false alarms, Installation recommendations). - Page 27 Single loop touch screen panel Design Certificate (Page 1 of 2) Certificate of DESIGN for the Zeta Smart Connect Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the design of...
- Page 28 www.acornfiresecurity.com Smart Connect Single loop touch screen panel Design Certificate (Page 2 of 2) Measures incorporated to limit false alarms. Account has to be taken of the guidance contained in section 3 of BS 5839-1 and, more specifically (tick as appropriate): The System is manual.
- Page 29 www.acornfiresecurity.com Smart Connect Single loop touch screen panel Installation Certificate Certificate of INSTALLATION for the Smart Connect Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the installation of the fire alarm system, particulars of which are set out below, CERTIFY that the said installation for which I/we have been responsible complies to the best of my/our knowledge and belief with the specifications described below, and with the recommendations of BS5839-1, except for the variations, if any, stated in this certificate...
- Page 30 Smart Connect Single loop touch screen panel Commissioning Certificate Certificate of COMMISSIONING for the Zeta Smart Connect Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the commissioning of the fire alarm system, particulars of which are set out below, CERTIFY that the said work...
- Page 31 Smart Connect Single loop touch screen panel Acceptance Certificate Certificate of ACCEPTANCE for the Zeta Smart Connect Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the acceptance of the fire alarm system, particulars of which are set out below, ACCEPT the system on behalf...
- Page 32 www.acornfiresecurity.com Smart Connect Single loop touch screen panel User Manual Modification History ***Do Not Print This Page when creating PDF of the Manual*** ISSUE DATE CHANGES 11/03/2016 First draft Doc: GLT-229-7-2 Issue: 1 Date: 11/03/2016 www.acornfiresecurity.com...
