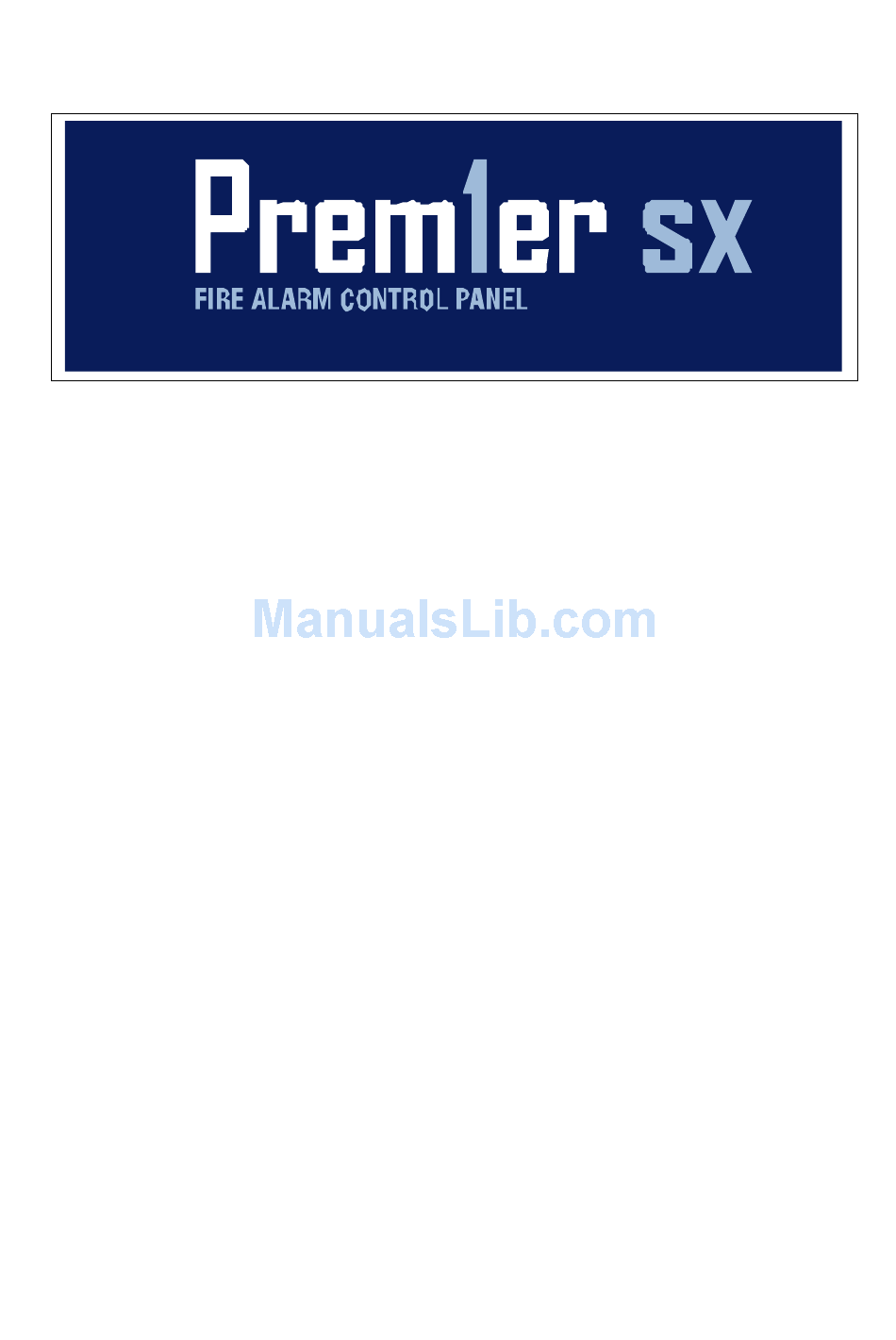

- Page 1 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
PREMIER SX INSTALLATION MANUAL. CONTENTS INTRODUCTION…….…………………………………………………………… HANDLING THE PCBS USING THIS MANUAL ABOUT THE PREMIER SX FACP & INTEGRAL PSE DESIGNING THE SYSTEM EQUIPMENT GUARANTEE FIRST FIX GUIDELINES…………………………………………………………. RECOMMENDED CABLE TYPES AND THEIR LIMITATIONS MAINS WIRING RECOMMENDATIONS DETECTOR CIRCUIT WIRING DIAGRAM SOUNDER CIRCUIT WIRING DIAGRAM AUXILIARY INPUT WIRING EXAMPLES AUXILIARY OUTPUT WIRING (VOLTAGE FREE CHANGEOVER CONTACTS) -
Page 3: Introduction
PREMIER SX INSTALLATION MANUAL. 1.INTRODUCTION MUST THIS FIRE ALARM CONTROL PANEL IS CLASS 1 EQUIPMENT AND BE EARTHED This equipment must be installed and maintained by a qualified and technically experienced person. 1.1 HANDLING THE PCBS If the PCBs are to be removed to ease fitting the enclosure and cables, care must be taken to avoid damage by static. -
Page 4: First Fix Guidelines
PREMIER SX INSTALLATION MANUAL. 2. FIRST FIX All wiring must be installed to meet BS5839: Pt1: 2002 and BS 7671 (Wiring Regs) standards. Other National standards of fire alarm system installation should be adhered to where applicable. 2.1 RECOMMENDED CABLE TYPES AND THEIR LIMITATIONS Screened cables should be used throughout the installation to help shield the Panel from outside interference and ensure EMC compatibility. -
Page 5: Sounder Circuit Wiring Diagram
PREMIER SX INSTALLATION MANUAL. An End of Line diode (provided in the Panel) must be connected across the terminals of the last device on each circuit to allow the wiring to be monitored. It is polarity sensitive, and connected cathode (STRIPE) to +ve Using detector bases with continuity diodes fitted will allow all devices, including Manual Call Points to remain operational if a detector is removed from its base. -
Page 6: Auxiliary Input Wiring Examples
PREMIER SX INSTALLATION MANUAL. 2.5 AUXILIARY INPUT WIRING EXAMPLES There is one non-latching auxiliary input connection on the Fire Alarm Panel. Class Change Input (CC): This Will energise all alarm continuously when the CC terminals are shorted together. If the class change is triggered, the fire auxiliary relay output will not operate. Typical auxiliary input wiring options AUX FIRE RELAY CM NO... -
Page 7: Mounting The Fire Alarm Panel
PREMIER SX INSTALLATION MANUAL. 3. MOUNTING THE FIRE ALARM PANEL It is recommended that the panels door be removed to avoid accidental damage. Also, the termination PCB could be removed and stored in a safe place, while fixing the back box to the wall. 3.1 PLANNING CABLE ENTRY Fig.2 below shows the location of the cable entries to facilitate planning of wiring (home runs) to be brought to the panel. -
Page 8: Connecting Mains & Battery Power
PREMIER SX INSTALLATION MANUAL. 4 CONNECTING MAINS & BATTERY POWER 4.1 CONNECTING THE MAINS POWER The panel should be connected to 220-240V AC by a 3A INLET MAINS rated spur to the fuse box with 1.0mm to 2.5mm 3-core cable. Nothing else should be connected to this supply SUPPLY The Live, Earth and Neutral connections are marked on the PCB. -
Page 9: Field Device Termination
PREMIER SX INSTALLATION MANUAL. BATTERY INTERCONNECTING TO PCB CABLE 2 x thermistors cable tied into place SEALED LEAD ACID BATTERY SEALED LEAD ACID BATTERY 12V / 7 Ah 12V / 7Ah Figure 4a:Thermistor location These thermistors are used to prevent overcharging the batteries in high ambient temperatures. 5. -
Page 10: Auxiliary Input And Output Terminations
PREMIER SX INSTALLATION MANUAL. Expanded View Of Gland Gland & Screen Cable Rubber Seal Screen cable Figure 6a: Expanded view of brass cable gland. 5.2 AUXILIARY INPUT AND OUTPUT TERMINATIONS Connect auxiliary input and output cables to the appropriate connector block terminals on the Termination PCB (See Page 15). -
Page 11: Delay Indication And Override
PREMIER SX INSTALLATION MANUAL. 6.3 DELAY INDICATION AND OVERRIDE If a delay is set, the fire panel will light the General Disablement LED and Delay (DEL) LED to indicate that the sounders are delayed. If an alarm occurs, the fire LEDs will light as usual, but the sounders will not start until the delay period has expired. -
Page 12: Zone Test
PREMIER SX INSTALLATION MANUAL. 8. ZONE TEST 8.1 WHY USE ZONE TEST To aid commissioning and assist routine maintenance check, a non-latching ‘one man test’ facility is available. When a detector or manual call point is triggered on any zone in Test, the Alarm sounders operate for approximately seven seconds on and seven seconds off. -
Page 13: System Fault
PREMIER SX INSTALLATION MANUAL. 9.2 SYSTEM FAULT A system fault is an abnormal microprocessor running condition due to various unexpected phenomena This will result in the panel attempting to correct itself. Should this fault occur, the System Fault LED, General Fault LED, General Fault relay and fault internal buzzer will be constantly active until the control keyswitch is turned from off position to control enable position. -
Page 14: Standby Battery Calculation Guide
PREMIER SX INSTALLATION MANUAL. 10. STANDBY BATTERY CALCULATION In order to calculate the standby battery size required, the following formula can be used:- Battery Size (Standby time in Amp Hours) = 1.25 x [(T ) + (T x (I Where: = Maximum time in hours required for the alarm [½... -
Page 15: Connections
PREMIER SX INSTALLATION MANUAL. 11. PCB TERMINATION CONNECTIONS. 1 2 3 4 5 6 7 8 9 CONN 27 CONN5 SND1 SND2 400mA 400mA LIVE NEUT- EARTH CHARGER En54 SUP BATTERY 1.6A 1.6A 1.6A MAINS TO TRANSFORMER PRIMARY 11.1 CONNECTIONS Connection No Description ZONE 1 +&-... -
Page 16: Enclosure Specifications
PREMIER SX INSTALLATION MANUAL. 12. PANEL SPECIFICATIONS 12.1 ENCLOSURE SPECIFICATIONS DESCRIPTION VALUE ENCLOSURE SIZE 355 x 275 x 100 mm TOP CABLE ENTRIES 12 x 19mm DIA GROMMETED ENTRIES BOTTOM CABLE ENTRIES 2 x 19mm KNOCKOUT ENTRIES REAR CABLE ENTRIES 2 SNAP OUTS, 60 x 20mm 12.2 ELECTRICAL SPECIFICATIONS ELECTRICAL DESCRIPTION...
