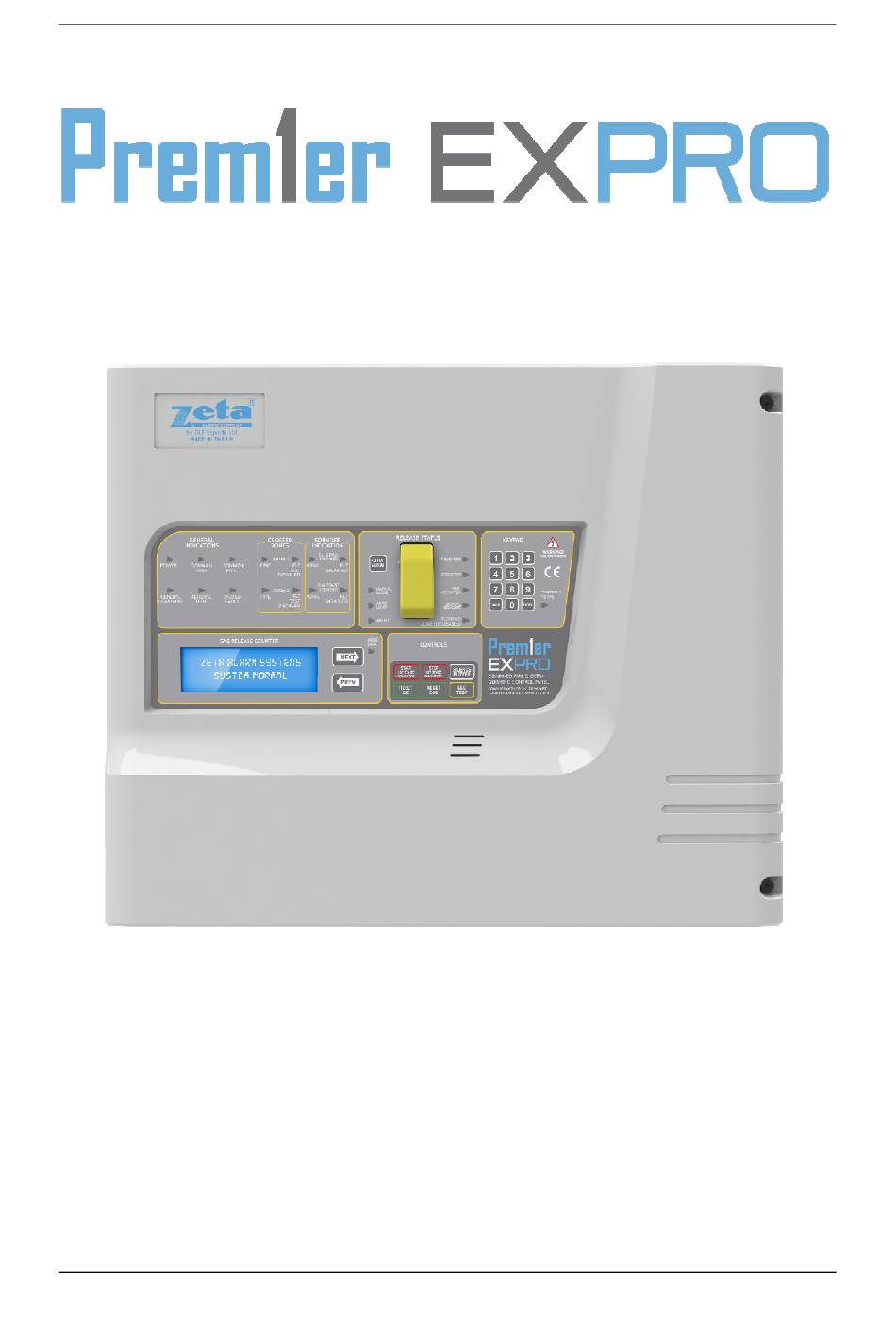

- Page 1 EXPro User Manual USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Approved Document No: GLT-212-7-2 Page 1 Issue: 1.1 Author: NRPJ Date: 14/07/2014...
-
Page 2: Table Of Contents
EXPro User Manual Contents INTRODUCTION ............................3 INDICATIONS & CONTROLS ........................5 INDICATIONS ............................5 CONTROLS ............................8 PANEL MENUS ............................9 PANEL OPERATION ..........................12 NORMAL OPERATION ........................12 FIRE ALARM CONDITION ........................12 WHAT TO DO IN THE EVENT OF A FIRE..................12 RESETTING FROM AN ALARM CONDITION .................. -
Page 3: Introduction
Test condition • Pre-activated condition • The Premier EXPRO will enter the pre-activated condition (first stage alarm) within 1 second of a detector on one of the crossed zones signalling an alarm Activated condition • The Premier EXPRO will enter the activated (second stage alarm) condition within 1 second of the second crossed zone signalling an alarm. - Page 4 EXPro User Manual USER RESPONSIBILITIES & MAINTAINENCE OF THE FIRE ALARM SYSTEM, INCLUDING THE FACP & ITS INTEGRAL PSE According to the British Standard Code for Fire Detection and Alarm Systems for Commercial Buildings (BS5839: Pt 1: 2002), the owner or person having control of the premises should appoint a responsible person to oversee the effective operation of the Fire Alarm System (Clause 47.1).
-
Page 5: Indications & Controls
National wiring regulations (in the UK this is the IEE Wiring Regulations). The Batteries should be replaced because SLA batteries have a working life of 5 years. INDICATIONS & CONTROLS INDICATIONS Here is the fascia for the Premier EXPRO panel. Figure 1. EXPro fascia layout Approved Document No: GLT-212-7-2 Page 5... - Page 6 EXPro User Manual Each function has its own indication LED. There are Alarm (Active), Fault, Test & Disablement LEDs for most panel inputs and outputs. For most functions, more than one LED will light (e.g. zone 1 fire and common fire) The second stage sounder is pulsed during the activated condition, and its sounder active LED will also pulse in time with the actual sounder output.
- Page 7 EXPro User Manual aborted Released Indicates the gas has been released Activated Indicates when both 1 and 2 stage zones are in alarm Pre-Activated Indicates when there is a first stage alarm Manual Release Indicates when the Manual release switch has been activated Flooding Zone FLT Yellow...
-
Page 8: Controls
EXPro User Manual CONTROLS Label Start 1 Stage Sounders Used to start the 1 stage sounders Stop 1 Stage Sounders Used to silence the 1 stage sounders Silence Buzzer Used to silence the internal buzzer in a fault or alarm condition Reset Used to reset the fire detection zone Reset CIE... -
Page 9: Panel Menus
EXPro User Manual PANEL MENUS To access the panel requires the user code to be entered (the default code is 2222). Once the Controls Active LED is on you will now be able to start and stop the first stage sounders, reset, silence the inter buzzer and access the relays configuration menu. - Page 10 EXPro User Manual Zone 1 Prevents the panel from responding to an alarm in zone 1 Zone 2 Prevents the panel from responding to an alarm in zone 2 Gas Fired input Prevents the panel from responding to the gas fired signal Manual release Prevents the panel from responding to a manual release Auto Manual...
- Page 11 EXPro User Manual Change Time: Allows the user / engineer to set the system clock. SET UP TIME 12:00 Approved Document No: GLT-212-7-2 Page 11 Issue: 1.1 Author: NRPJ Date: 14/07/2014...
-
Page 12: Panel Operation
7. Record findings in the fire alarm log book. RESETTING FROM AN ALARM CONDITION After the relevant action has been taken, the Premier EXPro fire alarm panel can be reset by the following:- 1. Gain user access to the panel by entering the password (default 2222) 2. -
Page 13: Manual Evacuation
EXPro User Manual MANUAL EVACUATION The first stage sounders can be started by activating the controls and pressing the START/STOP Stage Sounder Button. The first stage relay is NOT operated by this action. The common fire & first stage sounder active LEDs will light. FIRST STAGE ALARM On detection of a “FIRE”... -
Page 14: Manual Mode
EXPro User Manual MANUAL MODE In this mode operation, Zone Fire and Fault alarms are still in operation, and first & second stage sounders will operate, but the bottle output to the extinguishing agent will not operate. RESET To reset panel from a first stage alarm condition, activate the controls and press START/STOP SOUNDERS, followed by SILENCE BUZZER, then RESET. -
Page 15: Log Book
EXPro User Manual LOG BOOK MAINTENANCE WORK DATE TIME ZONE/LOCATION REASON FOR WORK WORK CARRIED OUT ADDITIONAL SIGNED WORK REQUIRED Approved Document No: GLT-212-7-2 Page 15 Issue: 1.1 Author: NRPJ Date: 14/07/2014... -
Page 16: False Alarms
EXPro User Manual UNWANTED ALARMS DATE TIME ZONE/ CAUSE (IF MAINTENANCE MAINTENANCE CATEGORY FURTHER SIGNED LOCATION KNOWN) OR VISIT NEDED FINDINGS OF FALSE ACTION ACTIVITIES IN (YES/NO) ALARM REQUIRED ALARM AREA Approved Document No: GLT-212-7-2 Page 16 Issue: 1.1 Author: NRPJ Date: 14/07/2014... -
Page 17: All Other Events
EXPro User Manual ALL OTHER EVENTS DATE TIME ZONE/ DETAILS OF EVENT (INCLUDING ACTION REQUIRED DATE INITIALS LOCATION CAUSE IF KNOWN) COMPLETED Approved Document No: GLT-212-7-2 Page 17 Issue: 1.1 Author: NRPJ Date: 14/07/2014... - Page 18 EXPro User Manual Manual Modification History ***Do Not Print this Page when creating PDF Of the manual*** Issue Date Changes First release of manual 14/10/2013 Corrected manual header. Added maintenance info. Corrected event log capacity. Changed description of SND2 disablement. Changed log book page to unwanted alarms (from false alarms) Approved Document No: GLT-212-7-2 Page 18...
