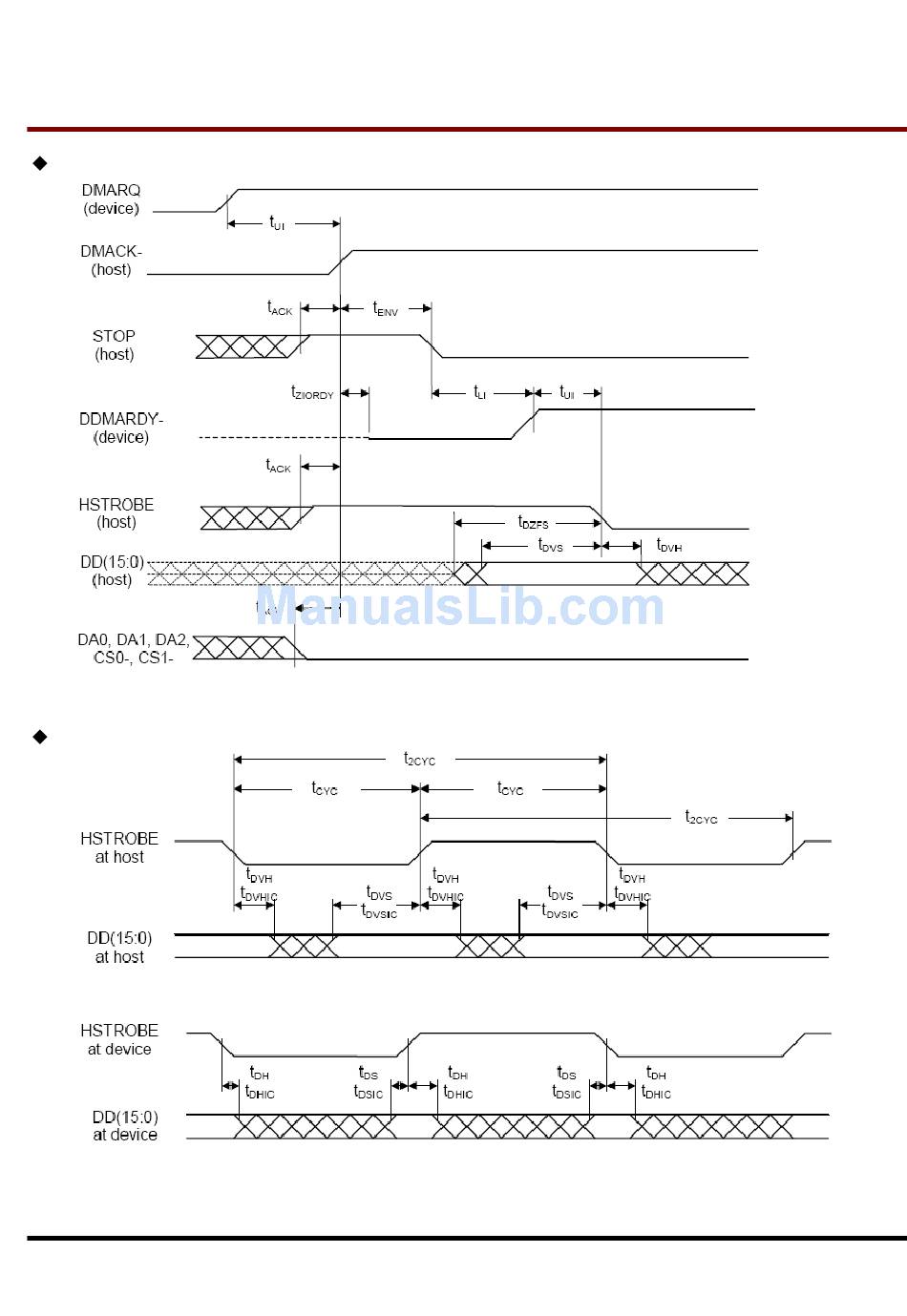

Initiating an Ultra DMA data-out burst

Note: The definitions for the STOP, DDMARDY, and HSTROBE signal lines are not in effect until DMARQ and
DMACK are asserted.

Sustained Ultra DMA data-out burst

Note: DD(15:0) and HSTROBE signals are shown at both the device and the host to emphasize that cable settling time
as well as cable propagation delay shall not allow the data signals to be considered stable at the device until some time
after they are driven by the host.
