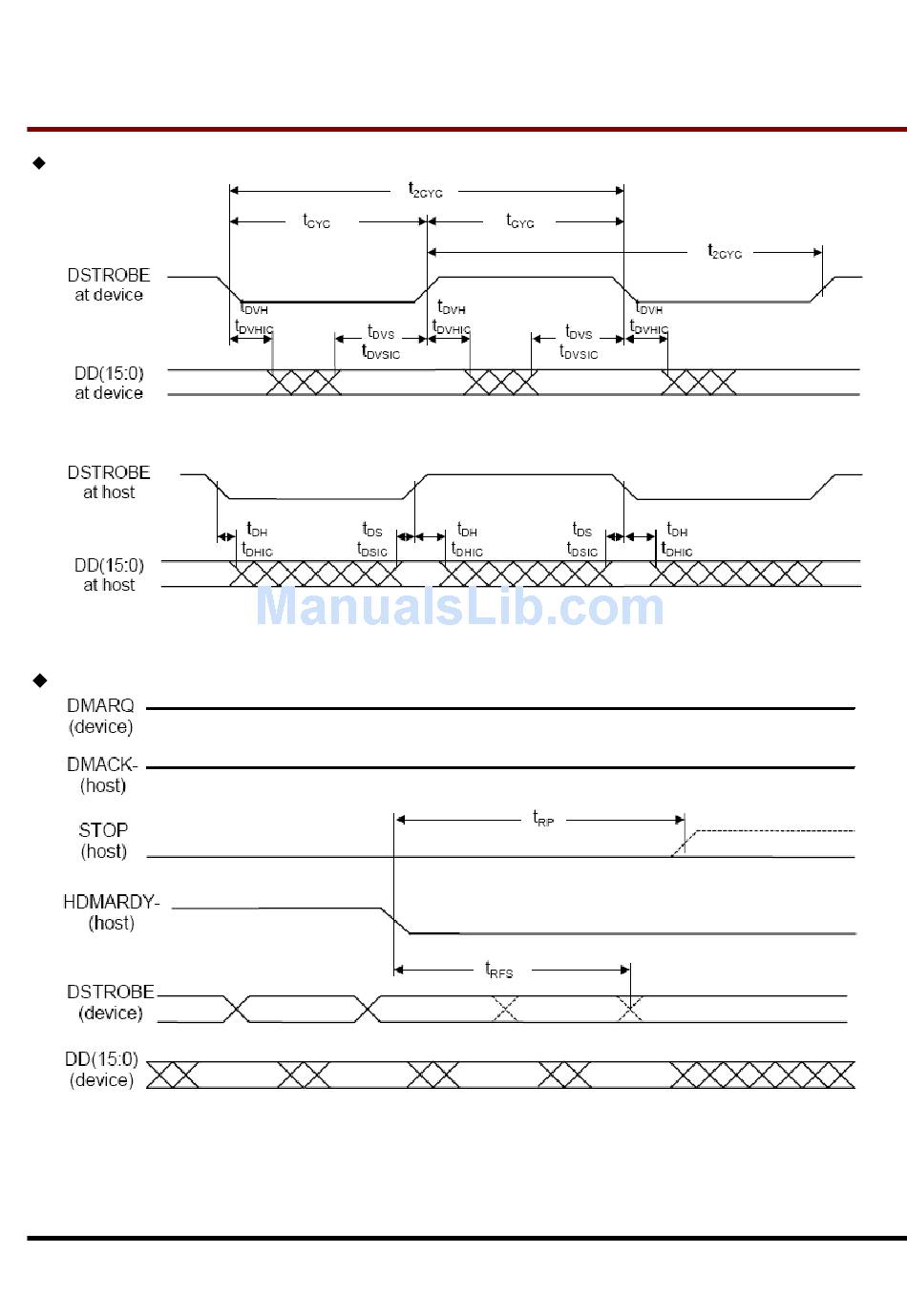

Sustained Ultra DMA data-in burst
Note:
The definitions for the HIOW-:STOP, HIOR-:HDMARDY-:HSTROBE and DSTROBE:DDMARDY-:DSTROBE
signal lines are not in effect until DMARQ and DMACK are asserted.

Host pausing an Ultra DMA data-in burst

Note:
1.The host may assert STOP to request termination of the Ultra DMA burst no sooner than t
HDMARDY- is negated.
2.After negating HDMARDY-, the host may receive zero, one, two, or three more data words from the device.
Transcend Information Inc.
0 - M
0 - M
0 - M
23
1.0" Solid State Disk
