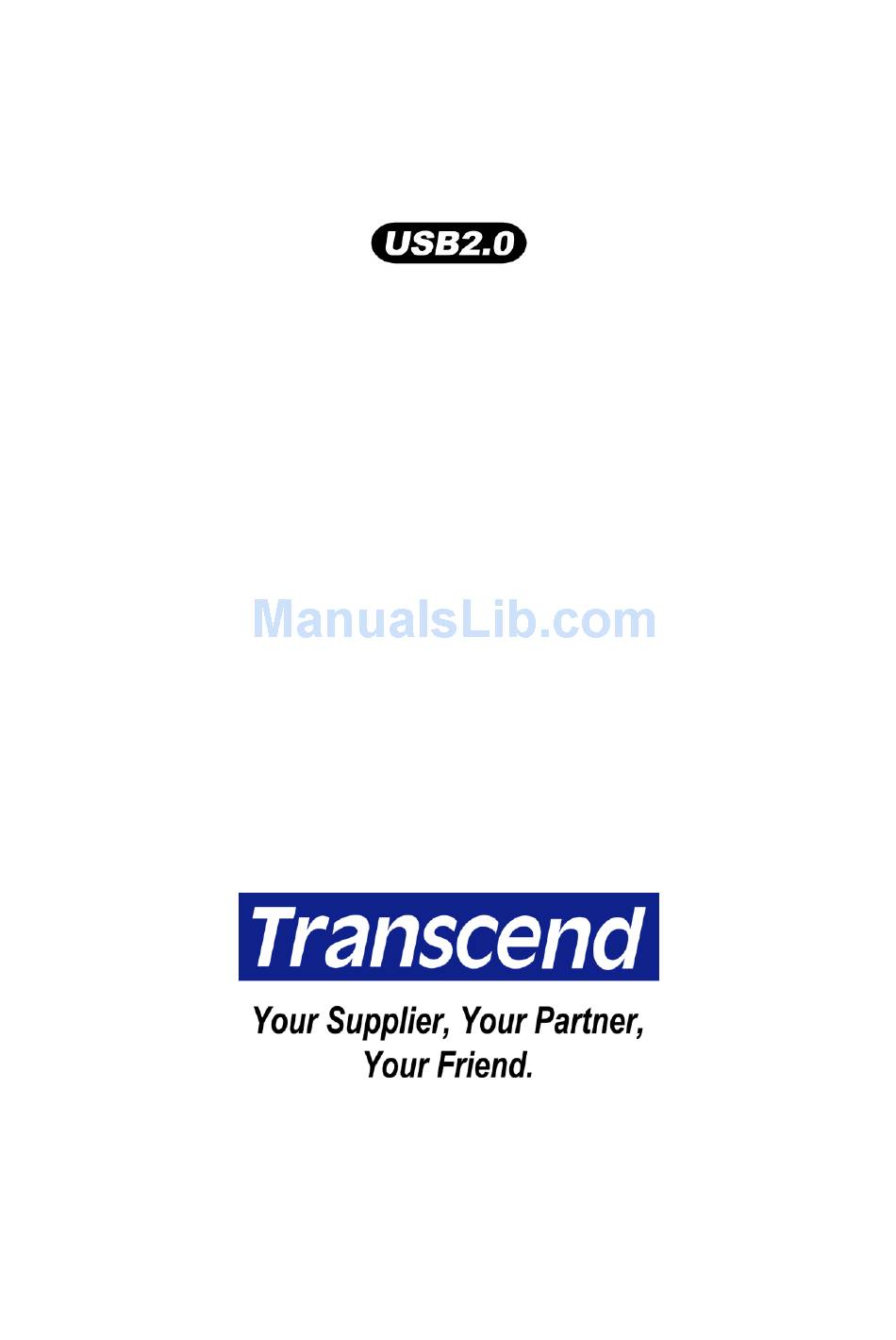

- Page 1 32MB–4GB JetFlash™ User’s Manual P/N TS32M-2GJF2B TS64M-512MJF2L TS4GJF2C...
-
Page 2: Table Of Contents
Table of Contents Introduction Package Contents......................1 Features..........................1 System Requirements .......................1 Driver Installation Driver Installation for Windows 98SE ................2 Driver Installation for Windows Me, 2000, and XP ............2 Driver Installation for Mac OS 9.0 or Later ..............2 Driver Installation for Linux Kernel 2.4 or Later ..............2 Security Function Partition Types ........................3 Security Function for Windows 98SE, Me, 2000, and XP ..........4... -
Page 3: Package Contents
Introduction Thank you very much for purchasing Transcend’s JetFlash™. This small device is designed to expedite the exchange of huge amounts of data between any desktop or laptop computers with a USB port. With a higher storage capacity and a much faster data transfer rate than other typical portable storage media, JetFlash can easily replace floppy diskettes and hard disks. -
Page 4: Driver Installation
Driver Installation Driver Installation for Windows 98SE 1. Put the Driver CD into the CD-ROM drive (Auto-Run supported). Select the Win98 Driver button. 2. Follow the on-screen instructions to complete the driver installation. 3. Plug your JetFlash into an available USB port. A new Removable Disk drive with a newly assigned drive letter will appear in the My Computer window. -
Page 5: Security Function
Security Function You must use the U-Storage Tool found on the Driver CD to enable the Security function. Before using the U-Storage Tool, carefully read the following sections. The Security function is not supported in Mac and Linux Operating Systems. To use the Security function, you must login into the Windows OS with Administrator rights. -
Page 6: Security Function For Windows 98Se, Me, 2000, And Xp
Security Function for Windows 98SE, Me, 2000, and XP The default configuration of your JetFlash is“Public Area Only”. To establish a Security Area on your JetFlash, follow the procedures below to partition JetFlash as“Security Area Only”or “Public and Security Area”. 1. -
Page 7: Access Data In Security Area
The minimum size apportioned to Security Partition Area is 2MB, and the maximum cannot exceed or equal to Total Storage Size. Key in a New Password. (Maximum size for password is 8 characters.) iii. Key in a Password Hint, to set up a reminder for your new password. Select OK. - Page 8 2. Select the Login button after the U-Storage window appears. 3. Enter the correct password and select OK. If a Password Hint was set up during the partition procedure, you can select the Hint button to display your Password Hint to help you to remember the password. You are allowed three tries to input the correct password.
-
Page 9: Log Out Of Security Area
more tries to input the correct password to unlock the restricted data in the Security Area. 4. The warning message will appear. Verify that there isn’t any data being transferred to or from your JetFlash before login/logout, and select OK to login. 5. -
Page 10: Change Password
2. Double-click the icon in the system tray and the warning message will appear. Close all of the applications and documents opened on JetFlash and select OK to logout. Once you have successfully completed Log Out of the Security Area of JetFlash, only data in the Public Area is accessible. -
Page 11: If You Forget The Password
5. Select OK. The Confirmation window appears. 6. Select OK to close this window. If You Forget the Password When you forget the password, you can use the password hint to remember it. If you cannot recall the password using the password hint, then all you can do is run the U-Storage Tool again to repartition your JetFlash. -
Page 12: Lock Your Computer
3. The Lock Host Setup window will appear. Select the Lock Expired Time and select the Start button to enable the PC-Lock function. 4. The icon will appear in the system tray to show that the PC-Lock function is enabled. Lock Your Computer After the PC-Lock function is enabled, your computer will be locked whenever you remove your JetFlash. -
Page 13: Unlock Your Computer
Unlock Your Computer To unlock your computer, you must re-plug your JetFlash. The locked status on the screen will disappear and you are now free to use your computer. To disable the PC-Lock function, right-click on the icon in the system tray and select Stop Host Lock to turn off this function. - Page 14 2. The U-Storage window will appear. Select Create Boot Disk button. 3. The Create Boot Disk window will appear, choose the boot-up type you need (USB HDD or USB ZIP, whichever has been set as the First Boot Device in BIOS) and select OK. USB-HDD boot-up type is not supported in Windows Me.
-
Page 15: Boot-Up Function For Windows Xp
5. The Confirmation window will appear. JetFlash is now ready for use as an MS-DOS Boot Disk. Select OK to close the window. When you have completed this process, your JetFlash will contain the files needed for the Boot-up function. Do not remove any of these files else the Boot-Up function will fail. If USB HDD was selected, the C:\>... - Page 16 3. Select OK. 4. Select OK to complete the format. 5. Put the Driver CD into the CD-ROM drive (Auto-Run supported). Plug your JetFlash into an available USB port of your computer, and then select the U-Storage Tool button.
- Page 17 6. The U-Storage window will appear. Select Create Boot Disk button. 7. The Create Boot Disk window will appear. Select USB ZIP and Select OK. USB-HDD boot-up type is not supported in Windows XP. 8. The Warning message will appear. Be sure you have made a backup of all the files on your JetFlash.
-
Page 18: Recovery Function
Recovery Function If your JetFlash is ever damaged, you can use the Recovery program to restore its default settings. Before using the Recovery, carefully read the following sections. The Recovery function is not supported in Mac and Linux Operating Systems. To use the Recovery function, you must login into the Windows OS with Administrator rights. -
Page 19: Safely Remove Your Jetflash
The Recovery program will perform a low-level format on your JetFlash, erasing all of the data and returning JetFlash to the default configuration. 4. When finished, the following status message will appear. Select OK and unplug your JetFlash. Plug it in again to continue to use it. Safely Remove Your JetFlash Remove JetFlash in Windows 98SE Unplug JetFlash from your system directly when data is not transferring. -
Page 20: Remove Jetflash In Mac Os
Remove JetFlash in Mac OS Drag and drop the Disk icon corresponding to your JetFlash into the trashcan. Then unplug your JetFlash from the USB port. Remove JetFlash in Linux Unmount the device from the Linux environment. Example: umount /mnt/jetflash Uninstall the Win98 Driver 1. -
Page 21: Troubleshooting
Troubleshooting If an error occurs, first check the points listed below before taking your JetFlash for repair. If you are unable to remedy a problem from the following hints, please consult your dealer or service center. Driver CD cannot auto-run in Windows Enter Device Manager in Control Panel and enable the Auto-Insert function of the CD-ROM drive. - Page 22 Cannot find the file that was just copied to JetFlash Re-copy the file and refer to the “Safely Remove Your JetFlash” section to remove JetFlash after the copy process is completed. File that was just deleted still appear Re-delete the file and refer to the “Safely Remove Your JetFlash” section to remove. JetFlash after the delete process is completed.
-
Page 23: Specifications
Up to 10 years > 100,000 times Erase Cycles: Read 10 MB/sec (Max.) Speed: Write 8 MB/sec (Max.) Certificates: CE, FCC, BSMI Ordering Information Transcend P/N Memory Size Features TS32MJF2B 32MB Blue, Mini Size TS64MJF2B 64MB Blue, Mini Size TS64MJF2L... -
Page 24: Jetflash Limited Warranty
This warranty is subject to the conditions and limitations set forth herein. Duration of Warranty: Transcend JetFlash is covered by this warranty for a period of two (2) years from the date of purchase. Transcend will inspect the product and make the determination as to whether the product is eligible for repair or replacement.
