- Page 1 ™ StoreJet User’s Manual (Version 1.1.8)
-
Page 2: Table Of Contents
Troubleshooting... 17 ™ StoreJet 2.5 IDE series ... 19 ™ StoreJet 2.5 SATA series ... 20 Transcend Limited Warranty ... 21 Table of Contents ™ OS 9.0, or Later ...8 ™ Kernel 2.4, or Later...8 ™ 2.5 in Windows 2000, XP and Vista ...11 ™... -
Page 3: Introduction
Congratulations on purchasing Transcend’s StoreJet storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information. With a huge storage capacity and Hi-Speed USB 2.0 data transfer rates, the compact StoreJet documents, photos, music and e-work between it and any desktop, or notebook computer. In addition, the ™... -
Page 4: Features
Features Hi-Speed USB 2.0 compliant and USB 1.1 backwards compatible Easy Plug and Play installation Optional 2.5” Hard Disk Drive Ultra-Portability OneTouch Auto-Backup function Powered via the USB port. No external power or battery needed Hi-Speed data transfer rates up to 480Mbits per second Additional StoreJet Software pack: StoreJet LED indicates the status of power on, data transfer activity System Requirements... -
Page 5: Safety Precautions
In a closed car that is in direct sunlight Backing Up Data Transcend does NOT take any responsibility for data loss, or damage during operation. If you decide to store data on your StoreJet the data to a computer, or other storage medium. -
Page 6: Reminders
to a computer, and always ensure that the cable you are using is in good condition. NEVER use a cable that is frayed or damaged. Ensure nothing is resting on the USB cable and that the cable is not located where it can be tripped over or stepped on. -
Page 7: Product Overview

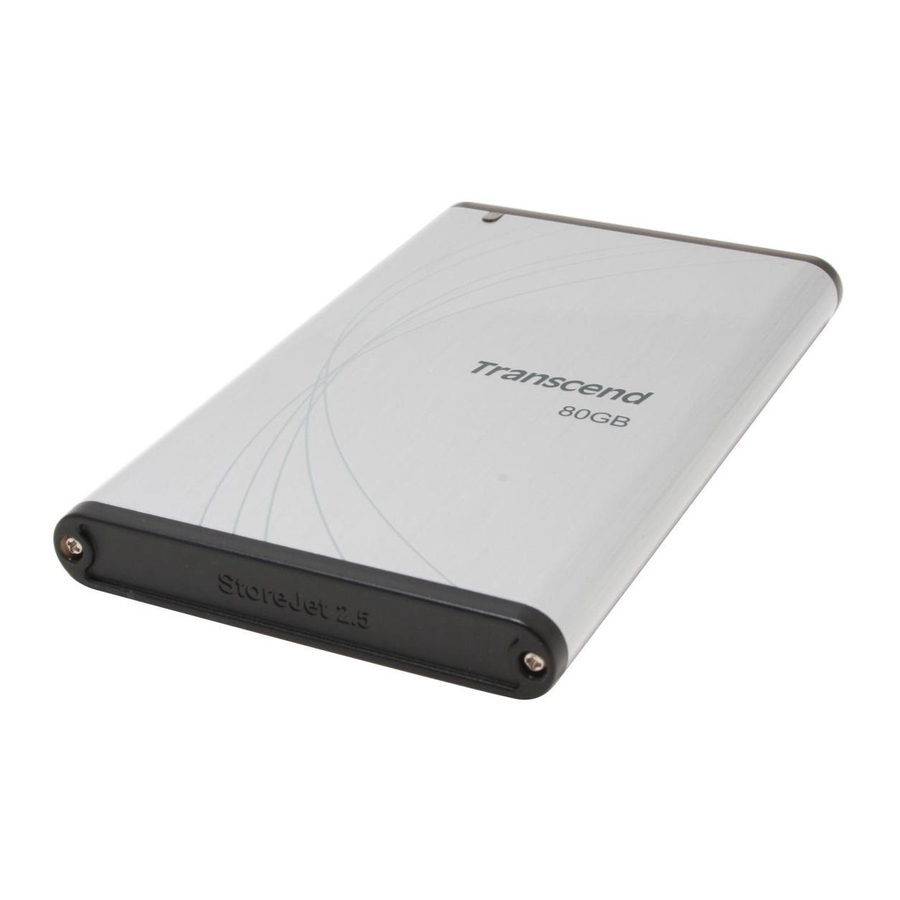

Product Overview Figure 1. StoreJet 2.5 Screws x 2 Mini USB Port OneTouch Auto-Backup Button... -
Page 8: Installing A Hard Drive
Installing a Hard Drive ™ If you purchased a StoreJet 2.5 that does not have a Hard Disk Drive already installed, please read this section, otherwise you can skip to the ™ Open the StoreJet 2.5 by removing the two screws from either side of the top cover, as indicated in the diagram. - Page 9 ™ Carefully reinsert the IDE/SATA adapter and its connected 2.5” hard drive into the StoreJet 2.5 and reattach the screws to the top cover. Figure 5. Reinsert the adapter plus drive and reattach the screws...
-
Page 10: Driver Installation
Driver Installation for Windows 2000, XP and Vista No drivers are required. These Windows ™ StoreJet 2.5. Plug your StoreJet files. A new Local Disk drive with a newly assigned drive letter representing the StoreJet appear in the My Computer window. Driver Installation for Mac No drivers are required. -
Page 11: Connecting To A Computer
Connecting to a Computer If you want to use the StoreJet your computer you will need to connect it to a USB port on the computer using the provided Figure 7. Mini USB to USB A-Type Cable (USB Y cable) Plug the small end of the USB Y cable into the Mini USB port on the StoreJet Plug the large end of the cable into an available USB port on your desktop, or notebook computer. - Page 12 You can download data to the StoreJet files, or folders onto the Local Disk drive letter that represents the StoreJet If you have setup the bundled Transcend StoreJet OneTouch “Backup Button” once to Backup your data. Please be advised, if you are using the StoreJet notebook using AC power.
-
Page 13: Disconnecting From A Computer
2. The Safely Remove Hardware pop-up window will appear. Select it to continue. 3. A window will appear stating, “The ‘USB Mass Storage Device’ device can now be safely removed from the system.” WARNING! To prevent data loss, always use this procedure to remove the StoreJet ®... -
Page 14: Formatting The Hard Drive
® Windows 2000/XP 1. Download the StoreJet Format Utility from Transcend’s online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model) 2. When the download is complete, extract the downloaded ZIP file to your computer’s hard drive (not the StoreJet 25) and run the StoreJetFormatter.exe application. -
Page 15: Windows Vista
10. Click the “Close” button to finish and exit. Windows Vista™ 1. Download the StoreJet Format Utility from Transcend’s online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model) 2. - Page 16 6. The User Account Control window will appear. Select “Allow” to continue. 7. In the StoreJet Format Utiility window, click the “Refresh” button. 8. The program will automatically detect the StoreJet 25 drive.
- Page 17 9. Press “Start”. 10. A confirmation window will appear. Press OK to begin formatting the drive.
- Page 18 11. The format process may take a few minutes. When complete, an “O.K.” message will appear in the bottom right-hand corner of the window. Figure 15: Format Complete 12. Click the “Close” button to finish and exit.
-
Page 19: Troubleshooting
StoreJet 2.5 for repair. If you are unable to solve a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our websites. Software CD cannot auto-run in Windows Go to the Device Manager in the Control Panel and enable the Auto-Insert function of the CD-ROM drive. - Page 20 Cannot Power ON Check the following: ™ 1. Check that your StoreJet 2.5 is properly connected to the USB port on the computer. 2. Check that the USB port is working properly. If not, try using an alternative USB port. ™...
-
Page 21: Storejet ™ 2.5 Ide Series
129 mm × 79.9 mm × 13 mm 88g (without hard drive) 2.5-inch IDE Hard Disk Drive 5V DC supplied from the USB port(s) 480Mbits per second 5℃ (41℉) to 55℃ (131℉) CE, FCC, BSMI 2-years Memory Size Transcend P/N TS0GSJ25S TS0GSJ25R... -
Page 22: Storejet ™ 2.5 Sata Series
129 mm × 79.9 mm × 13 mm 186g (with hard drive) 2.5-inch SATA Hard Disk Drive 5V DC supplied from the USB port(s) 480Mbits per second 5℃ (41℉) to 55℃ (131℉) CE, FCC, BSMI 2-years Memory Size Transcend P/N TS0GSJ25S-S TS0GSJ25B-S TS0GSJ25R-S 160GB TS160GSJ25B-S 250GB TS250GSJ25S-S... -
Page 23: Transcend Limited Warranty
Transcend is not responsible for recovering any data lost due to the failure of a ™...
