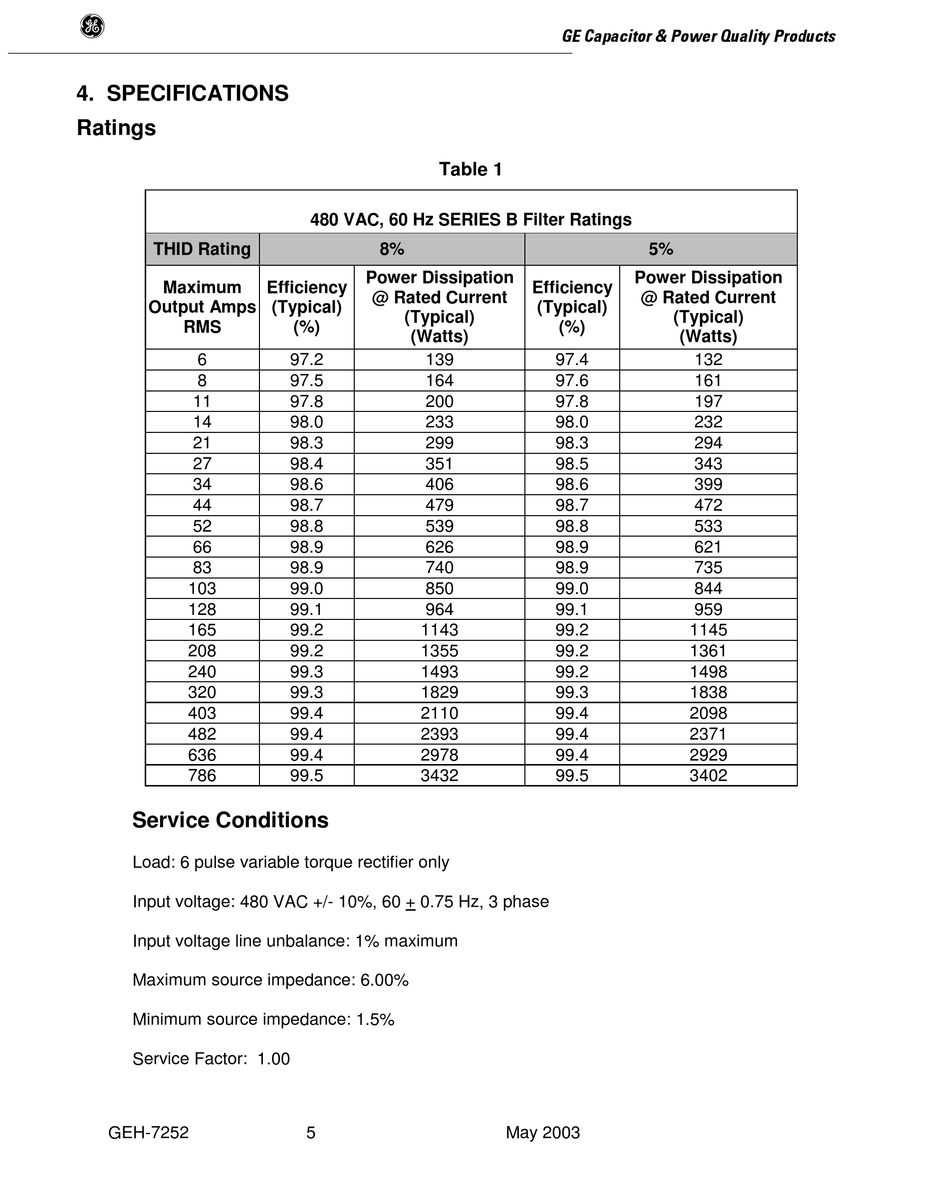

4. SPECIFICATIONS

Ratings

THID Rating
Maximum
Output Amps
RMS
6
8
11
14
21
27
34
44
52
66
83
103
128
165
208
240
320
403
482
636
786

Service Conditions

Load: 6 pulse variable torque rectifier only
Input voltage: 480 VAC +/- 10%, 60 + 0.75 Hz, 3 phase
Input voltage line unbalance: 1% maximum
Maximum source impedance: 6.00%
Minimum source impedance: 1.5%
Service Factor: 1.00
GEH-7252
480 VAC, 60 Hz SERIES B Filter Ratings
8%
Power Dissipation
Efficiency
@ Rated Current
(Typical)
(Typical)
(%)
(Watts)
97.2
139
97.5
164
97.8
200
98.0
233
98.3
299
98.4
351
98.6
406
98.7
479
98.8
539
98.9
626
98.9
740
99.0
850
99.1
964
99.2
1143
99.2
1355
99.3
1493
99.3
1829
99.4
2110
99.4
2393
99.4
2978
99.5
3432
5
GE Capacitor & Power Quality Products
Table 1
Efficiency
(Typical)
(%)
97.4
97.6
97.8
98.0
98.3
98.5
98.6
98.7
98.8
98.9
98.9
99.0
99.1
99.2
99.2
99.2
99.3
99.4
99.4
99.4
99.5
May 2003
5%
Power Dissipation
@ Rated Current
(Typical)
(Watts)
132
161
197
232
294
343
399
472
533
621
735
844
959
1145
1361
1498
1838
2098
2371
2929
3402
