Outline Drawings And Mounting Dimensions - GE SERIES B 480 User Manual

480 volts, 60hz

GE Capacitor & Power Quality Products

INSTALLATION INSTRUCTIONS - continued

Mounting Dimensions And Outline Drawings For Panel Mounted Filters Follow

Figure 7

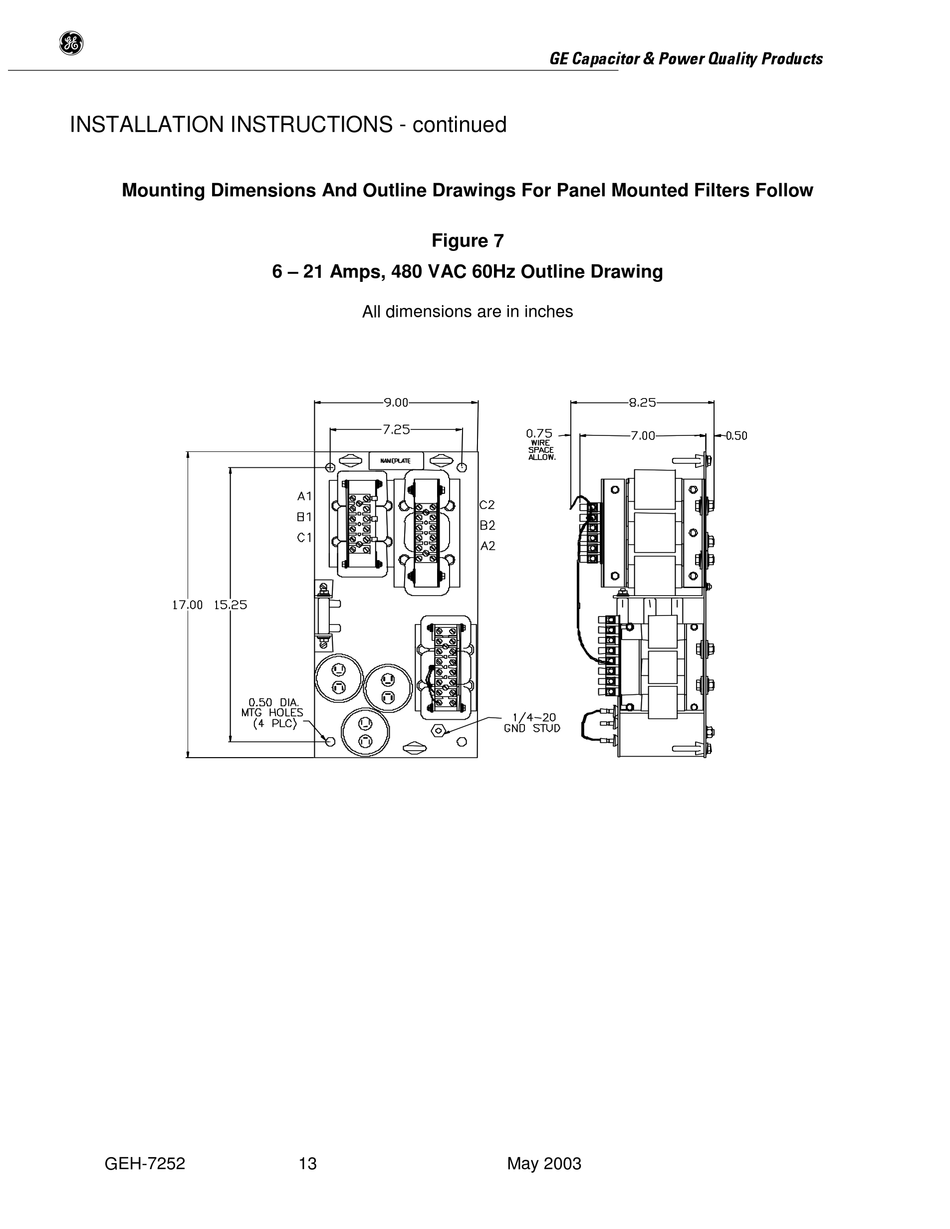

6 – 21 Amps, 480 VAC 60Hz Outline Drawing

All dimensions are in inches

GEH-7252

May 2003
