Operation and Maintenance Manual
Bently Nevada™ Asset Condition Monitoring
3500/15 AC and DC Power Supplies
Part Number 129767-01
Rev. J (03/08)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bently Nevada 3500/15 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GE Bently Nevada 3500/15 Series

Summary of Contents for GE Bently Nevada 3500/15 Series

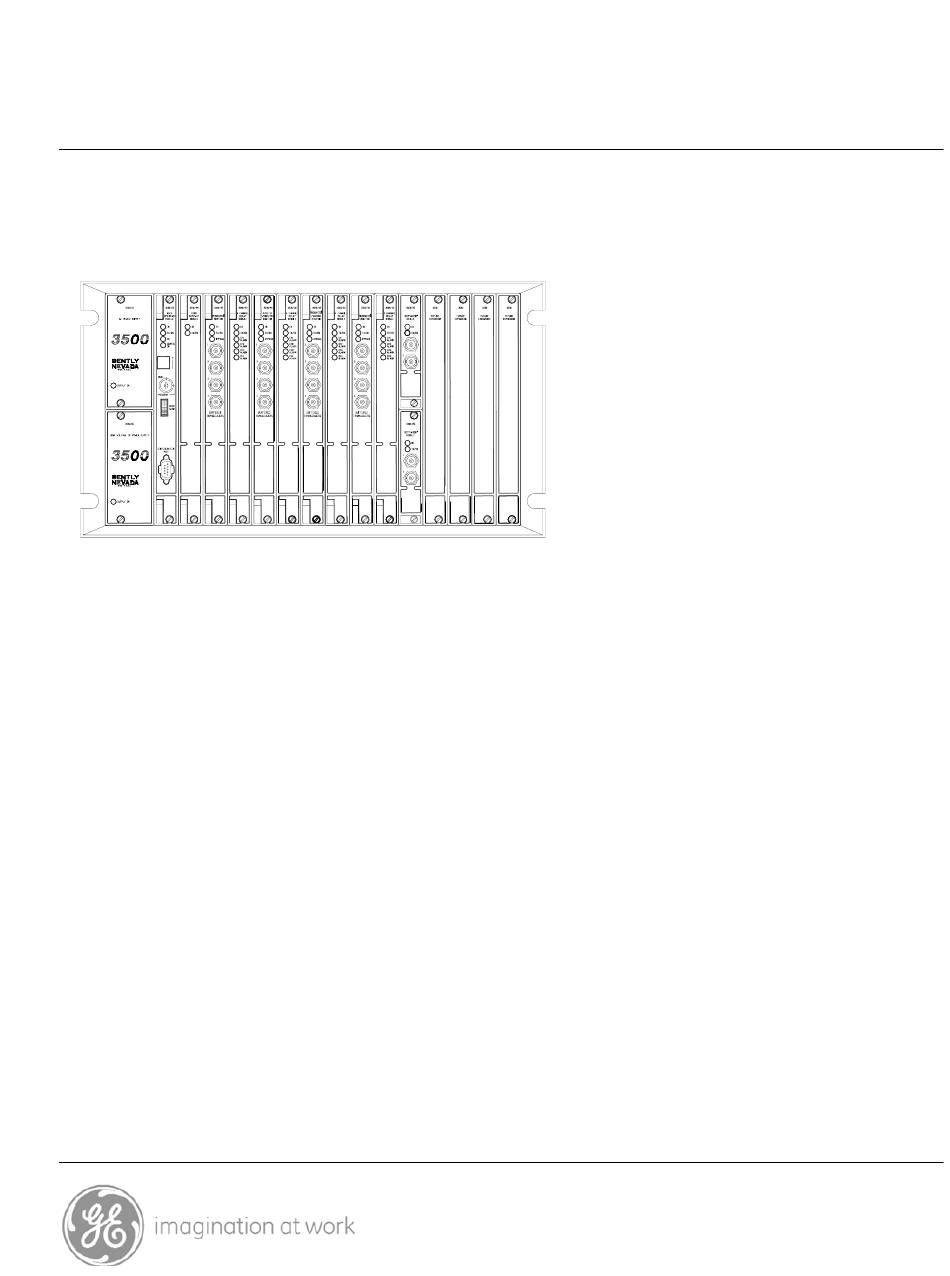

  • Page 1 Operation and Maintenance Manual Bently Nevada™ Asset Condition Monitoring 3500/15 AC and DC Power Supplies Part Number 129767-01 Rev. J (03/08)
  • Page 2 3M and Velostat are trademarks of 3M Company. Contact Information The following contact information is provided for those times when you cannot contact your local representative: Mailing Address 1631 Bently Parkway South Minden, Nevada USA 89423 Telephone 1.775.782.3611 1.800.227.5514 1.775.215.2873 Internet www.ge-energy.com/bently...
  • Page 3 Additional Information Notice: This manual does not contain all the information required to operate and maintain the product. Refer to the following manuals for other required information. 3500 Monitoring System Rack Installation and Maintenance Manual (Part Number 129766-01) • General description of a standard system •...
  • Page 4 3500/15 AC and DC Power Supplies Operation and Maintenance Manual Product Disposal Statement Customers and third parties, who are not member states of the European Union, who are in control of the product at the end of its life or at the end of its use, are solely responsible for the proper disposal of the product.

  • Page 5: Table Of Contents

    Contents 1. Receiving and handling Instructions ............1 Receiving Inspection........................1 Handling and Storage Considerations ..................1 2. General Information..................3 Power Supply Versions........................3 Single Power Supply......................... 4 Redundant Power Supplies......................4 CE Compliance Information......................4 Low Voltage Directive Compliance ................... 4 3.
  • Page 6 3500/15 AC and DC Power Supplies Operation and Maintenance Manual 8.4.2 Low Voltage Directives ......................24 Approvals ............................24 Physical..............................25 8.6.1 Power Supply Module.......................25 8.6.2 Power Input Modules........................25 Rack Space Requirements ......................25 MISCELLANEOUS..........................25...

  • Page 7: Receiving And Handling Instructions

    Section 1 - Receiving and handling Instructions 1. Receiving and handling Instructions 1.1 Receiving Inspection Visually inspect the module for obvious shipping damage. If you detect shipping damage, file a claim with the carrier and submit a copy to Bently Nevada LLC. 1.2 Handling and Storage Considerations Circuit boards contain devices that are susceptible to damage when exposed to electrostatic charges.

  • Page 9: General Information

    Section 2 - General Information 2. General Information The 3500 Power Supplies are half-height modules that you must install in the specially designed slots at the left side of the rack. The 3500 rack can contain 1 or 2 ac or dc power supplies in any combination. Either supply can power a full rack.

  • Page 10: Single Power Supply

    3500/15 AC and DC Power Supplies Operation and Maintenance Manual The High Voltage DC Power Supply supports dc inputs from 88 to 140 Vdc. The Low Voltage DC Power Supply supports dc inputs from 20 to 30 Vdc. 2.2 Single Power Supply The 3500 will operate under fully loaded conditions with a single power supply.
  • Page 11 Section 2 - General Information Connector shield standard rack Connector shield bulkhead rack Figure 2-2: EN61010-01 Connector Shield Orientation...

  • Page 13: Configuration Information

    Section 3 - Configuration Information 3. Configuration Information Configuration is the process of identifying the type of Power Supply and setting operating parameters. To configure a Power Supply, use this section to gather configuration information and then use the Rack Configuration Software to set the options and download the settings to the rack.
  • Page 14 3500/15 AC and DC Power Supplies Operation and Maintenance Manual...

  • Page 15: Power Input Module Information

    Section 4 - Power Input Module Information 4. Power Input Module Information The Power Input Module (PIM) is a half-height module that connects the power source to the power supply. Install the Power Input Module behind the power supply (in a rack mount or a panel mount rack) or above the power supply (in a bulkhead rack).

  • Page 16: Ac Power Input Module (High Voltage Version)

    3500/15 AC and DC Power Supplies Operation and Maintenance Manual Refer to the 3500 Field Wiring Diagram Package for specifics on connecting power to this Power Input Module. 4.2 AC Power Input Module (High Voltage Version) Use the high voltage AC Power Input Module, shown in Figure 4-2, when you will use high voltage ac (175 to 264 Vac rms) to power the rack.

  • Page 17: Dc Power Input Module (Low Voltage Version)

    Section 4 - Power Input Module Information DANGER Failure to properly ground the rack chassis may result in high voltages on exposed surfaces of the 3500 rack. High voltages can result in shock, burns, or death. Always connect the metal rack chassis grounding strap as shown in Figure 4-3 to avoid shock hazard.

  • Page 18: Connecting Single-Point Ground

    3500/15 AC and DC Power Supplies Operation and Maintenance Manual Chassis grounding strap (see Safety Notice) Figure 4-4: Low Voltage DC Power Input Module 4.5 Connecting Single-Point Ground To avoid ground loops, the system must provide a single point ground. The Power Input Modules provide a switch that lets you control where your system is grounded.
  • Page 19 Section 4 - Power Input Module Information When the switch is moved to this side (towards the rack) the switch is in the CLOSED position. When the switch is moved to this side (away from the rack) the switch is in the OPENED position. Grounding switch.

  • Page 21: Maintenance

    Section 5 - Maintenance 5. Maintenance This section shows how to verify that the power supplies and Power Input Modules are operating correctly. When performed properly, you may remove this module from the rack while power is applied to the rack. Refer to the Rack Installation and Maintenance Manual (part number 129766-01) for the proper procedure.

  • Page 23: Troubleshooting

    Section 6 - Troubleshooting 6. Troubleshooting This section describes how to troubleshoot a problem with the power supply or the Power Input Module. DANGER High voltages are present on power input lines. High voltages can result in shock, burns, or death. Remove power and avoid contact with power input terminals while servicing the power supply and Power Input Module.
  • Page 24 3500/15 AC and DC Power Supplies Operation and Maintenance Manual DANGER High voltages may persist on the ac and dc power supplies for several minutes after you remove the module from the rack. High voltages may cause shock, burns, or death. Always wait several minutes after removing power supplies before attempting to handle them.

  • Page 25: Ordering Information

    Section 7 - Ordering Information 7. Ordering Information 7.1 3500/15 Power Supply 3500/15-AXX-BXX-CXX Power Supply Type (Top Slot) Low Voltage AC (85 to 132 Vac) High Voltage AC (175 to 264 Vac) High Voltage DC (88 to 140 Vdc) Low Voltage DC (20 to 30 Vdc) Power Supply Type (Bottom Slot) No supply (used when only one supply is required) Low Voltage AC (85 to 132 Vac)
  • Page 26 3500/15 AC and DC Power Supplies Operation and Maintenance Manual 01720025 Replacement Fuse (High Voltage DC PIM). 133292-01 Low Voltage DC Power Supply Module. 133300-01 Low Voltage DC Power Input Module (PIM). 01720045 Replacement Fuse (Low Voltage DC PIM). 129767-01 Power Supply Module Manual.

  • Page 27: Specifications

    Section 8 - Specifications 8. Specifications 8.1 Inputs 8.1.1 All Power Supply Versions Out of Range Protection For all power supply versions, an undervoltage will not harm either the supply or the PIM. However, an overvoltage will cause the fuse to open on the PIM. Maximum Input Power Maximum output power / Minimum efficiency Maximum Volt-Amps...

  • Page 28: High Voltage Ac

    3500/15 AC and DC Power Supplies Operation and Maintenance Manual Volt-Amps 388 VA, Max 8.1.3 High Voltage AC Input 175 to 264 Vac rms (247 to 373 Vac pk) Note that installations using AC Power Input Modules (PIMs) prior to Rev. R and/or AC Power Supply Module prior to Rev, M require a voltage input of 175 to 250 Vac rms Frequency...

  • Page 29: High Voltage Dc

    Section 8 - Specifications 8.1.5 High Voltage DC Input 88-140 Vdc Input Current 2.5 A maximum Input Power 194 W maximum Efficiency 0.8 minimum, typical 8.2 Outputs Supply OK LED Indicates when the power supply is operating properly. 8.3 Environmental Limits Temperature Operating -30 °C to 65 °C (-22 °F to 149 °F)
  • Page 30 3500/15 AC and DC Power Supplies Operation and Maintenance Manual 8.4.1.2 EN50082-2 Electrostatic Discharge EN 61000-4-2, Criteria B Radiated Susceptibility ENV 50140, Criteria A Conducted Susceptibility ENV 50141, Criteria A Electrical Fast Transient EN 61000-4-4, Criteria B Surge Capability EN 61000-4-5, Criteria B Magnetic Field EN 61000-4-8, Criteria A Power Supply Dip...
  • Page 31 Section 8 - Specifications 8.6 Physical 8.6.1 Power Supply Module Dimensions (Height x Width x Depth) 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) Weight 1.39 kg (3.06 lbm) 8.6.2 Power Input Modules Dimensions (Height x Width x Depth) 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x...
