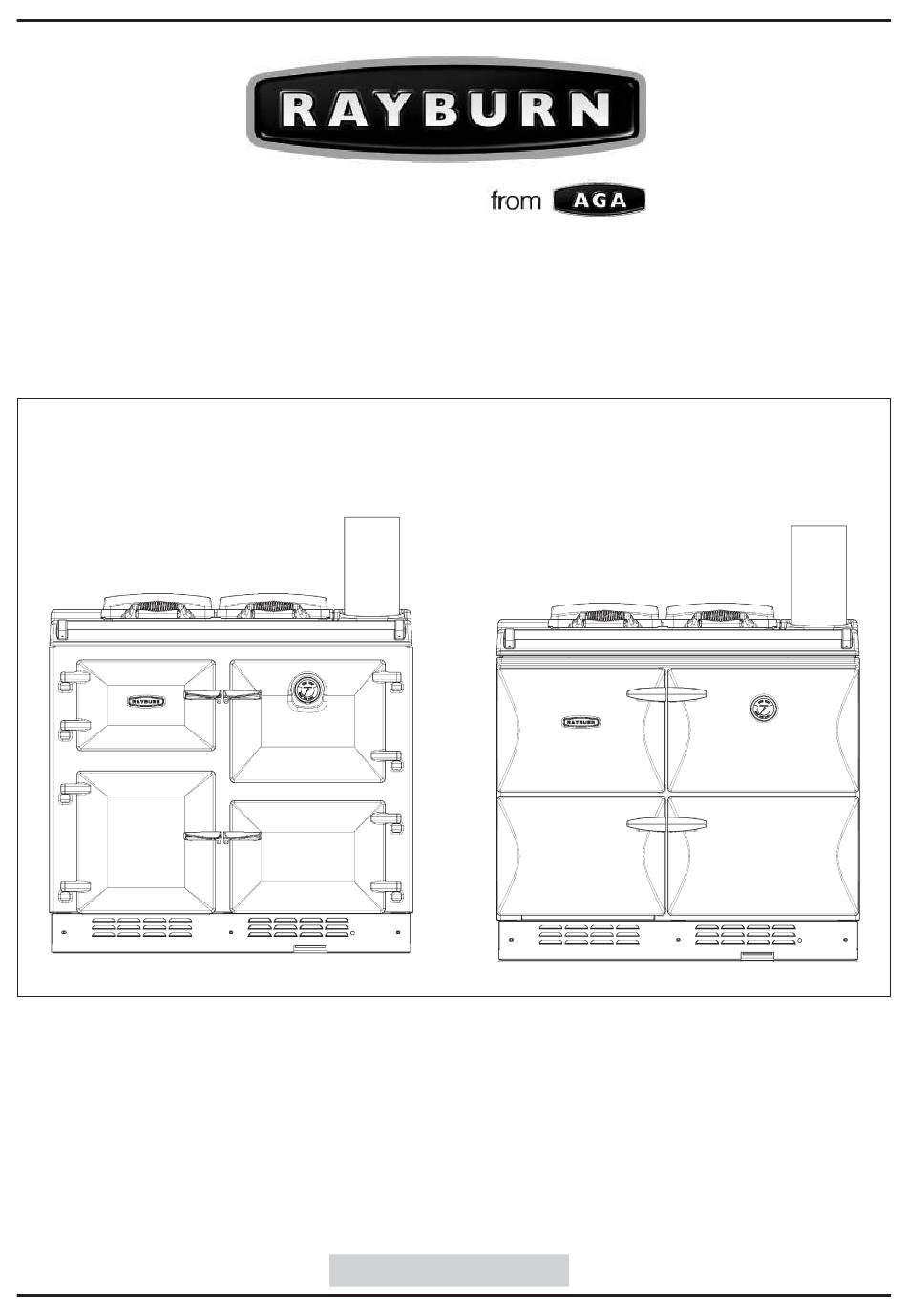

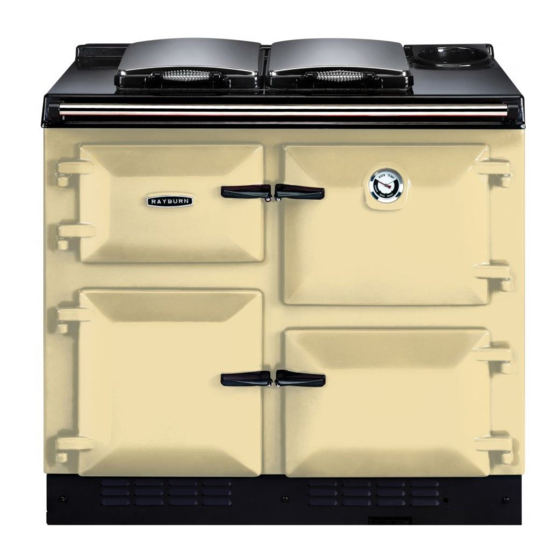

  • Page 1 600K/700K DESN 515618 DESN 516825 Users Instructions PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE For use in GB & IE 05/14 EOPI 515878...

  • Page 2: Table Of Contents

    Contents SECTION CONTENTS PAGE INTRODUCTION USER INFORMATION CONTROLS THE COOKER MAIN OVEN AND HOTPLATE CONTROL THE HOTPLATE THE MAIN OVEN THE LOWER OVEN THE RAYBURN COOKBOOK COOKING CHART (MAIN OVEN) COOKING HINTS MAIN OVEN THERMODIAL LOWER OVEN SOLID SHELF HOTPLATE ACCESSORIES LOCATION OF OVEN GRID SHELVES DOORS...
  • Page 3 IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING WARRANTY Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and could affect your statutory rights.
  • Page 4 USER INFORMATION Fig. 1B - Rayburn 700K Fig. 1A - Rayburn 600K Fig. 1C...
  • Page 5 CONTROLS THERMODIAL GUIDE APPROX SIMMER 120ºC - 150ºC MARK BAKE 160ºC - 200ºC TEMP ROAST 220ºC - 250ºC 120ºC 140ºC 150ºC 160ºC 180ºC 190ºC 200ºC 220ºC 230ºC 240ºC HIGH 250ºC THE THERMODIAL ON THE MAIN OVEN DOOR IS A GUIDE TO THE CENTRE OVEN TEMPERATURE WHEN COOKING.

  • Page 6: The Cooker

    THE MAIN OVEN THE COOKER The oven thermostat control knob is marked l (OFF), then temperature graduated. (See diagram, Page 5). MAIN OVEN AND HOTPLATE CONTROL The main oven and hotplate temperatures are controlled by THE LOWER OVEN the cooker thermostat control knob which is situated behind The temperature of the lower oven is dependent on the the controls door.

  • Page 7: Cooking Hints

    LOWER OVEN COOKING HINTS A valuable oven for slower more gentle cooking when the main oven is turned up high, as it is roughly half the The ovens are indirectly heated from the outside by hot temperature of the main oven. Ideal for meringues, gases from the heat source so that no flame or elements casseroles, milk puddings, egg custards etc.

  • Page 8: Doors

    LOCATION OF OVEN GRID SHELVES DOORS To ensure the correct operation of the oven grid shelves, To open the doors. Twist the handle slightly to disengage ensure that they are inserted as shown. (See section the door catch from the locking spindle and pull door open ‘USER INFORMATION’) - page 4.

  • Page 9: The Burner

    SETTING THE TIME OF DAY THE BURNER If a fault occurs on the burner then a fault code is displayed and shuts down the cooker. This can be re-set after 1 minute by pressing the REPEAT button. In the event of repeated failure switch off the oil and electrical supply to the appliance and contact the installer/service engineer.

  • Page 10: Setting The Programmer

    SETTING THE PROGRAMMER - WEEKLY (1) SECOND EVENT Fig. 7 DESN 515898 Fig. 9 DESN 515900 1. Ensure that the AUTO mode is being used when 1. The display should alternate between ON2 and the setting the programmer. time of day currently set. 2.

  • Page 11: Repeating Days

    REPEATING DAYS SETTING THE MINUTE MINDER Fig. 13 DESN 515904 Fig. 11 DESN 515902 1. Press the TIMER button once. 1. To repeat the first event of the previous day, press the 2. 00:00 should be displayed. REPEAT button once. 3.

  • Page 12: Enamelled Top And Front Plate

    Oven Door Linings Using oven gloves carefully lift off the oven doors (Rayburn 600K only), lay them on a tea towel to protect the enamel. They can then be cleaned with a cream cleanser or soap impregnated pad. Do not however, immerse the doors in water as they are packed with insulating material which will be damaged by excessive moisture.

  • Page 13: Burner Reset

    BURNER RESET POWER FAILURE In the event of power failure your appliance will become Reset button is located behind burner door. The cooker inoperative. When the power is restored it will burner control box, under normal conditions will flash automatically restart, if programmed or manually set to do every 15 seconds.
