Magnum DS80F & DS80C Dual-speed Stackable Hubs

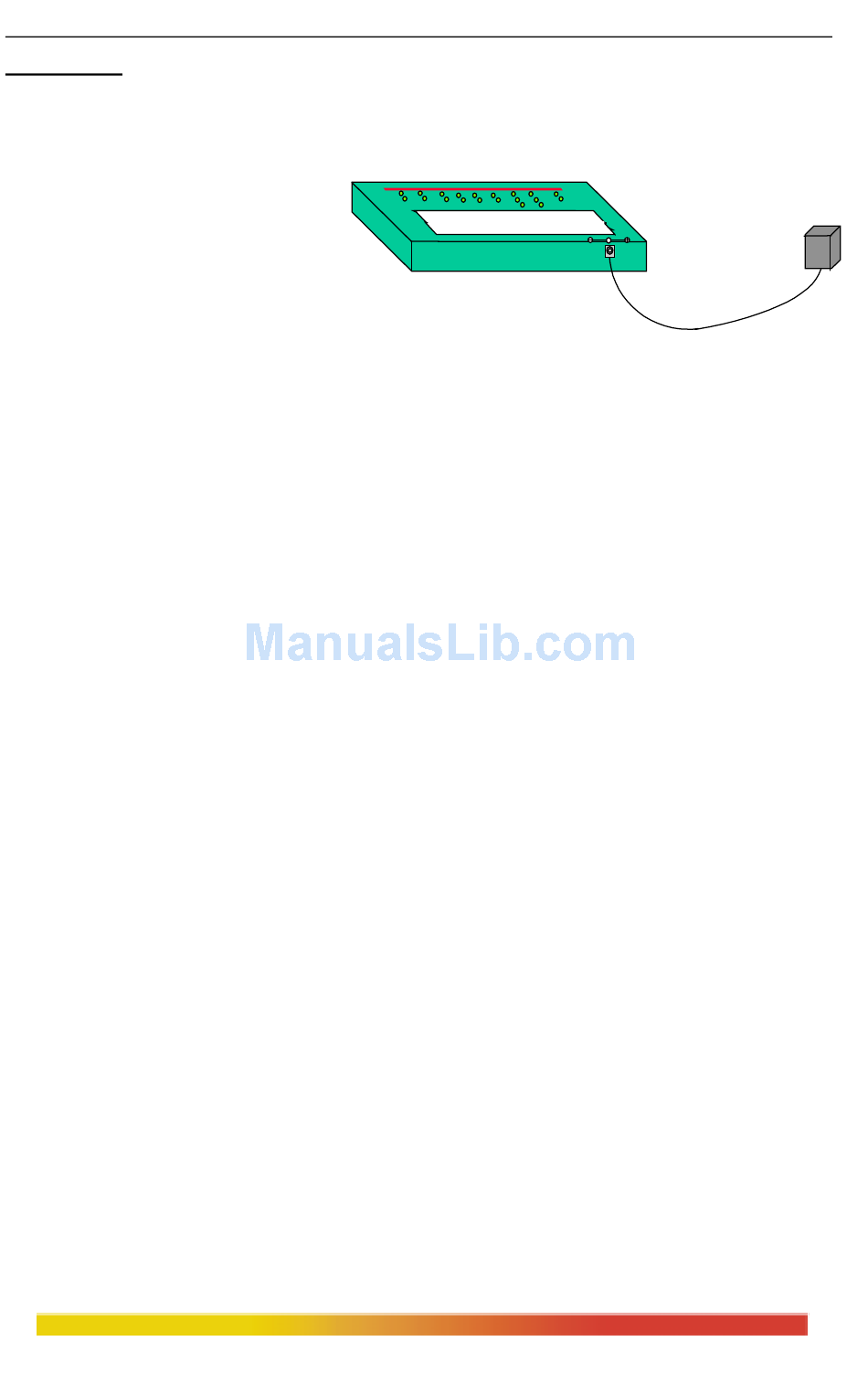

5V, 2.0 amps is supplied with each unit. The small DC power cord from the power supply plugs
into the matching rear power jack of the DS80F and DS80C Personal Hubs. When the power is
applied, the green PWR LED will illuminate.
Each Magnum DS80F and
DS80C power supply supports
standard AC installation
environments and comes in two
types; one version for AC input
power of 115vac at 60Hz for "-d " models, and other version of 230vac at 50 Hz for "-i " models
that have IEC power cable connector in the external power unit.
Examine the power supply to make sure the version you have is the right type for your
AC power system. The 115vac version has a small transformer integral with a convenience
power outlet plug, and a lightweight DC power cord to the applicable power jack on the hub.
The 230vac version has a small transformer integral with an IEC-type power plug for a user-
supplied AC power cord with a convenience power outlet plug.
www GarrettCom com . .
Installation and User Guide (12/01)
PORTS 1SW 2SW 3 4 5 6 7 8
F/H
Link/Act
Speed
Personal Hub
Magnum DS80F Dual Speed
16
GARRETT
Power
Error
12V, 1.5Amps
DC 12V
External
Power Supply
