American Dryer Corp. AD-75 Parts Manual

Phase 3 / phase 4 / non-coin 1988 thru 1991
Hide thumbs Also See for AD-75:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual, Installation & Operator's Manual

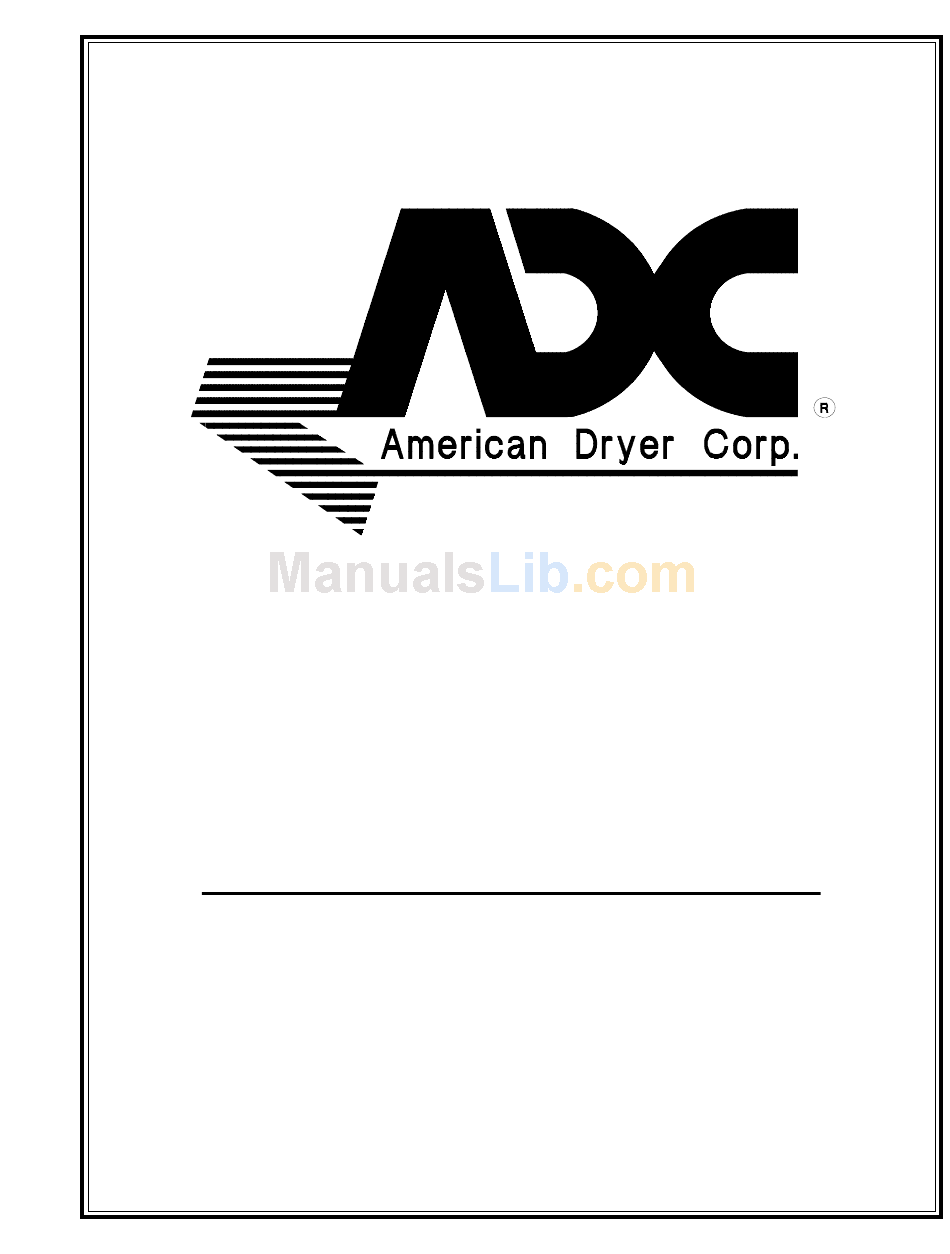

AD-75 Parts Manual
Phase 3 / Phase 4 / Non-Coin
1988 thru 1991
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
www.amdry.com
ADC Part No. 450087 - 20

Advertisement

Table of Contents
loading

Related Manuals for American Dryer Corp. AD-75

Summary of Contents for American Dryer Corp. AD-75

  • Page 1 AD-75 Parts Manual Phase 3 / Phase 4 / Non-Coin 1988 thru 1991 American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com www.amdry.com ADC Part No. 450087 - 20...
  • Page 2 POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil. Important AD-75 MODEL NO. ______________...

  • Page 3: Table Of Contents

    High Security Control Door Assembly ... 4 Phase 4 Non-Coin Microprocessor Control Panel Assembly ... 5 Phase 4 Non-Coin Microprocessor Control Box Assembly ... 6 Phase 3 Non-Coin Microprocessor Control Panel Assembly ... 7 Phase 3 Non-Coin Microprocessor Control Box Assembly ... 8 Dual Timer Control Panel Assembly ...

  • Page 4: High Security Control Door Assembly

    High Security Control Door Assembly Illus. No. Part No. Qty. Description 160017 Special Dummy Lock ONLY (without cam) 160104 MK-100 Key ONLY (for dummy lock) 160016 Lock Cam ONLY 882052 Metal ADC Logo with Tape 870011 Logo Double Sided Tape Kit 800020* High Security Control Door Assembly (includes illus.

  • Page 5: Phase 4 Non-Coin Microprocessor Control Panel Assembly

    Phase 4 Non-Coin Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112535 Non-Coin English Keypad Label Assembly 112276 Non-Coin Stick-On Labels (English Only) … Not Illustrated 112275 Non-Coin Stick-On Labels (Spanish, Italian, and Hebrew) … Not Illustrated 112277 3-Language Non-Coin Stick-On Labels (English, Spanish, and Hebrew) …...

  • Page 6: Phase 4 Non-Coin Microprocessor Control Box Assembly

    Phase 4 Non-Coin Microprocessor Control Box Assembly Illus. No. Part No. Qty. Description 137021 Microprocessor Socket ONLY 137020 15-Pin Microprocessor Connector ONLY 122800 Microprocessor (female) Pin Extraction Tool 150315 #6 x 1” Phillips Pan Head Machine Screw 137022 15-Pin Stain Relief 137013 Nylon Standoff 137151...

  • Page 7: Phase 3 Non-Coin Microprocessor Control Panel Assembly

    Phase 3 Non-Coin Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112535 Non-Coin English Keypad Label Assembly 112276 Non-Coin Stick-On Labels (English Only) … Not Illustrated 112275 Non-Coin Stick-On Labels (Spanish, Italian, and Hebrew) … Not Illustrated 112277 3-Language Non-Coin Stick-On Labels (English, Spanish, and Hebrew) …...

  • Page 8: Phase 3 Non-Coin Microprocessor Control Box Assembly

    Phase 3 Non-Coin Microprocessor Control Box Assembly Illus. No. Part No. Qty. Description 137021 Microprocessor Socket ONLY 137020 15-Pin Microprocessor Connector ONLY 122800 Microprocessor (female) Pin Extraction Tool 150315 #6 x 1” Phillips Pan Head Machine Screw 137022 15-Pin Stain Relief 137013 Nylon Standoff 137151...

  • Page 9: Dual Timer Control Panel Assembly

    Illus. No. Part No. Qty. Description 123000 Red Indicator Light – 120 Volt 123001 Red Indicator Light – 230 Volt 122400 Rocker Heat Selector Switch 865550 Dual Timer Control Panel Assembly Complete – 120 Volt (includes illus. nos. 1 through 21) 865551 Dual Timer Control Panel Assembly Complete –...

  • Page 10: Dual Timer Control Box Assembly

    Dual Timer Control Box Assembly American Dryer Corporation 450087 - 20...
  • Page 11 Illus. No. Part No. Qty. Description 122603 9-Pin Socket Connector 122701 Socket Terminal ONLY 122801 Pin / Socket Extraction Tool 315010 9-Pin Connector Bracket 150300 #10 x 1/2” Hex Washer TEK Screw 150300 #10 x 1/2” Hex Washer TEK Screw 141403 Direct Spark Ignition 24 VAC Transformer (for gas models with direct spark ignition and steam models...

  • Page 12: Front Panel Assembly - Latch Type

    Front Panel Assembly Latch Type Illus. No. Part No. Qty. Description 875302* Right Hand Insulated Front Panel Assembly (latch type) Complete (includes illus. nos. 1, 2, 3, and 6) 875313 Right Hand Stainless Steel Insulated Front Panel Assembly (latch type) Complete (includes illus.

  • Page 13: Front Panel Assembly - Magnet Type

    Illus. No. Part No. Qty. Description 800367* Right Hand Front Panel Assembly (magnet type) Complete with Hinge (includes illus. nos. 1, 2, 3, and 6) 800373* Right Hand Insulated Front Panel Assembly (magnet type) Complete with Hinge (includes illus. nos. 1, 2, 3, and 6) 800387 Right Hand Stainless Steel Insulated Front Panel Assembly (magnet type) Complete with Hinge...

  • Page 14: Main Door Assembly - Latch Type

    Main Door Assembly Latch Type Illus. No. Part No. Qty. Description 881421 Gray Plastic Main Door Assembly (latch type) Complete with Mechanical Fasteners (includes illus. nos. 1 and 5 through 9) 800448 12-1/2” Stainless Steel Main Door Hinge Assembly 150410 #10-24 x 3/8”...

  • Page 15: Main Door Assembly - Magnet Type

    Illus. No. Part No. Qty. Description 800136** Gray Plastic Main Door Assembly Complete with Mechanical Fasteners (includes illus. nos. 1 through 13) 103050 12-1/2” Stainless Steel Main Door Hinge Assembly 150410 #10-24 x 3/8” Phillips Pan Head Taptite Screw 152014 1/4-20 Free Spin Wash Nut 102349 Main Door Gasket...

  • Page 16: Main Door Switch Assembly - N.s. Series

    Main Door Switch Assembly N.S. Series Illus. No. Part No. Qty. Description 313215 Door Actuator Arm 800445* N.S. Series Microprocessor Main Door Switch Housing Assembly Complete (for models mfd. as of November 21, 1990) (includes illus. nos. 1 through 7) 800446** N.S.

  • Page 17: Main Door Switch Assembly - Plunger Type

    Illus. No. Part No. Qty. Description 137003 Plunger Type Main Door Switch (includes illus. nos. 1, 2, and 4) 401551 Door Switch Spacer / Washer 870010 Plunger Type Main Door Switch Assembly Complete (for microprocessor [computer] models mfd. prior to November 21, 1990 and non-microprocessor models mfd.

  • Page 18: Lint Trap Assembly For Steam Models With 10" Exhaust Mfd. As Of October 25, 1991

    Lint Trap Assembly For Steam Models with 10” Exhaust Mfd. as of October 25, 1991 Illus. No. Part No. Qty. Description 800440 Non-Reversing Lint Trap Assembly Complete (includes illus. nos. 1, 3, 4, and 5) 800433 Non-Reversing Lint Trap ONLY 800441 Reversing Lint Trap Assembly Complete (includes illus.

  • Page 19: Lint Trap Assembly For Gas And Steam Models With 8" Exhaust Mfd. Prior To October 25, 1991

    For Gas and Steam Models with 8” Exhaust Mfd. prior to October 25, 1991 Illus. No. Part No. Qty. Description 800420 Non-Reversing Lint Trap Assembly Complete (includes illus. nos. 1, 3, 4, and 5) 800421 Non-Reversing Lint Trap ONLY 800422 Reversing Lint Trap Assembly Complete (includes illus.

  • Page 20: Drop Lint Door Assembly

    Drop Lint Door Assembly Illus. No. Part No. Qty. Description 800150 Knob Latch Kit Assembly (includes illus. nos. 1 and 2) 160200 Knob Latch ONLY with 2 Screws (without cam) 160003 Dummy Lock ONLY (for non-coin models) 160104 MK-100 Key ONLY (for dummy lock) 160009 Knob Latch Adjustable Cam ONLY 150425...

  • Page 21: Tumbler / Support Assembly

    Illus. No. Part No. Qty. Description 800708 Tumbler ONLY without Felt Collar 800857 Stainless Steel Tumbler ONLY without Felt Collar 800816* 1-3/4” Non-Reversing Tumbler and Support Assembly Complete (includes illus. nos. 1 through 10) 800873* 1-3/4” Stainless Steel Non-Reversing Tumbler and Support Assembly Complete (includes illus.

  • Page 22: Tumbler Bearing Assembly

    Tumbler Bearing Assembly Illus. No. Part No. Qty. Description 880220 1-3/4” Flange Bearing with Nylock Setscrew 153025 9/16” Lock Washer 152050 9/16-12 Hex Nut 150508 3/8-16 x 3/4” Hex Head Machine Bolt 153005 3/8” Lock Washer 152005 3/8-16 Hex Nut 150600 3/8-16 x 1-1/2”...

  • Page 23: Idler Bearing Assembly

    Illus. No. Part No. Qty. Description 100106 5L-690 V-Belt (idler to tumbler) 101140 14” x 3” Compound Pulley 100117 4L-620 V-Belt (idler to motor) for Non-Reversing Models ONLY 100114 4L-630 V-Belt (idler to motor) for Reversing Models ONLY 154301 5/16-18 x 1” Allen Setscrew 100705 3/16”...

  • Page 24: Non-Reversing T.e.f.c. Motor Mount Assembly For Models Mfd. Without Slanted / Tapered Tumbler Ribs

    Non-Reversing T.E.F.C. Motor Mount Assembly For Models Mfd. without Slanted / Tapered Tumbler Ribs American Dryer Corporation 450087 - 20...
  • Page 25 Illus. No. Part No. Qty. Description 100117 4L 620 V-Belt (motor to idler) 100701 3/16” x 3/16” x 1” Key 101133 5/8” x 2-1/4” Motor Pulley (for 60 Hz models Only) 101130 5/8” x 2-1/2” Motor Pulley (for 50 Hz models Only) 150501 5/16-18 x 3/4”...

  • Page 26: Reversing T.e.f.c. Motor Mount Assembly For Models Mfd. Without Slanted / Tapered Tumbler Ribs

    Reversing T.E.F.C. Motor Mount Assembly For Models Mfd. without Slanted / Tapered Tumbler Ribs American Dryer Corporation 450087 - 20...
  • Page 27 Illus. No. Part No. Qty. Description 100117 4L-620 V-Belt (motor to idler) for All Models Except 50 Hz Reversing 100114 4L-630 V-Belt (motor to idler) for 50 Hz Reversing Models ONLY 100701 3/16” x 3/16” x 1” Key 101133 5/8” x 2-1/4” Motor Pulley (for 60 Hz models Only) 101130 5/8”...

  • Page 28: Sensor Bracket Assemblies

    Sensor Bracket Assemblies American Dryer Corporation 450087 - 20...
  • Page 29 Illus. No. Part No. Qty. Description 880251 1/4” Temperature Sensor Probe Assembly (includes illus. nos. 1 and 5 through 8) 130103 225° Large Automatic Reset Thermostat 153010 #6 Star Washer 152000 #6-32 Hex Nut 121028 Insulated Terminal ONLY 122701 Socket Terminal ONLY 122801 Pin / Socket Extraction Tool 122605...

  • Page 30: Direct Spark Ignition Upshot Burner Assembly

    Direct Spark Ignition Upshot Burner Assembly Illus. No. Part No. Qty. Description 154004 Twin Speed Nut 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 802799 Sail Switch Box Cover and Bracket ONLY 122200 Sail Switch ONLY 150303 #4 x 3/4” Pan Head “A” Machine Screw 105500 Sail Switch Actuator Rod 319202...
  • Page 31 Illus. No. Part No. Qty. Description 143000 1/2” x 3/4” Reducing Coupling 881367 1/2” Union Shutoff with Tail Piece 128927 1/2” 24 VAC Redundant (natural gas) Gas Valve 140411 1/2” 24 VAC Gas Valve (liquid propane) Conversion Kit 142506 1/2” x 1/2” Street Elbow 142707 1/2”...

  • Page 32: Electric Oven Assembly For Models Mfd. As Of November 12, 1990

    Electric Oven Assembly For Models Mfd. as of November 12, 1990 American Dryer Corporation 450087 - 20...

  • Page 33: Electric Oven Assembly

    Illus. No. Part No. Qty. Description 803001 Large Electric Oven Box ONLY ––––––* Electric Oven Assembly Complete ––––––* – Electric Element 150300 #10 x 1/2” Hex Washer TEK Screw 802800 Sail Switch Box with Bracket and Cover ONLY 802801 Sail Switch Box Assembly Complete (includes illus.

  • Page 34: Electric Oven Assembly For Models Mfd. Prior To November 12, 1990

    Electric Oven Assembly For Models Mfd. prior to November 12, 1990 American Dryer Corporation 450087 - 20...
  • Page 35 Illus. No. Part No. Qty. Description 803001 Large Electric Oven Box ONLY ––––––* Electric Oven Assembly Complete ––––––* – Electric Element 150300 #10 x 1/2” Hex Washer TEK Screw 802800 Sail Switch Box with Bracket and Cover ONLY 802801 Sail Switch Box Assembly Complete (includes illus.

  • Page 36: 3-Phase (3Ø) Motor, Electric Relay Panel Assembly For Models Mfd. With 208-240 Volt Controls - Telemecanique

    3-Phase (3Ø) Motor, Electric Relay Panel Assembly For Models Mfd. with 208-240 Volt Controls – Telemecanique Illus. No. Part No. Qty. Description 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 311913 Service Box Cover Plate (9-7/8” x 4-3/8”) 137015 Arc Suppressor (capacitor) ONLY 132425 Impellor Contactor (208/230/240v –...

  • Page 37: 3-Phase (3Ø) Motor, Electric Relay Panel Assembly For Models Mfd. With 208-240 Volt Controls - Furnas

    Illus. No. Part No. Qty. Description 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 311913 Service Box Cover Plate (9-7/8” x 4-3/8”) 311921 Service Box Cover Plate (9-7/8” x 5-3/4”) 880662 Dual RC Suppressors ONLY 132400 Impellor Contactor (208/230/240v – 50/60 Hz) 150100 #8-32 x 1/2”...

  • Page 38: For Models Mfd. As Of December 1, 1988

    Microprocessor Reversing Rear Control Box Assembly For Models Mfd. with 208-240 Volt Controls – Telemecanique For Models Mfd. as of December 1, 1988 Illus. No. Part No. Qty. Description 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322812 Relay Box Cover ONLY 137060 Arc Suppressor Board (3) 137013...

  • Page 39: For Models Mfd. With 208-240 Volt Controls - Struthers-Dunn For Models Mfd. Prior To December 1, 1988

    Microprocessor Reversing Rear Control Box Assembly Illus. No. Part No. Qty. Description 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322812 Control Box Cover Plate ONLY 137060 Arc Suppressor Board (3) 137013 Nylon Standoff 153002 5/16” Lock Washer 152004 5/16-18 Hex Nut 150108 #8-32 x 3/4”...

  • Page 40: Dual Timer Reversing Rear Control Box Assembly For Models Mfd. With 208-240 Volt Controls - Telemecanique

    Dual Timer Reversing Rear Control Box Assembly For Models Mfd. with 208-240 Volt Controls – Telemecanique Illus. No. Part No. Qty. Description 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322808 Relay Box Cover Plate ONLY 150108 #8-32 x 3/4” Phillips Pan Head Machine Screw 132200 Reversing Timer (for 60 Hz models Only) 132202...

  • Page 41: Dual Timer Reversing Rear Control Box Assembly For Models Mfd. With 208-240 Volt Controls - Struthers-Dunn

    Illus. No. Part No. Qty. Description 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322808 Relay Box Cover Plate ONLY 150108 #8-32 x 3/4” Phillips Pan Head Machine Screw 132200 Reversing Timer (for 60 Hz models Only) 132202 Reversing Timer (for 50 Hz models Only) 151001 #8-32 Pal Nut 153002...

  • Page 42: Air-Operated Steam Damper Assembly For Models Mfd. As Of October 1, 1991

    Air-Operated Steam Damper Assembly For Models Mfd. as of October 1, 1991 Illus. No. Part No. Qty. Description 165009 Steam Coil Assembly 153002 5/16” Lock Washer 152004 5/16-18 Hex Nut 152002 1/4-20 Hex Nut 153007 1/4” Lock Washer 820321 Steam Damper Hinge Assembly 803415 Steam Damper Assembly (includes illus.

  • Page 43: Motorized Or Solenoid Steam Valve / Coil Assembly

    Illus. No. Part No. Qty. Description 165002 Large High Pressure Steam Coil 165003 Large Low Pressure Steam Coil 165107 1” Motorized Steam Valve (for high pressure steam models Only) 165102 1-1/4” Steam Valve – 120 Volt (for high pressure steam models Only) 165103 1-1/4”...

  • Page 44: Motorized Steam Valve Step Down Transformer

    Motorized Steam Valve Step Down Transformer Illus. No. Part No. Qty. Description 132002 200 Watt Transformer (terminals not included) – 120 Volt 880210 Terminal Package for Transformer 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 121400 Universal Bushing * Used on 208/230v control, high pressure steam models ONLY. American Dryer Corporation 450087 - 20...

  • Page 45: Outer Top / Back Guard Assemblies For Gas And Electric Models Only

    Illus. No. Part No. Qty. Description 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 312527 Outer Top Guard 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 314507 Back Guard (for non-reversing models Only) 314508 Back Guard (for reversing models Only) 880501 8”...

  • Page 46: Back Guard Assembly For Steam Models Only

    Back Guard Assembly For Steam Models ONLY Illus. No. Part No. Qty. Description 314511 Bottom Back Guard 150300 #10 x 1/2” Hex Washer TEK Screw 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322809 Rear Electrical Box Cover 880501 8”...

  • Page 47: Electric Oven Component Application Chart For Models Mfd. As Of November 12, 1990

    Oven Voltage Phase Wire Assembly Part No. 3ø 815109 3ø 815110 3ø 3 or 4 815109 3ø 815108 460/480 3ø 3 or 4 815108 3ø 3 or 4 815111 3ø 815106 3ø 815106 3ø 815306 3ø 3 or 4 815603 460/480 3ø...

  • Page 48: Electric Oven Component Application Chart For Models Mfd. Prior To November 12, 1990

    Oven Voltage Phase Wire Assembly Part No. Qty. 3ø 3ø 3ø 3 or 4 3ø 460/480 3ø 3 or 4 3ø 3 or 4 3ø 3ø 3ø 3ø 3 or 4 460/480 3ø 3 or 4 3ø 3 or 4 3ø...

  • Page 49: Additional Parts Available

    Part No. Description 112039 “Black / White / Green Ground” Label 112280 “Clean Lint Screen” Label 112534 “OPL Program Location Summary” Label 114001 “CAUTION – Exhaust / Lint Screen” Label 114006 “WARNING – Fire Hazards” Label 120100 3/8” Straight (BX) Connector 120300 3/8”...
  • Page 50 ADC Part No. 450087 20 - 09/19/08 - 0...
