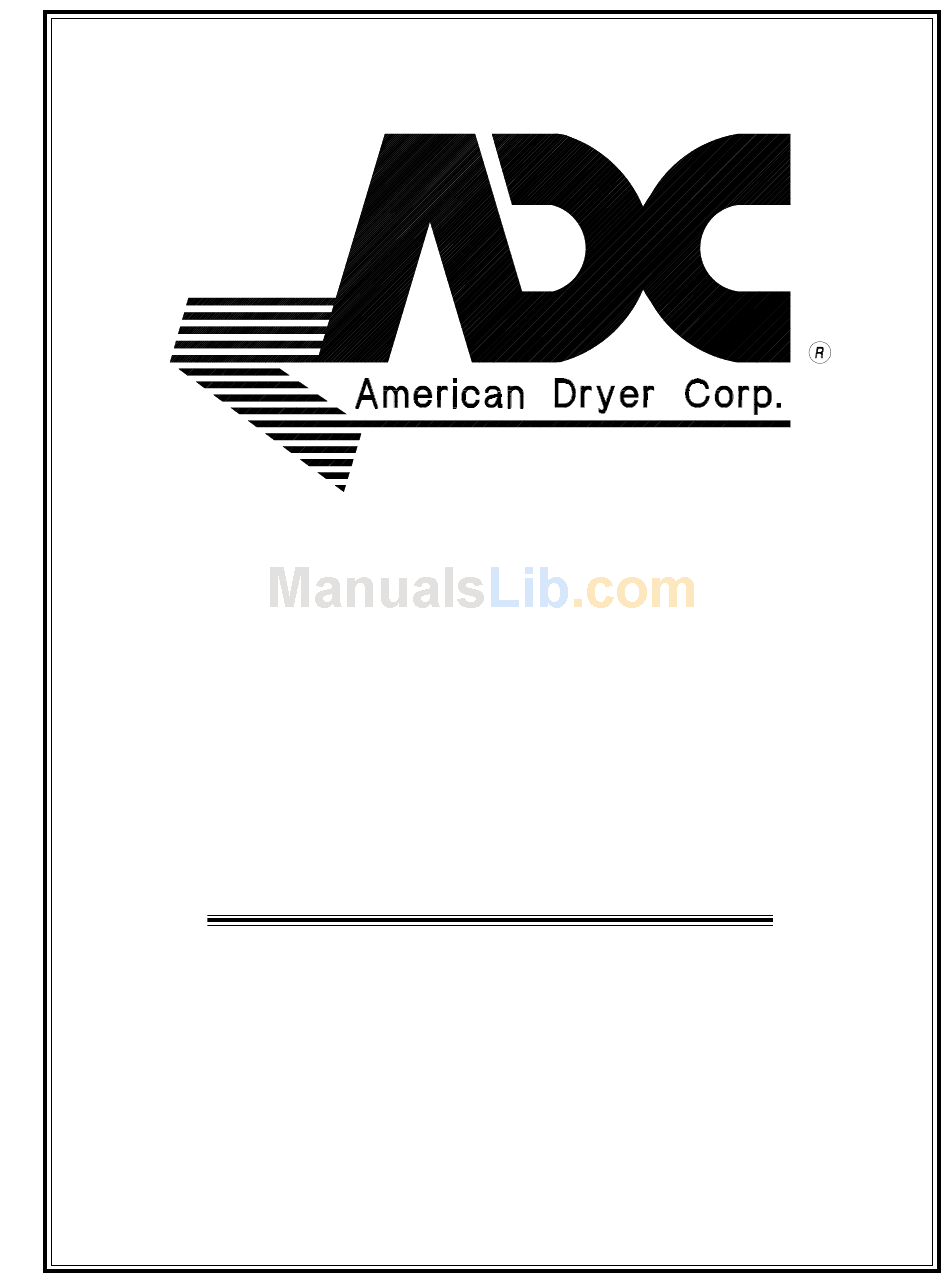

- Page 1 AD-75v Parts Manual American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com www.amdry.com 081800JCARRITA/tcosta ADC Part No. 450430...
- Page 2 These instructions must be posted in a prominent location near the dryer. POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil. Important MODEL NO. __________________________________________ AD-75v...
-
Page 3: Table Of Contents
Table of Contents OPL Control Door Assembly For Models Mfd. as of July 1, 2002 ... 2 Coin Control Door Assembly For Models Mfd. as of July 1, 2002 ... 3 Control Door Assembly For Models Mfd. prior to July 1, 2002 ... 4 Phase 5 OPL Microprocessor Control Panel Assembly ... -
Page 4: Opl Control Door Assembly
Illus. No. Part No. Qty. Description 881053 ADC Logo ONLY (with double adhesive tape) 870011 Logo Double Tape Kit...Not Illustrated 883616 White Control Door (includes illus. nos. 2 and 3) 883617 Coral Blue Control Door (includes illus. nos. 2 and 3) 883618 Ivory Control Door (includes illus. -
Page 5: Coin Control Door Assembly
Coin Control Door Assembly For Models Mfd. as of July 1, 2002 Illus. No. Part No. Qty. Description 160015 High Security Lock Assembly 160104 Key ONLY 160016 Lock Cam ONLY 881053 ADC Logo with Tape 883621 White Control Door Assembly with Black Trim (includes illus. -
Page 6: Control Door Assembly
Illus. No. Part No. Qty. Description 160015 High Security MK-100 Lock Assembly with Key (for coin models Only) 160017 Special Dummy Lock ONLY (for non-coin models Only) 160104 MK-100 Key ONLY 160052 Cam ONLY 881053 ADC Logo with Tape 870011 Double Sided Tape Kit...Not Illustrated 882751 White High Security Control Door Assembly Less Lock... -
Page 7: Phase 5 Opl Microprocessor Control Panel Assembly
Phase 5 OPL Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112535 OPL English Keyboard Label Assembly 112276 OPL Stick-On Labels (English Only)...Not Illustrated 112277 3-Language OPL Stick-On Labels...Not Illustrated (English, Spanish, and Hebrew) 801255 Phase 5 Microprocessor Control Panel ONLY 801256 Phase 5 Microprocessor Control Panel ONLY with Battery Bracket 801206... - Page 8 Phase 5 Coin Microprocessor Control Panel Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
-
Page 9: Phase 5 Coin Microprocessor Control Panel Assembly
Phase 5 Coin Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112526 Coin Keyboard Label Assembly 883537 Phase 5 Coin Control Panel Assembly (for models mfd. as of June 25, 2002) (includes illus. nos. 1, 2, and 4 through 6) 883538 Phase 5 Coin Control Panel Assembly with Battery Option (for models mfd. -
Page 10: Coin And Opl Control Box Assembly
Illus. No. Part No. Qty. Description 132002 Transformer (for mechanical steam damper models - 208 VAC and higher Only) 150300 #10-16 x 1/2” Hex Washer TEK Screw 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 131931 Steam Valve Relay - 24 VAC (for mechanical steam damper models Only) 137035 Capacitor... -
Page 11: Dual Timer "Tap Touch" Controls
Dual Timer “Tap Touch” Controls For Models Mfd. as of November 1, 2000 Illus. No. Part No. Qty. Description 824298 15 Minute Timer - 24 VAC 824299 60 Minute Timer - 24 VAC 824175 Red Pilot Light - 24 VAC 122301 “Tap Touch”... -
Page 12: Dual Timer Control Panel Assembly
Illus. No. Part No. Qty. Description 123005 Red Indicator Light - 24 VAC 122400 Rocker Heat Selector Switch 882596 Non-Reversing Dual Timer Control Panel Assembly Complete - 24 VAC (includes illus. nos. 1 through 16) 882540 Non-Reversing Panel Wiring Harness...Not Illustrated 882600 Reversing Dual Timer Control Panel Assembly Complete - 24 VAC (includes illus. -
Page 13: Coin Vault Assembly
Coin Vault Assembly Illus. No. Part No. Qty. Description 802112 Microprocessor Coin Vault Assembly Complete (includes illus. nos. 1 through 6) 802117 Microprocessor Coin Vault ONLY 160028 Cam ONLY for 1/4 Turn Lock 875061 1/4 Turn Lock with Key and Cam 160105* 1/4 Turn Mer-Pel Key ONLY 802020... -
Page 14: Front Panel Assembly
Illus. No. Part No. Qty. Description 882905 White Front Panel Assembly (includes illus. nos. 1, 5, and 6) 882901 Coral Blue Front Panel Assembly (includes illus. nos. 1, 5, and 6) 882902 Ivory Front Panel Assembly (includes illus. nos. 1, 5, and 6) 150313 #10-16 x 1/2”... -
Page 15: Main Door "Steel" Assembly For Models Mfd. With Steel Loading Doors
Main Door “Steel” Assembly For Models Mfd. with Steel Loading Doors Illus. No. Part No. Qty. Description 881150 Black Main Door Assembly Complete (includes illus. nos. 1, 2, and 8 through 15) 102354 Door Gasket 170731 Black Glass Adhesive (10.3 oz. cartridge) 881152 Black Top Hinge Block Assembly (includes illus. -
Page 16: Main Door Switch Assembly For Models Mfd. With Steel Loading Doors
Illus. No. Part No. Qty. Description 150006 #6-32 x 7/8” Phillips Pan Head Machine Screw 152013 #6-32 Hex Nut 153010 #6 Star Washer 137005 Door Switch 122636 Flag Terminal 881211 Black Main Door Switch Housing ONLY 881153 Black Main Door Switch Housing Complete (includes illus. -
Page 17: Front Panel Assembly For Models Mfd. With Plastic Loading Doors
Front Panel Assembly For Models Mfd. with Plastic Loading Doors Illus. No. Part No. Qty. Description 882753 White Front Panel Assembly (includes illus. nos. 1, 3, 5, and 6) 882754 Almond “B” Front Panel Assembly (includes illus. nos. 1, 3, 5, and 6) 882755 Coral Blue Front Panel Assembly (includes illus. -
Page 18: Main Door Assembly
Illus. No. Part No. Qty. Description 881422 Black Plastic Main Door Assembly Complete with Mechanical Fasteners (includes illus. nos. 1 and 5 through 9) 800448 12-1/2” Stainless Steel Main Door Hinge Assembly 150410 #10-24 x 3/8” Phillips Pan Head Taptite Screw 152014 1/4-20 Free Spin Wash Nut 102349... -
Page 19: Main Door Switch Housing For Models Mfd. With Plastic Loading Doors
Main Door Switch Housing For Models Mfd. with Plastic Loading Doors Illus. No. Part No. Qty. Description 152013 #6-32 Hex Nut 153008 #6 Lock Washer 137005 Single-Pole Door Switch 121028 Insulated Female Terminal 154281 3/8” Standard Nylon Spacer 800448 12-1/2” Stainless Steel Main Door Hinge Assembly (includes illus. -
Page 20: Basket (Tumbler)/Support Assemblies
Illus. No. Part No. Qty. Description 800708 Basket (tumbler) ONLY without Felt Collar 800857 Stainless Steel Basket (tumbler) ONLY without Felt Collar 800816 Basket (tumbler) and Support Assembly Complete (includes illus. nos. 1 through 10) 800873 Stainless Steel Basket (tumbler) and Support Assembly Complete (includes illus. -
Page 21: Lint Drawer/Lint Drawer Switch Assembly
Lint Drawer/Lint Drawer Switch Assembly Illus. No. Part No. Qty. Description 882757 White Lint Drawer Assembly (includes illus. nos. 1 and 2) 882758 Almond “B” Lint Drawer Assembly (includes illus. nos. 1 and 2) 882759 Coral Blue Lint Drawer Assembly (includes illus. - Page 22 Idler Bearing Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
-
Page 23: Idler Bearing Assembly
Idler Bearing Assembly Illus. No. Part No. Qty. Description 100108 5L-680 V-Belt (basket [tumbler] to idler) 101140 14” x 3” Compound Pulley 100194 4L-720 V-Belt (idler to motor) for Non-Reversing Models ONLY 100109 4L-650 V-Belt (idler to motor) for Reversing Models ONLY 154301 5/16-18 x 1”... -
Page 25: Basket (Tumbler) Bearing Assembly
Basket (Tumbler) Bearing Assembly For Models Mfd. with Griplock Type Bearings Illus. No. Part No. Qty. Description 883735 1-3/4” Flange Bearing (griplock) 153025 9/16” Lock Washer 152050 9/16-12 Hex Nut 883734 Pillow Block Bearing Assembly Complete (includes illus. nos. 4 through 15) 883742 Pillow Block Bearing Assembly Complete with Rotational Sensor Magnet (includes illus. -
Page 27: Basket (Tumbler) Bearing Assembly
Basket (Tumbler) Bearing Assembly For Models Mfd. with Setscrew Type Bearings Illus. No. Part No. Qty. Description 880220 1-3/4” Flange Bearing 153025 9/16” Lock Washer 152050 9/16-12 Hex Nut 882544 Pillow Block Bearing Assembly Complete (includes illus. nos. 4 through 16) 882545 Pillow Block Bearing Assembly Complete with Rotational Sensor and Magnet... -
Page 28: Non-Reversing Motor Mount Assembly
Non-Reversing Motor Mount Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781... -
Page 29: Non-Reversing Motor Mount Assembly
Non-Reversing Motor Mount Assembly Illus. No. Part No. Qty. Description 100194 4L-720 V-Belt (idler to motor) 100701 3/16” x 3/16” x 1” Key 101133 5/8” x 2-1/4” Motor Pulley (60 Hz Only) 101130 5/8” x 2-1/2” Motor Pulley (50 Hz Only) 150501 5/16-18 x 3/4”... - Page 30 Reversing Motor Mount Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
-
Page 31: Reversing Motor Mount Assembly
Reversing Motor Mount Assembly Illus. No. Part No. Qty. Description 100109 4L-650 V-Belt (to idler assembly) 100701 3/16” x 3/16” x 1” Key 101133 5/8” x 2-1/4” Motor Pulley (60 Hz Only) 101130 5/8” x 2-1/2” Motor Pulley (50 Hz Only) 120200 3/8”... - Page 32 Sensor Bracket Assemblies American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
-
Page 33: Sensor Bracket Assemblies
Sensor Bracket Assemblies Illus. No. Part No. Qty. Description 880251 1/4” Temperature Sensor Probe Assembly (includes illus. nos. 1 and 5 through 8) 130103 225° Large Automatic Reset Thermostat 153010 #6 Star Washer 152000 #6-32 Hex Nut 121028 Insulated Female Terminal 122701 Socket Terminal ONLY 122801... - Page 34 1/2” 24 VAC Redundant (natural gas) Gas Valve 880960 1/2” 24 VAC Direct Spark Ignition (DSI) Liquid Propane (L.P.) Gas Valve Assembly 882575 AD-75v Liquid Propane (L.P.) Conversion Kit 140820 #29 Burner Orifice (natural gas) ONLY 140805 #47 Burner Orifice (liquid propane [L.P.] gas Only)
-
Page 35: Direct Spark Ignition (Dsi) Burner Assembly
Direct Spark Ignition (DSI) Burner Assembly Illus. No. Part No. Qty. Description 150103 #8-32 x 3/4” Phillips Round Head Machine Screw 151001 #8-32 Pal Nut 150300 #10-16 x 1/2” Hex Washer TEK Screw 809309 Ignitor Probe Assembly with 19” Leads 150309 #10-16 x 1/2”... - Page 36 Electric Oven Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
-
Page 37: Electric Oven Assembly
Electric Oven Assembly Illus. No. Part No. Qty. Description 803005 Large Electric Oven Box ONLY --------* Electric Oven Assembly Complete --------* Electric Element 150300 #10-16 x 1/2” Hex Washer TEK Screw 802800 Sail Switch Box with Bracket and Cover ONLY 802801 Sail Switch Box Assembly Complete (includes illus. -
Page 38: Sail Switch Assembly
Illus. No. Part No. Qty. Description 319203 Sail Switch Mounting Bracket 319202 Sail Switch Damper (flat) 319201 Sail Switch Box Cover 319200 Sail Switch Box 154004 Twin Speed Nut 154002 1/8” Push On Fastener 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 150303 #4 x 3/4”... -
Page 39: Single-Phase (1Ø) Motor, Electric Relay Panel Assembly
Single-Phase (1ø) Motor, Electric Relay Panel Assembly Illus. No. Part No. Qty. 151000 150300 150008 120716 322817 882662 882663 818395 882652 882653 818396 136008 1 or 2 136049 136057 150301 150297 152004 121010 153002 132459 121300 Telephone: (508) 678-9000 Description #6-32 Pal Nut #10-16 x 1/2”... -
Page 40: 3-Phase (3Ø) Motor, Electric Relay Panel Assembly
Illus. No. Part No. Qty. Description 151000 #6-32 Pal Nut 150300 #10-16 x 1/2” Hex Washer TEK Screw 150008 #6-32 x 1-1/4” Phillips Pan Head Machine Screw 120701 4-Position Terminal Block (for models mfd. with 3ø motors) 120716 2-Position Terminal Block (for models mfd. with 1ø motors) 322817 Mounting Plate ONLY 882664... -
Page 41: 460-480 Vac 3-Phase (3Ø) Motor, Electric Relay Panel Assembly
460-480 VAC 3-Phase (3ø) Motor, Electric Relay Panel Assembly Illus. No. Part No. Qty. Description 150009 #6-32 x 1-1/2” Phillips Pan Head Machine Screw 120701 4-Position Terminal Block 830208 Transformer Assembly (460 VAC) for Micro Models ONLY 824161 Transformer Assembly (460 VAC) for Non-Micro Models ONLY 135501 1-Amp Double-Pole Circuit Breaker (460 VAC Only) 120768... -
Page 42: Reversing Electric Relay Panel Assembly
Illus. No. Part No. Qty. Description 150300 #10-16 x 1/2” Hex Washer TEK Screw 150008 #6-32 x 1-1/4” Phillips Pan Head Machine Screw 120701 4-Position Terminal Block 132458 3-Pole Reversing Contactor 882653 Transformer Assembly - 208-240 Volt (for gas and steam models Only) 825428 Transformer Assembly - 208-240 Volt (for electric models Only) 882654... -
Page 43: 460-480 Vac Reversing Electric Relay Panel Assembly
460-480 VAC Reversing Electric Relay Panel Assembly Illus. No. Part No. Qty. Description 132458 24 VAC Reversing Contactor 150297 #10 x 1/2” Green Hex Washer TEK Screw 121010 L-70 Ground Lug 152004 5/16-18 Hex Nut 153002 5/16” Lock Washer 132459 24 VAC 3-Pole Blower Contactor 150300 #10-16 x 1/2”... -
Page 45: Air-Operated Steam Damper Assembly
Air-Operated Steam Damper Assembly Illus. No. Part No. Qty. Description 165009 Steam Coil Assembly 153002 5/16” Lock Washer 152004 5/16-18 Hex Nut 152002 1/4-20 Hex Nut 153007 1/4” Lock Washer 820321 Steam Damper Hinge Assembly 803415 Steam Damper Assembly (includes illus. nos. 7, 10, and 11) 153007 1/4”... -
Page 46: Outer Top/Back Guard Assemblies
Illus. No. Part No. Qty. Description 322809 Back Electrical Box Cover 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 323738 Top Back Guard (for gas models Only) 320008 Top Back Guard (for electric models Only) 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 150300 #10-16 x 1/2”... -
Page 47: Microprocessor Coin Acceptors Listing
Microprocessor Coin Acceptors Listing NOTE: Coin acceptors listed include optical switch. Replacement optic switch for Hanke acceptor (ADC Part No. 881143). Replacement optic switch for Greenwald acceptor (ADC Part No. 137056). ADC Part No. Nation 883363 United States 882689 United States 125100 U.S. - Page 48 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 * When ordering Oven Assembly Complete, specify 3 wire or 4 wire when applicable, as well as if dryer has microprocessor controller (computer) or non-microprocessor controls.
-
Page 49: Additional Parts Available
Additional Parts Available Part No. Description 112039 “Black/White/Green Ground” Label 112280 “Clean Lint Screen” Label 112534 “Phase 5 OPL Program Location Summary” Label 114001 “CAUTION - Exhaust/Lint Screen” Label 114006 “WARNING - Fire Hazards” Label 114094 “MOP HEAD WARNING” Label 117505 Aluminum Duct Tape (sold by the foot) 120100... - Page 50 ADC 450430 1 - 10/30/00-25 2 * 02/20/03-15...
