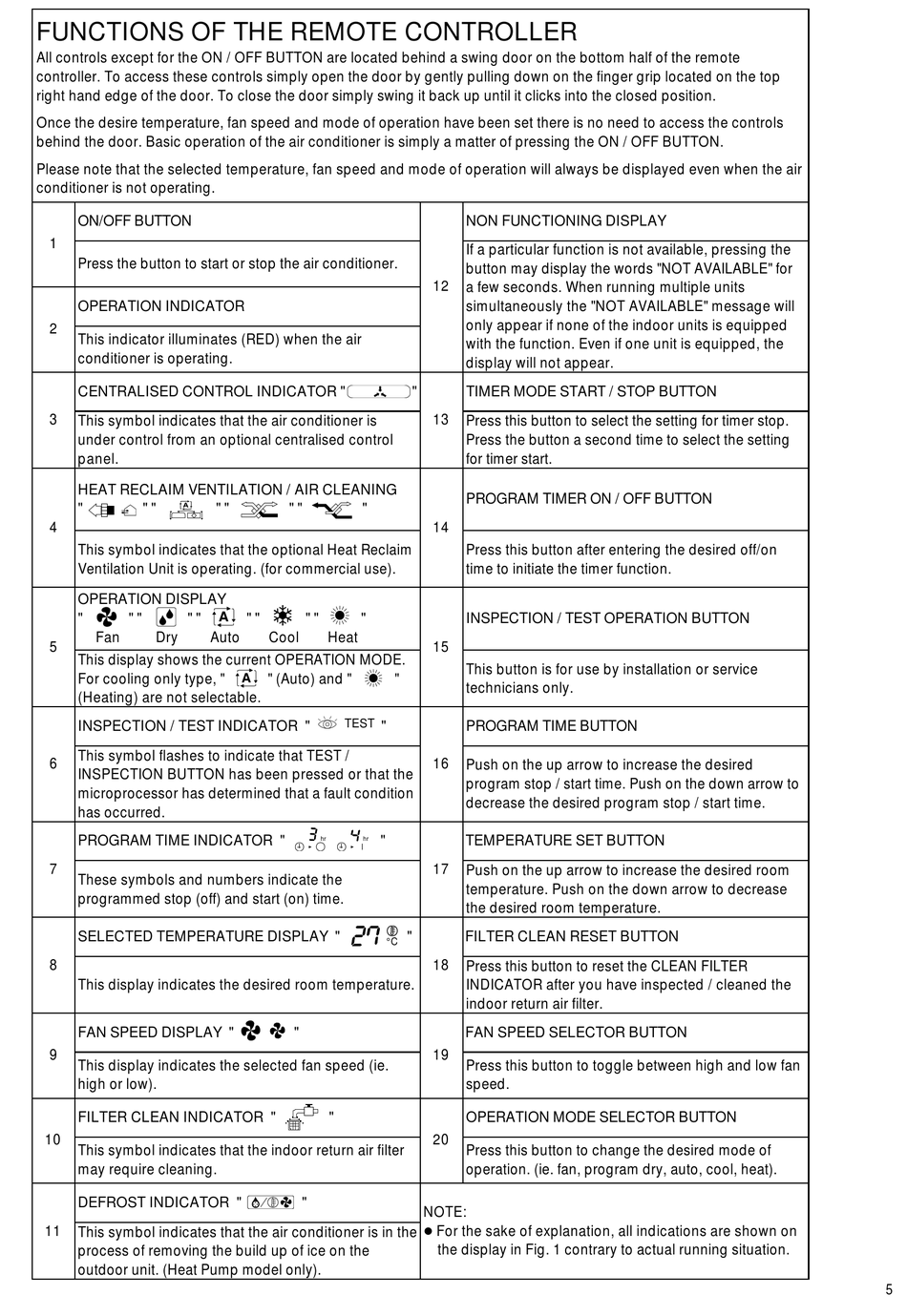

FUNCTIONS OF THE REMOTE CONTROLLER

All controls except for the ON / OFF BUTTON are located behind a swing door on the bottom half of the remote
controller. To access these controls simply open the door by gently pulling down on the finger grip located on the top
right hand edge of the door. To close the door simply swing it back up until it clicks into the closed position.
Once the desire temperature, fan speed and mode of operation have been set there is no need to access the controls
behind the door. Basic operation of the air conditioner is simply a matter of pressing the ON / OFF BUTTON.
Please note that the selected temperature, fan speed and mode of operation will always be displayed even when the air
conditioner is not operating.
ON/OFF BUTTON
1
Press the button to start or stop the air conditioner.
OPERATION INDICATOR
2
This indicator illuminates (RED) when the air
conditioner is operating.
CENTRALISED CONTROL INDICATOR "
3
This symbol indicates that the air conditioner is
under control from an optional centralised control
panel.
HEAT RECLAIM VENTILATION / AIR CLEANING
" " "
4
This symbol indicates that the optional Heat Reclaim
Ventilation Unit is operating. (for commercial use).
OPERATION DISPLAY
" " " " "
Fan Dry
5
This display shows the current OPERATION MODE.
For cooling only type, "
(Heating) are not selectable.
INSPECTION / TEST INDICATOR "
This symbol flashes to indicate that TEST /
6
INSPECTION BUTTON has been pressed or that the
microprocessor has determined that a fault condition
has occurred.
PROGRAM TIME INDICATOR "
7
These symbols and numbers indicate the
programmed stop (off) and start (on) time.
SELECTED TEMPERATURE DISPLAY "
8
This display indicates the desired room temperature.
FAN SPEED DISPLAY "
9
This display indicates the selected fan speed (ie.
high or low).
FILTER CLEAN INDICATOR "
10
This symbol indicates that the indoor return air filter
may require cleaning.
DEFROST INDICATOR "
11
This symbol indicates that the air conditioner is in the
process of removing the build up of ice on the
outdoor unit. (Heat Pump model only).
" " " " "
" " " " "
Auto Cool Heat
" (Auto) and "
TEST
hr hr
"
"
"
NON FUNCTIONING DISPLAY
If a particular function is not available, pressing the
button may display the words "NOT AVAILABLE" for
12
a few seconds. When running multiple units
simultaneously the "NOT AVAILABLE" message will
only appear if none of the indoor units is equipped
with the function. Even if one unit is equipped, the
display will not appear.
" TIMER MODE START / STOP BUTTON
13
Press this button to select the setting for timer stop.
Press the button a second time to select the setting
for timer start.
PROGRAM TIMER ON / OFF BUTTON
14
Press this button after entering the desired off/on
time to initiate the timer function.
INSPECTION / TEST OPERATION BUTTON
15
This button is for use by installation or service
"
technicians only.
" PROGRAM TIME BUTTON
16
Push on the up arrow to increase the desired
program stop / start time. Push on the down arrow to
decrease the desired program stop / start time.
" TEMPERATURE SET BUTTON
17
Push on the up arrow to increase the desired room
temperature. Push on the down arrow to decrease
the desired room temperature.
" FILTER CLEAN RESET BUTTON
C
18
Press this button to reset the CLEAN FILTER
INDICATOR after you have inspected / cleaned the
indoor return air filter.
FAN SPEED SELECTOR BUTTON
19
Press this button to toggle between high and low fan
speed.
OPERATION MODE SELECTOR BUTTON
20
Press this button to change the desired mode of
operation. (ie. fan, program dry, auto, cool, heat).
NOTE:
!
For the sake of explanation, all indications are shown on
the display in Fig. 1 contrary to actual running situation.
5
