MODELS
〈BS unit〉

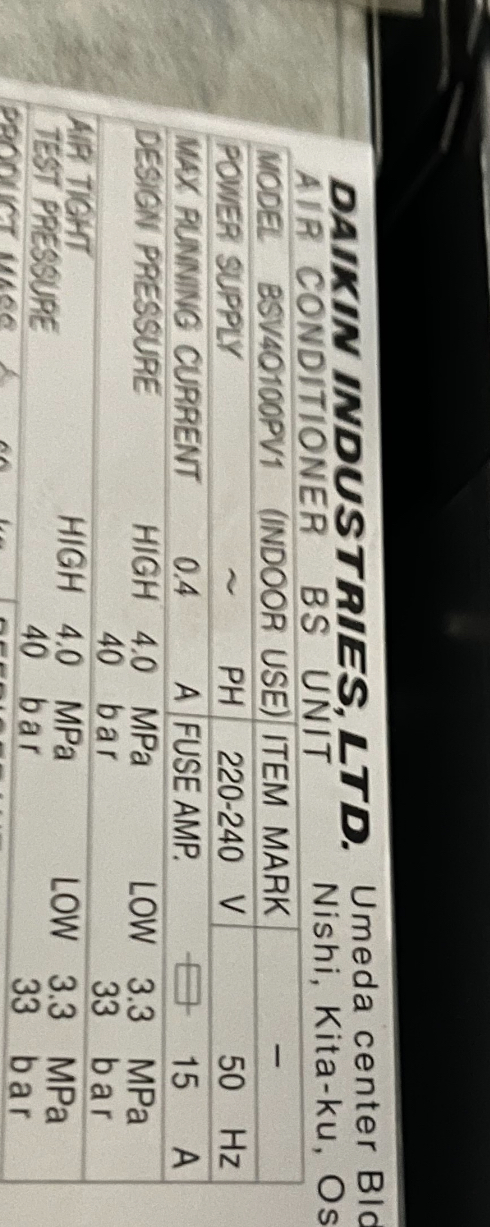

BSV4Q100PV1
BSV6Q100PV1
READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE.
LESEN SIE DIESE ANWEISUNGEN VOR DER INSTALLATION SORGFÄLTIG DURCH.
BEWAHREN SIE DIESE ANLEITUNG FÜR SPÄTERE BEZUGNAHME GRIFFBEREIT AUF.
LIRE SOIGNEUSEMENT CES INSTRUCTIONS AVANT L'INSTALLATION.
CONSERVER CE MANUEL A PORTEE DE MAIN POUR REFERENCE ULTERIEURE.
LEA CUIDADOSAMENTE ESTAS INSTRUCCIONES ANTES DE INSTALAR.
GUARDE ESTE MANUAL EN UN LUGAR A MANO PARA LEER EN CASO DE TENER
ALGUNA DUDA.
PRIMA DELL'INSTALLAZIONE LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI.
TENERE QUESTO MANUALE A PORTATA DI MANO PER RIFERIMENTI FUTURI.
ÄΙΑΒΑΣΤΕ ΠΡΟΣΕΚΤΙΚΑ ΑΥΤΕΣ ΤΙΣ ΟÄΗΓΙΕΣ ΠΡΙΝ ΑΠΟ ΤΗΝ ΕΓΚΑΤΑΣΤΑΣΗ ΕΧΕΤΕ ΑΥΤΟ
ΤΟ ΕΓΧΕΙΡΙÄΙΟ ΕΥΚΑΙΡΟ ΓΙΑ ΝΑ ΤΟ ΣΥΜΒΟΥΛΕΥΕΣΤΕ ΣΤΟ ΜΕΛΛΟΝ.
LEES DEZE INSTRUCTIES ZORGVULDIG DOOR VOOR INSTALLATIE. BEWAAR DEZE HAN-
DLEINDING WAAR U HEM KUNT TERUGVINDEN VOOR LATERE NASLAG.
LEIA COM ATENÇÃO ESTAS INSTRUÇÕES ANTES DE REALIZAR A INSTALAÇÃO.
MANTENHA ESTE MANUAL AO SEU ALCANCE PARA FUTURAS CONSULTAS.
ПЕРЕД НАЧАЛОМ МОНТАЖА ВНИМАТЕЛЬНО ОЗНАКОМЬТЕСЬ С ДАННЫМИ
ИНСТРУКЦИЯМИ. СОХРАНИТЕ ДАННОЕ РУКОВОДСТВО В МЕСТЕ, УДОБНОМ ДЛЯ
ОБРАЩЕНИЯ В БУДУЩЕМ.
MONTAJDAN ÖNCE BU TALÝMATLARI DÝKKATLÝ BÝR BÝÇÝMDE OKUYUN.
GELECEKTE BAÞVURMAK ÜZERE BU ELKÝTABINI KOLAY ULAÞABÝLECEÐÝNÝZ BÝR YERDE
MUHAFAZA EDÝN.
INSTALLATION MANUAL
III
SYSTEM Air Conditioners
English
Deutsch
Français
Español
Italiano
ëëçíéêÜ
Nederlands
Portugues
óññêèé
Advertisement
Table of Contents
Related Manuals for Daikin BSV4Q100PV1
Summary of Contents for Daikin BSV4Q100PV1
-
Page 1: Installation Manual
INSTALLATION MANUAL English SYSTEM Air Conditioners Deutsch MODELS Français 〈BS unit〉 BSV4Q100PV1 Español BSV6Q100PV1 Italiano READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE. ëëçíéêÜ LESEN SIE DIESE ANWEISUNGEN VOR DER INSTALLATION SORGFÄLTIG DURCH. - Page 2 3P216950-1D...
-
Page 3: Table Of Contents
BSV4Q100PV1 Installation manual SYSTEM Air Conditioners BSV6Q100PV1 CONTENTS 1 SAFETY PRECAUTIONS....................1 2 BEFORE INSTALLATION ....................3 3 SELECTING INSTALLATION SITE................5 4 PREPARATIONS BEFORE INSTALLATION ..............5 5 BS UNIT INSTALLATION....................6 6 REFRIGERANT PIPING WORK ..................7 7 ELECTRIC WIRING WORK ..................11 8 INITIAL SETTING......................15 9 CHECK OPERATION AND TEST OPERATION............15... - Page 4 • Make sure that a separate power supply circuit is provided for this unit and that all electrical work is carried out by qualified personnel according to local laws and regulations and this installation manual. An insufficient power supply capacity or improper electrical construction may lead to electric shocks or fire. •...
-
Page 5: Before Installation
If installed as a household appliance it could cause electromagnetic interference. 2-3 ACCESSORIES Check the following accessories are included with your unit. NOTE • Do not throw away any of the accessories until installation is complete. 〈BSV4Q100PV1〉 Explanation Name 1) Accessory pipes 2) Clamp... - Page 6 Total capacity of all downstreem indoor units Max. number of all downstreem indoor units A ≤ 400 BSV4Q100PV1 A ≤ 600 BSV6Q100PV1 * The total capacity and number of indoor units connectable to each branch connector are up to 100 and 5, respectively.
-
Page 7: Selecting Installation Site
Inspection hole 450(*1) Inspection hole 450(*1) (two pipes) In the case of BSV4Q100PV1 In the case of BSV6Q100PV1 (*2) Fig. 1 Fig. 2 (*1) Be sure to install the inspection hole on the EL. COMPO. BOX side. Another opening is required in the case of taking down the product. -
Page 8: Bs Unit Installation
• Be sure to support the connection piping around the unit using hanging brackets that are kept within 1 meter of the body side surface. Hanging excessive weight on the BS unit hanging bracket could cause the unit to fall and injure someone. (mm) BS unit BSV4Q100PV1 1102 BSV6Q100PV1 1626 < Suspension bolt pitch >... -
Page 9: Refrigerant Piping Work
6. REFRIGERANT PIPING WORK • For instruction for installing piping between the outdoor unit and BS unit, selecting a refrigerant branch kit, and installing piping between the refrigerant branch kit and the indoor unit, refer to the installation manual and equipment design materials included with the outdoor unit. •... - Page 10 (refrigerant branch kit) and BS unit, and between the BS unit and the indoor unit (refrigerant branch kit). The closed pipe kit (KHFP26A100C) should be used for selecting reluctantly 6-branch type (BSV6Q100PV1) as 5-branches and 4-branch type (BSV4Q100PV1) as 3 branches, and it is connected to the branch not con- nected for the indoor unit.
-
Page 11: Piping Connection
Table 3 BS unit connection pipe size (mm) Piping size (outer diameter) BS unit Gas pipe Liquid pipe BSV4Q100PV1 φ15.9 φ9.5 BSV6Q100PV1 6-5 PIPING CONNECTION Follow the connection example below and connect the site piping. When the downstream indoor unit total capacity is 100 or less and when one indoor unit with a capacity of 63 to 100 is connected downstream. - Page 12 When one indoor unit with a capacity of 20 to 50 is connected downstream Suction gas pipe (Site piping) BS unit HP/LP gas pipe (Site piping) (Top) Liquid pipe (Site piping) Unit D Unit C Unit B Unit A Accessory pipes 1)-2 Gas pipe (Site piping) Accessory pipes 1)-1 Liquid pipe (Site piping)
-
Page 13: Electric Wiring Work
Insulation Attachment Instructions Insulation Attachment Instructions (on three-pipe side) Two-pipe distribution side: Indoor unit connection side (1) Attach the insulation. (Field supply) Reducer (Field supply) (1) Attach the included Piping insulation Pipe connection insulation. (Site piping side) (Field supply) Pipe connection Bind the insulation material with an Piping insulation Piping insulation... - Page 14 7-2 EXAMPLE FOR THE WHOLE SYSTEM Power supply Outdoor unit Power supply wiring Switch Main Fuse Power supply Transmission wiring switch Main switch BSV4Q unit Indoor unit Remote controller BSV4Q unit Indoor unit Cooling-dedicated indoor unit Remote Remote controller controller 7-3 POWER CIRCUIT, SAFETY DEVICE AND CABLE REQUIREMENTS •...
- Page 15 7-4 WIRING EXAMPLE • Here is shown a wiring example for one system transmission wiring. • Connect terminals F1 and F2 (TO IN/D UNIT) on the control PCB in the outdoor unit EL. COMPO. BOX and terminals F1 and F2 (TO OUT/D UNIT) of the control PCB (A1P) of the first BS unit A. COOL/HEAT SELECTOR wiring Transmission wiring Use 3-core wires.
- Page 16 Transmission wiring from indoor unit (to F1 and F2 terminals of indoor unit) Transmission wiring from BS unit Terminal block Clamp 2)-1 (Accessory) (to F1 and F2 terminals of BS unit) Clamp 2)-1 (Accessory) Power supply wiring (to P1 and S terminals of terminal block) Wiring through hole Transmission wiring...
-
Page 17: Initial Setting
8. INITIAL SETTING • When the refrigerant piping and wire installation work is completed, make the following settings as required. 1. Setting for when connecting the COOL/HEAT SELECTOR to the BS unit. 〈Setting description〉 Set the input signal from the COOL/HEAT SELECTOR (sold separately) to ON/OFF. 〈Setting method〉... - Page 18 3P194121-4J EM09A001A (0907) HT...
