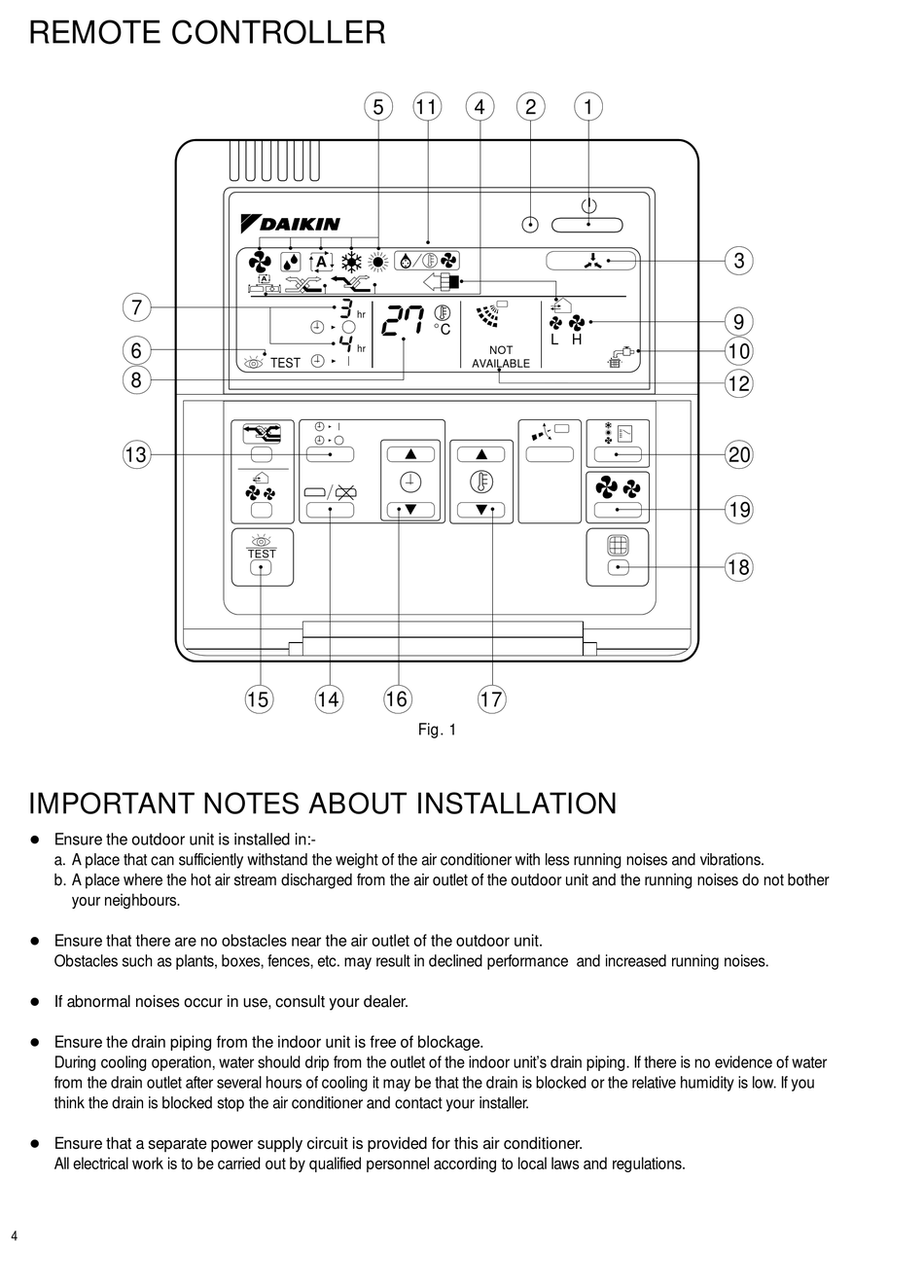

REMOTE CONTROLLER

7
6
8
13

IMPORTANT NOTES ABOUT INSTALLATION

!
Ensure the outdoor unit is installed in:-
a. A place that can sufficiently withstand the weight of the air conditioner with less running noises and vibrations.
b. A place where the hot air stream discharged from the air outlet of the outdoor unit and the running noises do not bother
your neighbours.
!
Ensure that there are no obstacles near the air outlet of the outdoor unit.
Obstacles such as plants, boxes, fences, etc. may result in declined performance and increased running noises.
!
If abnormal noises occur in use, consult your dealer.
!
Ensure the drain piping from the indoor unit is free of blockage.
During cooling operation, water should drip from the outlet of the indoor unit's drain piping. If there is no evidence of water
from the drain outlet after several hours of cooling it may be that the drain is blocked or the relative humidity is low. If you
think the drain is blocked stop the air conditioner and contact your installer.
!
Ensure that a separate power supply circuit is provided for this air conditioner.
All electrical work is to be carried out by qualified personnel according to local laws and regulations.
4
5
hr
hr
TEST
TEST
15 14 16
11 4 2
C
L H
NOT
AVAILABLE
17
Fig. 1
1
3
9
10
12
20
19
18
