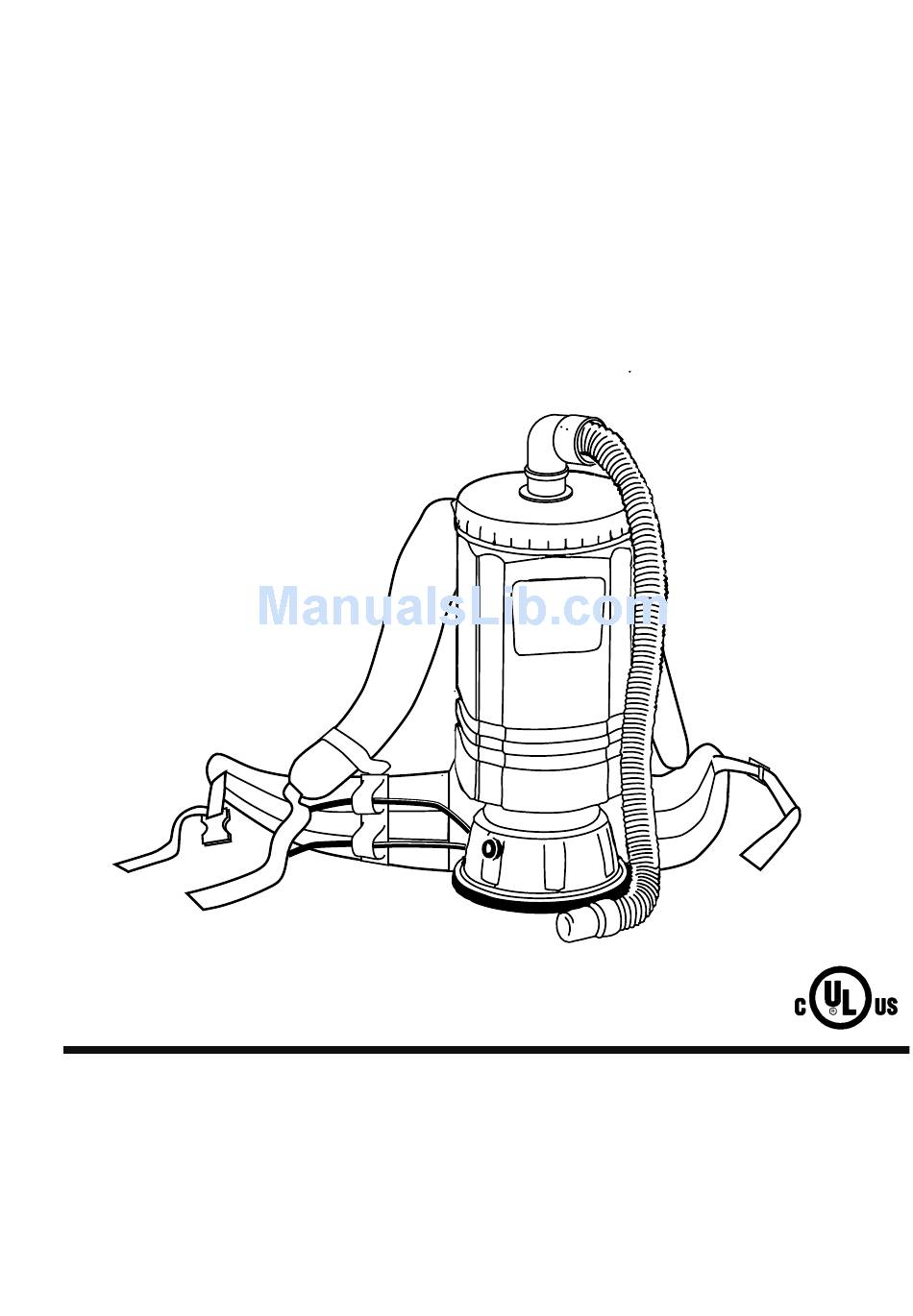

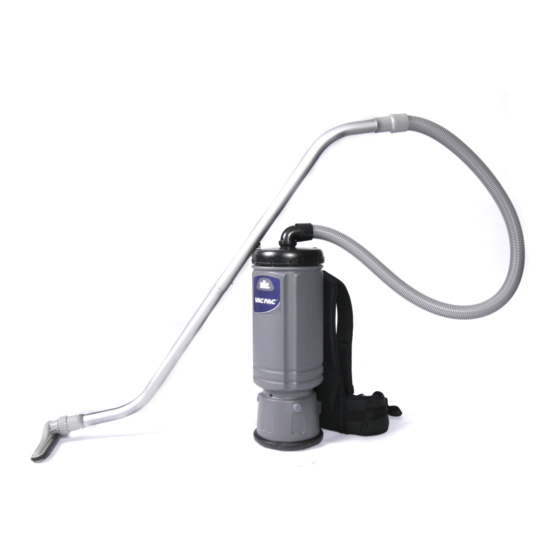

MODELS:
86038440-W
09/14/11
PRV NO. 98750
VP6
10140070
UVP6
10140040
VP10
10140050
UVP10
10140030
VPB10
10140110
BV11/1
10140120
Read instructions before operating the machine.
Operating Instructions (ENG)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Windsor VP6

  • Page 1 MODELS: 10140070 UVP6 10140040 VP10 10140050 UVP10 10140030 VPB10 10140110 BV11/1 10140120 Read instructions before operating the machine. Operating Instructions (ENG) 86038440-W 09/14/11 PRV NO. 98750...
  • Page 2: Machine Data Log/Overview

    MACHINE DATA LOG/OVERVIEW Model: Date of Purchase: Serial Number: Sales Representative: Address: Phone Number: Warranty Registration Thank you for choosing our product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to: http://warranty.karcherna.com/warrantyregistration.aspx 86038440 VACPAC 09/14/11...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Machine Data Log/Overview......2 Table of Contents..........3 HOW TO USE THIS MANUAL How to use this Manual.........1-1 SAFETY Important Safety Instructions ......2-1 Hazard Intensity Level........2-3 Grounding instructions ........2-5 Safety Label Location ........2-6 OPERATIONS Technical Specifications.......3-1 Equipment Set-Up.........3-2 Machine Operation........3-2 MAINTENANCE Daily Maintenance ........4-1...
  • Page 4: How To Use This Manual

    HOW TO USE THIS MANUAL The SAFETY section contains important information regarding hazardous or unsafe This manual contains the following sections: practices of the machine. Levels of hazards are identified that could result in product damage, HOW TO USE THIS MANUAL personal injury, or severe injury resulting in death.
  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Do not leave the appliance when plugged in. Unplug from outlet when not in use and before servicing. Do not use outdoors or on wet surfaces.
  • Page 6 IMPORTANTES MESURES DE SÉCURITÉ L’utilisation d’un appareil électrique demande certaines précautions: LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL). Pour réduire les risques d’incendie, de chocs électriques, ou de AVERTISSEMENT blessures : Ne laissez pas l'appareil sans surveillance lorsqu'il est branché. Débranchez l'appareil lorsqu'il n'est pas utilisé et avant tout entretien.
  • Page 7: Hazard Intensity Level

    HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death .
  • Page 8 LORS DE L’ENTRETIEN DE LA MACHINE : Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées Windsor homologuées.
  • Page 9: Grounding Instructions

    GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL Grounding Pin USE ONLY. GROUNDING CONNECTION ELECTRICAL: USING AN ADAPTOR In the USA this machine operates on a Grounded standard 15 amp 115V, 60 hz, A.C. power Outlet Metal Screw FIGURE A circuit. The amp, hertz, and voltage are listed on the data label found on each machine.
  • Page 10: Safety Label Location

    SAFETY LABEL LOCATION NOTE: This drawing indicates the location of safety label on the machine. If at any time the label becomes illegible, promptly replace it. WARNING LABEL 86198960 PRV NO. 68070 86038440 VACPAC 07/22/08...
  • Page 11 NOTES 86038440 VACPAC 07/22/08...
  • Page 12: Technical Specifications

    VP6/UVP6 = 6 Quart Filter Bag: VP10/UVP10/VPB10/BV 11/1 = 10 Quart General Dimensions/Weight 5' (1.5m) X 1.5" (3.8cm) Diameter Vacuum Hose: VP6/UVP6 = 10.1 Lb. (4.6 Kg) Weight: VP10/UVP10/VPB10/BV = 11/1 11.0 Lb. (5.0 Kg) 10.5" (267mm) Depth: VP6/UVP6 = 19.8" (503mm) Height: VP10/UVP10/VPB10/BV11/1 = 23.7"...
  • Page 13: Equipment Set-Up

    MACHINE OPERATION EQUIPMENT SET-UP OPERATION 1. Insert hose (90° swivel cuff end) into top of The unit is a commercial vacuum designed for dry unit. Attach desired cleaning tool. pick-up only. 2. Unclip waist and sternum straps. Loosen 1. Place a paper bag inside the cloth bag in the shoulder straps and hip belt.
  • Page 14: Daily Maintenance

    MAINTENANCE & WIRING DIAGRAM DAILY MAINTENANCE (At the end of each working day) 1. Turn cloth filter bag inside out and brush clean. Do not use a wire brush. Cloth bags can be vacuumed with another machine or washed occasionally in warm water using a mild, water-based soap without harming filtering capacity.
  • Page 15: Service Schedule

    TROUBLESHOOTING PROBLEM. CAUSE SOLUTION No power, vacuum Is the cord plugged in? Plug in cord. motor will not run Circuit breaker tripped in Reset breaker. building. Motor will restart after cooling down. To prevent repeated tripping, clear all restrictions out of hose Thermal protector tripped and tools, replace paper filter bag.
  • Page 16: Vacpac

    VACPAC 86038440 VACPAC 05/03/11...
  • Page 17 86198800 68020 FASTENER SET, MOTOR MOUNT 86198810 68030 FASTENER SET, BACK PLATE (TOP) 86198820 68081 FASTENER SET, BACK PLATE (BTM) 86198930 68092 FOAM, DIFFUSER 86198990 68054 LATCH, WAIST BELT 86312540 HARNESS ASSY, VP6/VP10 86198940 68066 HOSE ASSEMBLY 86038440 VACPAC 05/03/11...
  • Page 18: Accessory Tools And Kits

    ACCESSORY TOOLS AND KITS VPSK KIT VQS KIT 86038440 VACPAC 01/05/11...
  • Page 19 ACCESSORY TOOLS AND KITS SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86090220 89079 WAND, SPOTTER VPSK, VQS 86063120 78263 TOOL, SPOT LITE VPSK 86033020 78277 TOOL, QUICK SWEEP 86286660 02443 WAND, DOUBLE CURVE 2 PC. ALUM. INCL 15 & 16 OPEN OPEN 86000090...
  • Page 20: Suggested Spare Parts

    SUGGESTED SPARE PARTS PART NO PRV NO. DESCRIPTION NOTES: 86198840 68004 FILTER BAG, MICRO-TEX (CLOTH) LG 86198900 68074 FILTER BAG, MICRO-TEX (CLOTH) SM 86198850 68005 FILTER BAG, MICRO (PAPER) LG 10/PKG 86198910 68075 FILTER BAG, MICRO (PAPER) SM 10/PKG 86198870 68007 FILTER, DOME 86198890...
