WARNING:
This product and accessories may contain a chemical
State of California to cause cancer and birth defects or other
reproductive harm.
For more information about this regulation:
86394670-B
07/26/18
known
to the
www.P65Warnings.ca.gov
Read these instructions before using the machine.

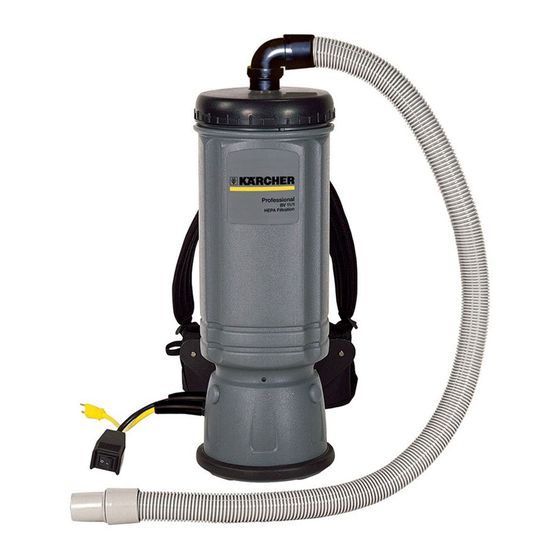

Operating instructions (ENG)
MODELS: VP6
UVP6
VP10
UVP10
1.014-013.0
9.841-324.0
1.014-014.0
9.841-325.0
Advertisement
Table of Contents
Related Manuals for Windsor 1.014-013.0
Summary of Contents for Windsor 1.014-013.0
- Page 1 Operating instructions (ENG) MODELS: VP6 1.014-013.0 UVP6 9.841-324.0 VP10 1.014-014.0 UVP10 9.841-325.0 WARNING: This product and accessories may contain a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information about this regulation: www.P65Warnings.ca.gov...
-
Page 2: Machine Data Label
Machine Data Label 86394670 - VacPac... -
Page 3: Table Of Contents
Table of Contents Maintenance Machine Data Label ......2 Daily Maintenance ..... . . 14 Table of Contents . -
Page 4: How To Use This Manual
How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •... -
Page 5: Safety
Safety IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Do not leave the appliance when plugged in. Unplug from outlet when not in use and before servicing. Do not use outdoors or on wet surfaces. - Page 6 Safety IMPORTANTES MESURES DE SÉCURITÉ L'utilisation d'un appareil électrique demande certaines précautions: LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL). Pour réduire les risques d'incendie, de chocs électriques, ou de blessures : AVERTISSEMENT Ne laissez pas l'appareil sans surveillance lorsqu'il est branché. Débranchez l'appareil lorsqu'il n'est pas utilisé et avant tout entretien.
-
Page 7: Hazard Intensity Level
Safety Hazard Intensity Level The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death. - Page 8 LORS DE L'ENTRETIEN DE LA MACHINE : Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées Windsor homo- loguées.
-
Page 9: Grounding Instructions
Safety Grounding Instructions Grounding Pin THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: GROUNDING CONNECTION USING AN ADAPTOR Grounded In the USA this machine operates on a standard 15 Grounded Outlet Box Outlet Adaptor amp 115V, 60 hz, A.C. power circuit. The amp, hertz, FIGURE A and voltage are listed on the data label found on each machine. -
Page 10: Safety Label Location
Safety Safety Label Location NOTE: This drawing indicates the location of safety label on the machine. If at any time the label becomes illegible, promptly replace it. WARNING LABEL 86198960 86394670 - VacPac... - Page 11 NOTES 86394670 - VacPac...
-
Page 12: Operations
Operations Technical Specifications ITEM DIMENSION/CAPACITY Power Type: Electrical: 115V, 8A, 60 Hz Electric Vacuum Motor: Single Stage = 1.6 HP, 80 CFM, (2.2 Cubic Meter/Min.) Waterlift: 95 Inches of Water Filter Bag: VP6/UVP6 = 6 Quart VP10/UVP10 = 10 Quart General Dimensions/Weight Vacuum Hose: 5' (1.5m) X 1.5"... -
Page 13: Equipment Set-Up
Operations Equipment Set-Up Machine Operation 1. Insert hose (90° swivel cuff end) into top of unit. The unit is a commercial vacuum designed for dry Attach desired cleaning tool. pick-up only. 2. Unclip waist and sternum straps. Loosen 1. Place a paper bag inside the cloth bag in the shoulder straps and hip belt. -
Page 14: Maintenance
Maintenance Daily Maintenance (At the end of each working day) 1. Turn cloth filter bag inside out and brush clean. Do not use a wire brush. Cloth bags can be vacuumed with another machine or washed occasionally in warm water using a mild, water-based soap without harming filtering capacity. -
Page 15: Troubleshooting
Maintenance Troubleshooting PROBLEM. CAUSE SOLUTION No power, vacuum Is the cord plugged in? Plug in cord. motor will not run Circuit breaker tripped in building. Reset breaker. Motor will restart after cooling down. To prevent repeated tripping, clear all restric- tions out of hose and tools, replace paper Thermal protector tripped filter bag. - Page 16 115V HEPA VAC PAC Valid on 26.09.2018 Page 2 / 5...
- Page 17 115V HEPA VAC PAC Valid on 26.09.2018 Page 3 / 5...
- Page 18 115V HEPA VAC PAC Article no. Description Quantity Unit 8.619-874.0 Cap black 1.000 8.619-909.0 Spacer back plate 2.000 8.619-873.0 Bumper VP6/10 1.000 8.619-890.0 FILTER BAG LINER, CLOTH VP6 1.000 8.619-884.0 VAC PAC TM Cloth Bag for VP10 only 1.000 8.619-891.0 FILTER BAG, VP6 PAPER PKG/10 1.000 8.619-885.0...
- Page 19 28 VacPac Serial Numbers Description Quantity Unit SERIAL NUMBER PAGE 1.000 Valid on 26.09.2018 Page 5 / 5...
