JnstaJJation instructions

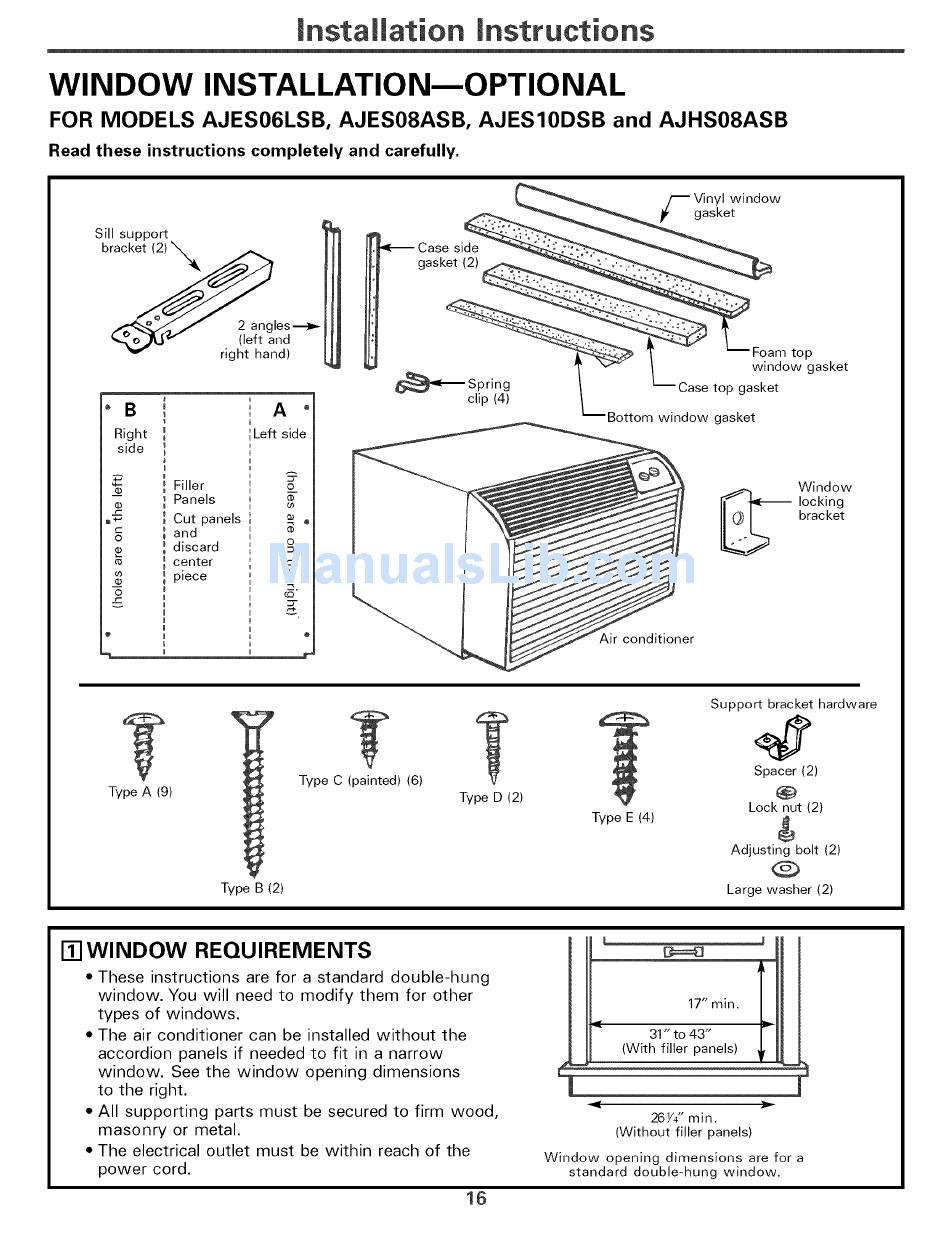

WINDOW INSTALLATION--OPTIONAL
FOR MODELS AJES06LSB, AJES08ASB, AJES10DSB and AJHS08ASB
Read these instructions completely and carefully.
Sill support
bracket (2) x_k
2 angles_
(left and
right hand)
° B
Right
side
d)
-(:
¢0
I A •
J
'_ Left side
Filler
Panels m
60
Cut panels _
and
discard o
center
piece m
u i o
L I
B I
_-_ Case side
gasket (2)
F inyl window
gasket
Foam top
_ _ window gasket
Spring \ Case top gasket
clip (4) \
_Bottom window gasket
Window
_ locking
bracket
Air conditioner
Type A (9)
'i
Type B (2)
Type C (painted) (6)
Type D (2)
Type E (4)
Support bracket hardware
4'
Spacer (2)
Lock nut (2)
&
Adjusting bolt (2)
@
Large washer (2)
[] WINDOW REQUIREMENTS
• These instructions are for a standard double-hung
window. You will need to modify them for other
types of windows.
• The air conditioner can be installed without the
accordion panels if needed to fit in a narrow
window. See the window opening dimensions
to the right.
• All supporting parts must be secured to firm wood,
masonry or metal.
• The electrical outlet must be within reach of the
power cord.
, 17 min II
_ (Wit h31'il_°r43anels)_'-1
26 Y4" min.
(Without filler panels)
Window opening dimensions are for a
standard double-hung window.
16
