JnstaJJation instructions

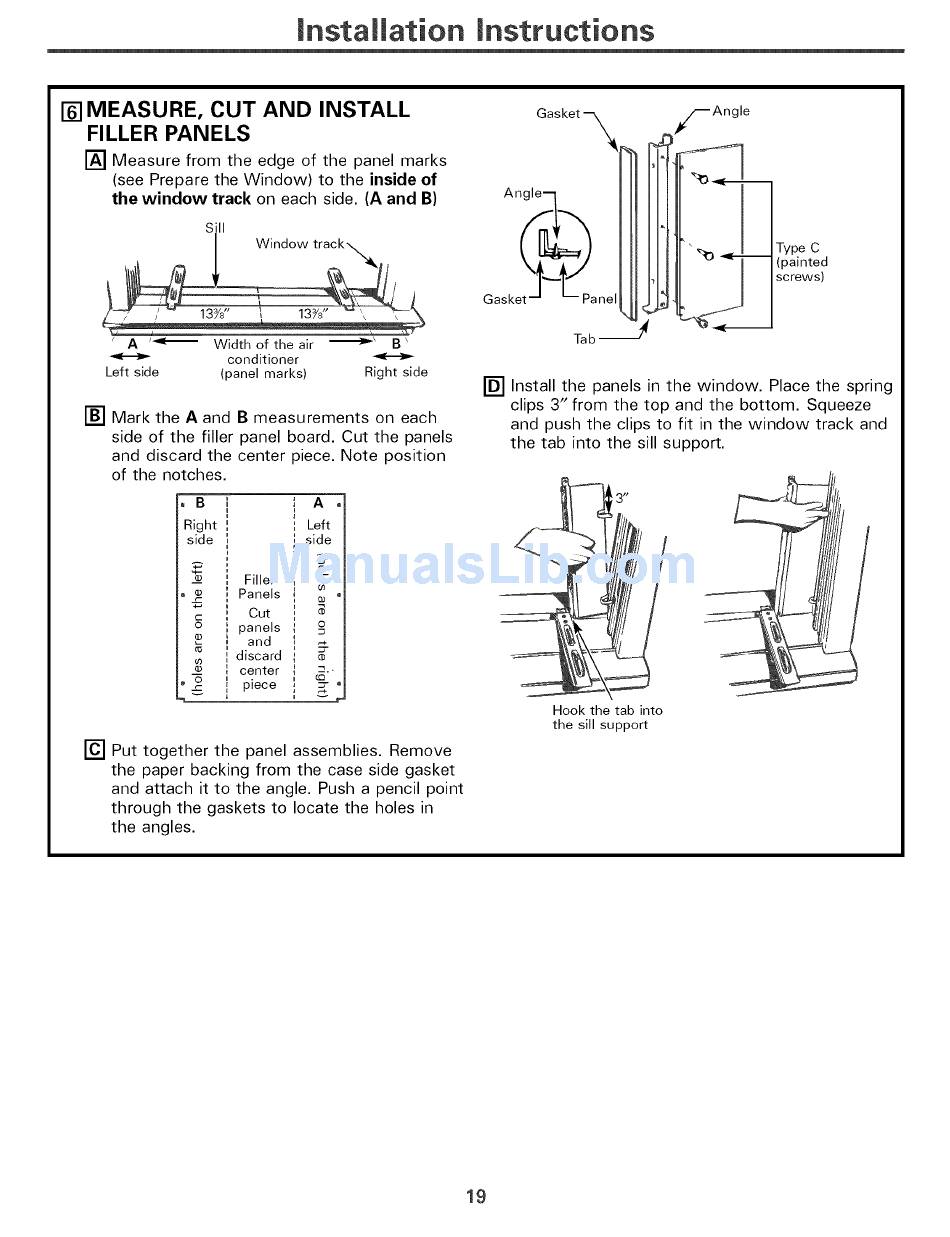

[] MEASURE, CUT AND INSTALL
FILLER PANELS
[] Measure from the edge of the panel marks
(see Prepare the Window) to the inside of
the window track on each side. (A and B)
Sill
Window track _,_1 k
J A _'_ Width of thealr _ B
conditioner
Left side (panel marks) Right side
[] Mark the A and B measurements on each
side of the filler panel board. Cut the panels
and discard the center piece. Note position
of the notches.
° B A °
Right Left
side side
Filler
Panels °
c Cut
o
panels o
'_ and
discard _"
center
o _ piece , _ °
[] Put together the panel assemblies. Remove
the paper backing from the case side gasket
and attach it to the angle. Push a pencil point
through the gaskets to locate the holes in
the angles.
Gasket--_ _j¢/_ Angle
Angle
Gasket ___Panel
Tab J
Type C
(painted
screws)
[] Install the panels in the window. Place the spring
clips 3" from the top and the bottom. Squeeze
and push the clips to fit in the window track and
the tab into the sill support.
J13"
Hook the tab into
the sill support
19
