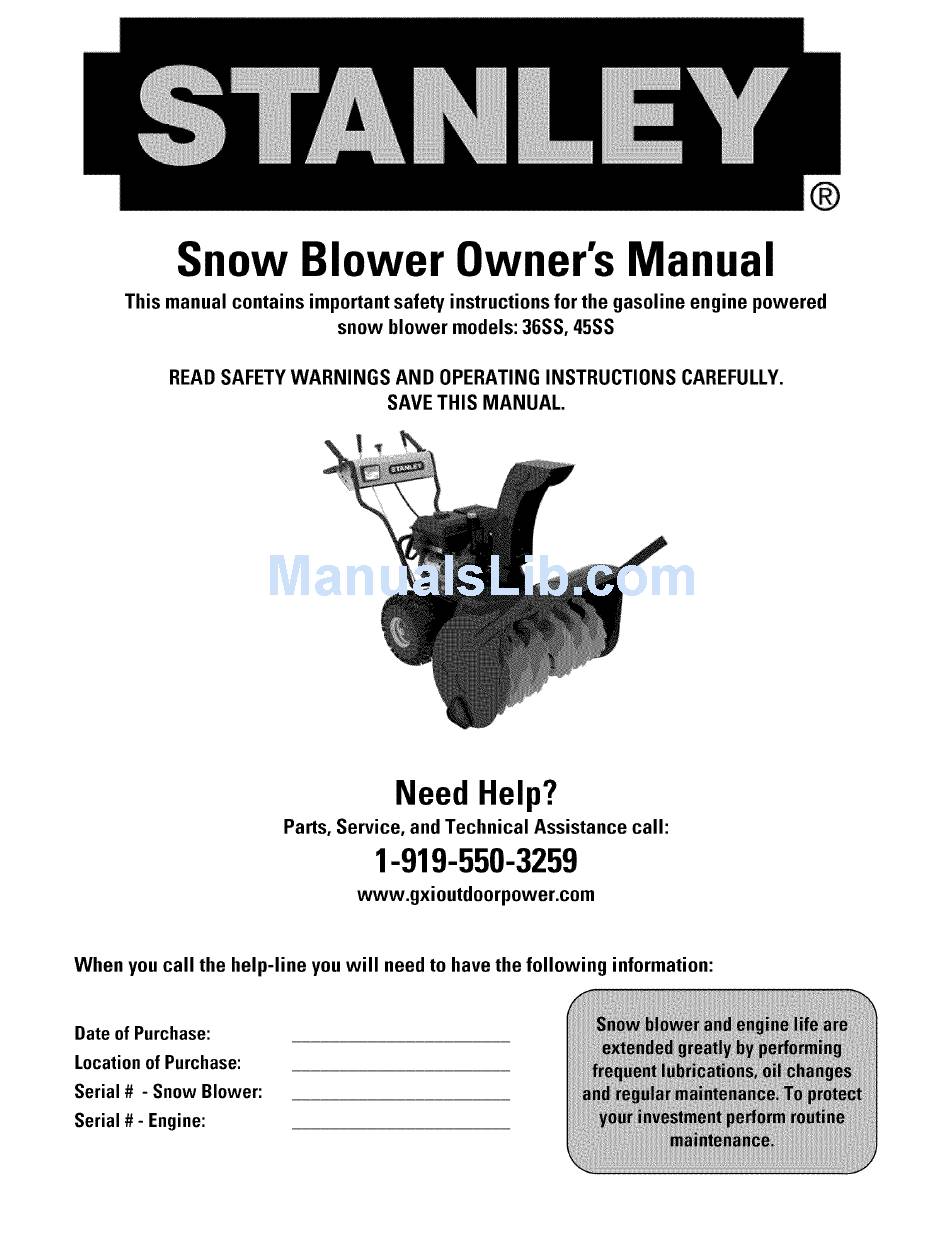

Snow Blower Owner's Manual
This manual contains important safety instructions for the gasoline engine powered
snow blower models: 36SS, 45SS
READ SAFETYWARNINGS AND OPERATING INSTRUCTIONS CAREFULLY.
SAVE THIS MANUAL.
Need Help?
Parts, Service, and Technical Assistance call:
1-919-550-3259
www.gxioutdoorpower.com
When you call the help-line you will need to have the following information:
Date of Purchase:
Location of Purchase:
Serial # - Snow Blower:
Serial # - Engine:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 36SS and is the answer not in the manual?

Questions and answers

Related Manuals for Stanley 36SS

Summary of Contents for Stanley 36SS

  • Page 1 Snow Blower Owner's Manual This manual contains important safety instructions for the gasoline engine powered snow blower models: 36SS, 45SS READ SAFETYWARNINGS AND OPERATING INSTRUCTIONS CAREFULLY. SAVE THIS MANUAL. Need Help? Parts, Service, and Technical Assistance call: 1-919-550-3259 www.gxioutdoorpower.com When you call the help-line you will need to have the following information:...
  • Page 2 No part of this publication can be reproduced or distributed without prior written permission of GXi Outdoor Power,//C Clayton, NC 27520 USA. STANLEYIs a registered trademark of The Stanley Works or its affiliates and is used under license by GXi Outdoor Power, l/C, 7868 Highway 70 Business, Clayton, NC 27520 GXi Outdoor Power,//C reserves the right to discontinue or change specifications or design at any time without notice and without incurring any obligation whatsoever.
  • Page 3 STANLEY Product Lines Brush Mower • 36" BrushMower. • 20 hp Kawasakiengine with electric start. • Dual hydrostatic drive for maneuverability. • Convertibledeck-- easily converts to a finish mower. • Heavyduty 6 gauge welded deck. • High capacity deckfor high speedsthrough tall grass.
  • Page 4 STANLEY Product Lines Electric Pressure Washer 1450 psi to 1800 psi electric pressure washers 20 ft of high pressure hose and 35 ft. cord with GFCI protection Sleek and unique, high quality, stainless steel finish 13 Amps, 120V Auto=stop shut off system pronongs pump nife Generator Cord Accessories 240V, 10/4,heavy duty extension cords with L14-30connectors at each end.

  • Page 5: Table Of Contents

    About the Stanley Snow Blower Manual Congratulations on the purchase of your new Stanley commercial snow blower. We at GXi Outdoor Power are confident that this snow blower will provide excellent performance, outstanding quality, and great durability when operated and maintained as directed in this manual.
  • Page 6 Safety Information and Warnings 36SS, 4 5SS Safety Information Training Emission Control System Information Read, understand, and follow all mstructmns on tile Tile U S and California CleanA_r Acts machine and manual(s) before attempting to assemble EPAand Cahfornm regulations require all manufacturers...

  • Page 7: Preparation Safety Precautions

    Preparation Safety Precautions 36SS, 4 5SS Preparation--Safety Precautions not operate _fany are damaged or m_ss_ng Inspect the area where the equipment is to be used 11 Never attempt to make any adjustments to the snow and remove all objects such as rocks, mats, and...

  • Page 8: Operation Safety Precautions

    Operation Safety Precautions 36SS, 4 5SS directioosand-reversing lo be surethere is a clear Equipment Operation_Safety Precautions. path. -- t. Donot operatethe engine ina confined space.. -16. Neveroperatesnow blower at high transportspeeds- where dangerouscarbonmonoxidefumes can on slipperysurfaces. collect: Carbonmonoxideis odorless,tasteless, and 17_ Never0perate snow btower under.theinfluence of...
  • Page 9 3. Always use a cleanout tool and neveryour hands. Groundthe spark plug when clearing if handsget close to the augers/impeller. Before setting up your STANLEY snow blower, disconnect the spark plug wires from the spark plugs and ground them against the engine to prevent inadvertent starting.

  • Page 10: Safety Decals

    Safety Decals 36SS, 4 5SS Safety Decal Identification The labels shown below are located on your snow blower to warn you of potential hazardsand provide you with important safety information. If these decals become difficult to read or are missing from the snow blower, please contact GXi Parts & Service, LLCat 1-919-550-3259 or www.gxioutdoorpower.com for a replacement.

  • Page 11: Product Specifications

    Product Specifications 36SS, 4 5SS Models Feature 36SS 45SS Product Type Snow blower Snow blower Clearing Path 36" 45" Engine 420cc, 15 HP 420cc, 15 HP Engine Start 120V Electric Start and Recoil 120V Electric Start and Recoil Speed Control...

  • Page 12: Control Panel And Snow Blower Components

    Control Panel and Snow Blower Components 36SS, 4 5SS Throughout this manual, instructions are given on the operation of your STANELYsnow blower. We recommendthat while going through this manual, you have your snow blower available for quick and easy access in order to orient yourself with the controls, maintenance and orientation of different parts.

  • Page 13: Missing Parts Requestform

    Missing Parts RequestForm 45SS 36SS, Please indicate the part that you are missing: Name Hardwarebag Other Address Date of purchase Model #: Phone Email Serial#: Comments: IMPORTANT:Please include your receipt. Without a receipt, your order will be delayed. You may also email us at: customerservice@gxioutdoorpower.com...

  • Page 14: Assembly Instructions

    Assembly Instructions 36SS, 45SS Step 1: Control Panel Handles Align the two holes on each side of the control panel handles over the lower handle frame. Insert the bolts through the handlebar holes and frame holes. Secure in place with hardware provided.
  • Page 15 Assembly Instructions 36SS, 45SS Step 4: Drive Control Locate the thin cable on the right side (standing in front of the controls) of the snow blower. Attach the cable to the threaded end under the drive control handle. Screw clockwise to secure.
  • Page 16 Assembly Instructions 36SS, 45SS Step 6: Drift Cutters (if desired) 1. The drift cutters are attached to the main housing in the stored position. 2. Removethe two bolts on each drift cutter. 3. Reattachthe drift cutters in the operating position.

  • Page 17: Starting The Engine

    Starting the Engine 36SS, 4 5SS wAoN,No DANGER WARNING! The electric starter is designed to operate on 120 volt AC household current. Use only a U/-listed, 16 gauge extension cord for outdoor use that is no longer than 50 feet (15 meters).

  • Page 18: Operating Instructions

    Operating Instructions 36SS, 4 5SS Transmission Control Engage Transmission Drive Your snow blower is equipped with an easily To engage the transmission drive squeeze the right lever to the adjustable transmission control, which can be hand grip. adjusted for forward and reverse speed.
  • Page 19 Operating Instructions 36SS, 4 5SS Chute Direction Control Headlights To rotate the chute to the fight rotate the chute control clock- To turn on the lights, flip the switch up. wise. To turn off the lights, flip the switch down.

  • Page 20: General Maintenance

    General Maintenance 36SS, 4 5SS The Importance of Maintenance CAUTION Regular maintenance is essential to ensureyour snow blower continues to deliver safe and high-quality performance. To help you properly care for your snow blower, the following Check Skid Shoes pages include a recommendedmaintenance schedule,...

  • Page 21: Maintenance Schedule

    Maintenance Schedule 36SS, 4 5SS Break-in Every 8 hrs Every 40 hrs Every 100 hrs Every 200 hrs first 5 hrs) (daily) (weekly) (Bi-weel<ly) (monthly) Item Procedure Inspect (adjust if Belts needed) Augers/Impeller Inspect Engine Air Filter Inspect Check Engine 0il...

  • Page 22: Service Adjustments

    Service Adjustments 36SS,45SS AdjustingDriveCable Adjusting Augers/Impeller Cable If tension seems to be too loose or too tight the If tension seems to be too loose or too tight the drive augers/impeller cables needsto be readjusted. cables needsto be readjusted. Loosenthe bolt above where the cable screws in 1.

  • Page 23: Adjust/Replacing Drive And Augers/Impeller Belts

    Check & Replacing the Augers/Impeller Belt Thereare two located in the front of the snow blower behind the discharge chute and in front of the wheels. 1. Removethe cover that is protecting the Stanley Snow Blower's belts. Removethe screws and simply lift up the cover.

  • Page 24: Changing Friction Wheel

    Service Adjustments 45SS 36SS, Adjusting Discharge Deflector The dischargechute is preset at the factory, but may require adjustment over time or during maintenance. For adjustments, follow the procedurebelow: 1. Loosenthe two nuts at the chute cable mount on the discharge chute.

  • Page 25: Storage Instructions

    Storage Instructions 36SS, 4 5SS Short Term Storage • Do not drain fuel indoors or neara flame. • Let engine cool before storing and do not store near flame, high heat, and possible ignitions from sparks. • Always park machine on level ground.

  • Page 26: Troubleshooting

    Troubleshooting 36SS, 45SS Problem Possible Causes Solution Engine will not start Key in the OFFposition Turn key to ON position Insufficient fuel in the tank Add gasoline Air bubble in the fuel line Primeengine or shake bubble out Fuelvalve in OFFposition...
  • Page 27 Troubleshooting 36SS, 45SS Problem Possible Causes Solution Snow blower will not move Transmission cable out of Readjusttransmission cable forward or reverse adjustment (too loose) or damaged. If damaged, replace and readjust. Cannot move snow blower Releasetransmission handle Transmission handle is pressed into...

  • Page 28: Limited Warranty And Service

    "certified" to EPAstandards. The emission control systems onyour STANLEYengine were designed, built, and certified to conform with EPAregulations. We recommend the use of genuine STANLEY parts whenever you have maintenance done.
