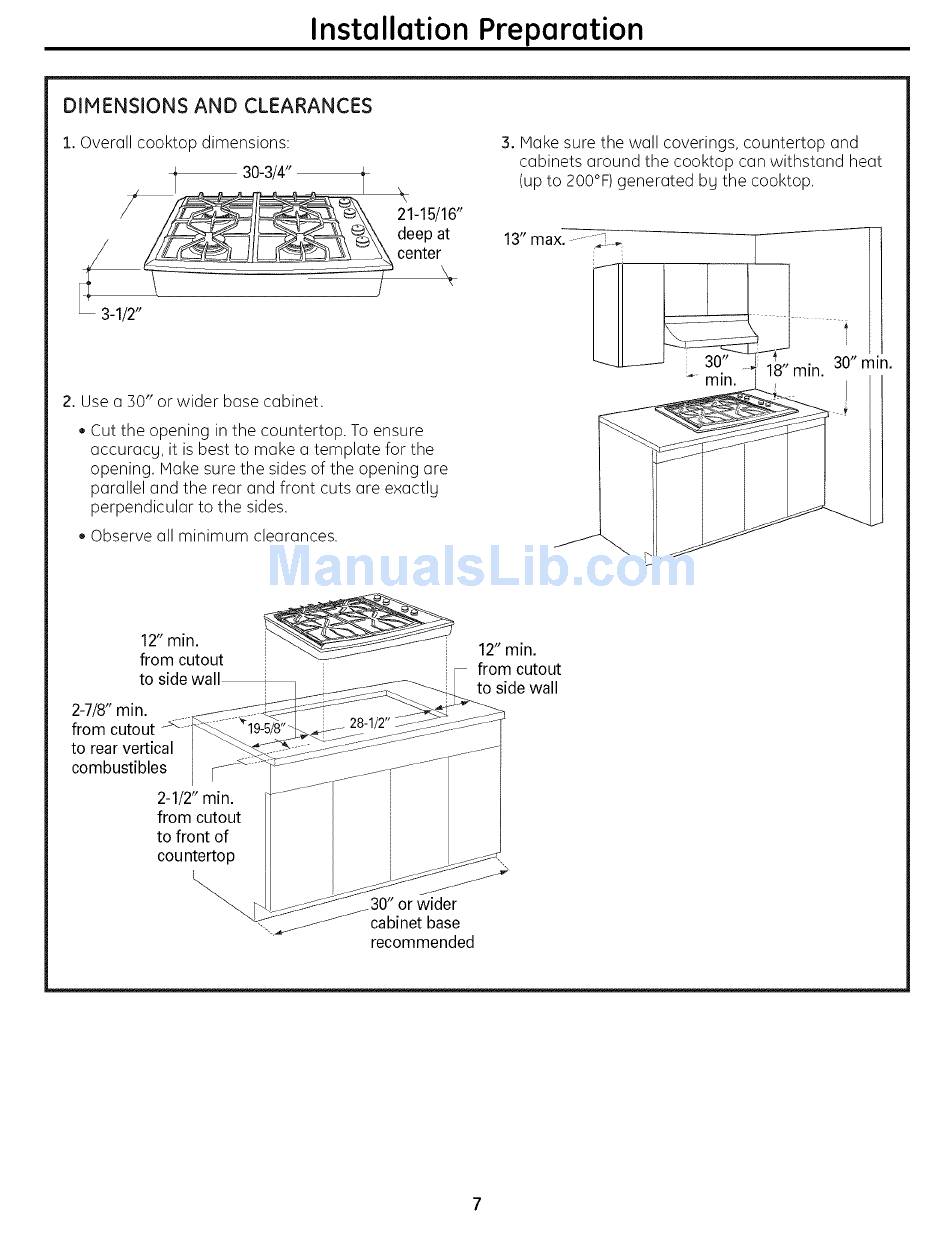

DIMENSIONS AND CLEARANCES
1. Overall cooktop dimensions:
30-3/4"
21-15/16"
deep at
center
\
3. Make sure the wall coverings, countertop and
cabinets around the cooktop can withstand heat
(up to 200°F) generated bg the cooktop.
13" max. - ......
3-1/2"
2. Use a ]0" or wider base cabinet.
• Cut the opening in the countertop. To ensure
accuracg, it is best to make a template for the
opening. Make sure the sides of the opening are
parallel and the rear and front cuts are exactlg
perpendicular to the sides.
Observe all minimum clearances,
30" 30"
18" min. min.
min.
12" min.
from cutout
to side wall
2-7/8" min.
from cutout
to rear vertical
combustibles
2-1/2" min.
from cutout
to front of
cou ntertop
12" min.
from cutout
to side wall
J
/
J
.30" or wider
cabinet base
recommended
