ZGU375NS
36" natural gas cooktop
ZGU375LS
36" LP gas cooktop
For those who prefer gas heat for
cooking, the Monogram built-in
gas stainless steel cooktop offers
the cooking method of choice.

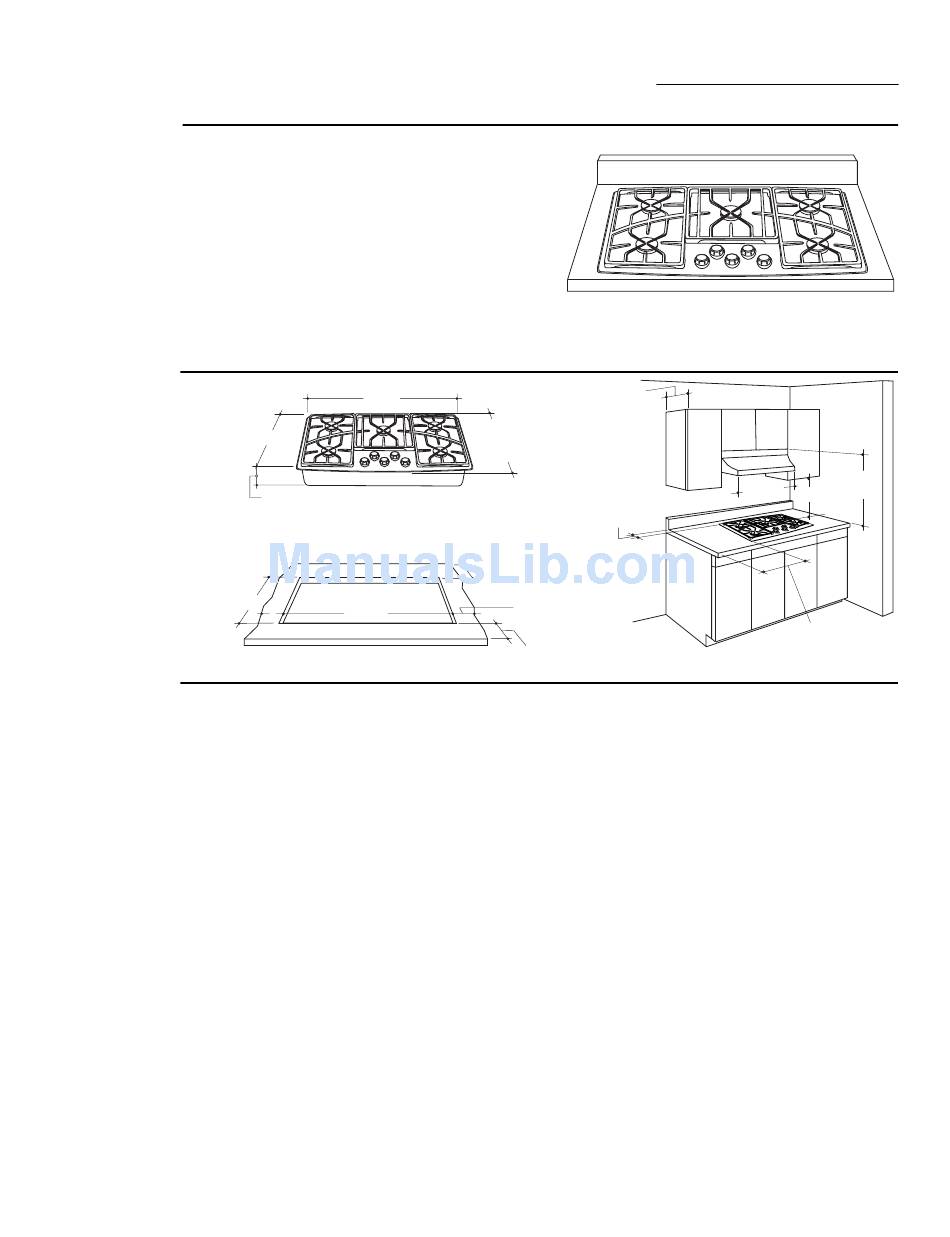

Dimensions
and clearances
18-7/8"
• Refer to "Installation Preparation" for
Advance
planning
• Avoid placing cabinetry directly above
• If cabinetry is used above cooking surface:
36-1/2"
19-3/4"
5-1/2"
35-5/16"
information on appropriate placement
and necessary clearances when planning
installation.
cooktop when possible.
– Use cabinets no more than 13" deep.
– Maintain 30" minimum clearance between
cooktop and unprotected cabinets directly
above cooktop.
– If clearance is less than 30", protect cabinet
bottoms with flame-retardant millboard at
least 1/4" thick, or gysum board at least
3/16" thick, covered with 28 gauge sheet
steel or .02" thick copper.
– Clearance between cooktop and protected
cabinetry must not be less than 24".
– An exhaust hood that projects at least 5"
beyond front of cabinets can reduce risk of
burns caused by reaching over heated
surface units.
– Working areas adjacent to the cooktop
should have 18" minimum clearance
between countertop and cabinet bottom.

Design Information

Stainless Steel G a s Cooktop
These models are factory set for either natural gas or LP
gas operation. Be sure to order the correct model for the
installation situation.
13"
Max.
20-5/8"
Deep
2-3/4" Min.
at Center
From Cooktop
to Vertical
Combustible
Surface When
Installed
3-3/8" Min. From Cutout
to Vertical Combustibles
7-9/16" Min. to
Wall From Cutout
2-3/4" Min.
• Use the Monogram gas stainless steel cook-
top with any 36" or wider exhaust hood with
350 CFM or greater air flow rating.
• Installation must conform with local codes.
In the absence of local codes, the gas cook-
top must comply with the National Fuel Gas
Code, ANSI Z223.1, latest edition.
30"
36" Min.
Min.
18" Min.
7" Min. to Wall
From Cooktop Edge
When Installed Both Sides
3
